Special Tools Required

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Oil seal driver, 65 mm 07JAD-PL90100
Bearing driver attachment, 52 x 55 mm 07746-0010400
Inner bearing driver attachment, 35 mm 07746-0030400
Driver handle, 15 x 135L 07749-0010000

NOTE: Refer to EXPLODED VIEW , as needed, during this procedure.

Clean the disassembled parts with solvent, and dry them with compressed air.
NOTE: Do not wash the rubber parts with solvent.

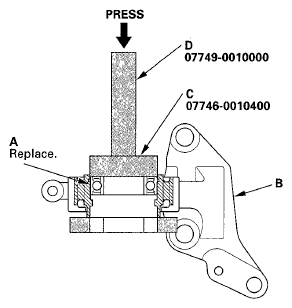

Press a new intermediate shaft bearing (A) into the bearing support (B) using the 52 x 55 mm bearing driver attachment (C), the 15 x 135L driver handle (D), and a press.

Fig 1: Pressing Intermediate Shaft Bearing Into Bearing Support Using Bearing Driver Attachment & Driver Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.

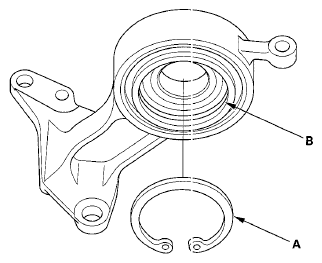

Install the internal snap ring (A) into the groove (B) of the bearing support.

Fig 2: Identifying Internal Snap Ring Into Groove Of Bearing Support
Courtesy of AMERICAN HONDA MOTOR CO., INC.

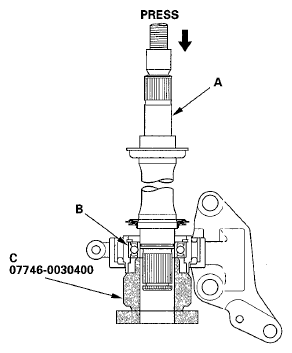

Press the intermediate shaft (A) into the new shaft bearing (B) using the 35 mm inner bearing driver attachment (C) and a press.

Fig 3: Pressing Intermediate Shaft Into Shaft Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the external snap ring (A) in the groove of the intermediate shaft (B).

Fig 4: Identifying External Snap Ring In Groove Of Intermediate Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

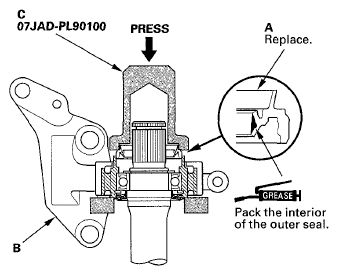

Install a new outer seal (A) into the bearing support (B) using the 65 mm oil seal driver (C) and a press. Press the seal until it is 0 ± 0.2 mm (0 ± 0.008 in.) below the surface of the bearing support end.

Fig 5: Identifying Outer Seal & Bearing Support
Courtesy of AMERICAN HONDA MOTOR CO., INC.
