Special Tools Required

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Half shaft base 07NAF-SR30101
Oil seal driver, 44.5 mm 07947-SB00100

Remove the outer seal (A) and the external snap ring (B) from the intermediate shaft (C).

Fig 1: Identifying Outer Seal, External Snap Ring & Intermediate Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

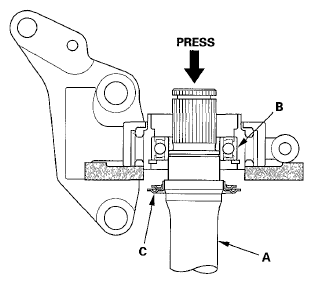

Press the intermediate shaft (A) out of the intermediate shaft bearing (B) using a press. Be careful not to damage the bearing support ring (C) on the intermediate shaft during disassembly.

Fig 2: Pressing Intermediate Shaft Bearing Out Of Intermediate Shaft Bearing Using Press
Courtesy of AMERICAN HONDA MOTOR CO., INC.

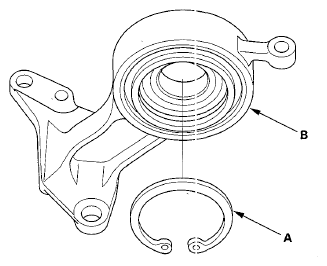

Remove the internal snap ring (A) from the bearing support (B).

Fig 3: Identifying Internal Snap Ring & Bearing Support
Courtesy of AMERICAN HONDA MOTOR CO., INC.

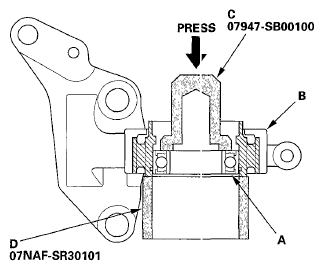

Press the intermediate shaft bearing (A) out of the bearing support (B) using the 44.5 mm oil seal driver (C), the half shaft base (D), and a press.

Fig 4: Pressing Intermediate Shaft Bearing Out Of Bearing Support Using Oil Seal Driver, Half Shaft Base & Press
Courtesy of AMERICAN HONDA MOTOR CO., INC.
