Driveshaft Inspection

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the inboard boot (A) and the outboard boot (B) on the driveshaft (C) for cracks, damage, leaking grease, and loose boot bands (D). If any damage is found, replace the boot and the boot bands.

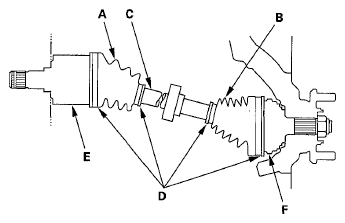

    Fig 1: Identifying Inboard Boot & Outboard Boot On Driveshaft
    G05958825Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Check the driveshaft for cracks and damage. If any damage is found, replace the driveshaft.
  3. Check the inboard joint (E) and the outboard joint (F) for cracks and damage. If any damage is found, replace the inboard joint or the outboard joint as an assembly.
  4. Hold the inboard joint, and turn the front wheel by hand. Make sure the joint is not excessively loose. If necessary, replace the inboard joint or the outboard joint as an assembly.
