Outboard Joint Side

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

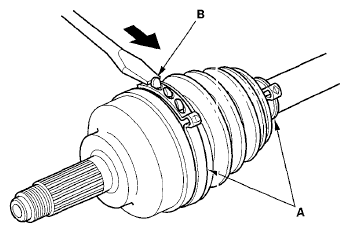

Remove the boot bands (A). Lift up the three tabs (B) with a screwdriver, then release the band. Be careful not to damage the boot.

Fig 1: Identifying Boot Bands
Courtesy of AMERICAN HONDA MOTOR CO., INC.

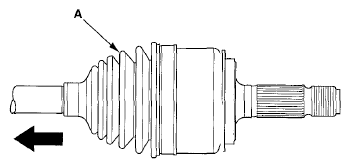

Slide the outboard boot (A) partially to the inboard joint side. Be careful not to damage the boot.

Fig 2: Identifying Outboard Boot
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Wipe off the grease to expose the driveshaft and the outboard joint inner race.
Make a mark (A) on the driveshaft (B) at the same level as the outboard joint end (C).

Fig 3: Identifying Mark On Driveshaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Securely clamp the driveshaft in a bench vise with a shop towel.

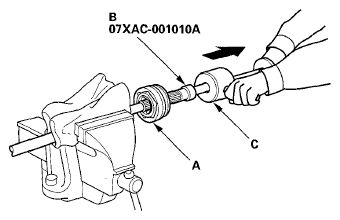

Remove the outboard joint (A) using the 22 x 1.5 mm threaded adapter (B) and a commercially available 5/8"-18 UNF slide hammer (C).

Fig 4: Identifying Outboard Joint Threaded Adapter
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the driveshaft from the bench vise.

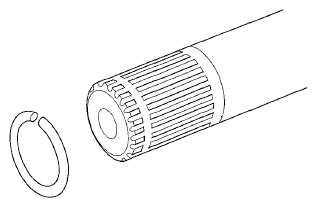

Remove the stop ring from the driveshaft.

Fig 5: Identifying Stop Ring & Driveshaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

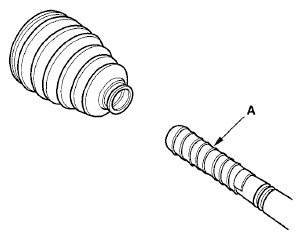

Wrap the splines on the driveshaft with vinyl tape (A) to prevent damaging the boot.

Fig 6: Identifying Vinyl Tape To Boot
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the outboard boot. Be careful not to damage the boot.
Remove the vinyl tape.
