Wiring Diagram - METER -

For connector terminal arrangements, harness layouts, and alphabets in a "diamond shape" (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

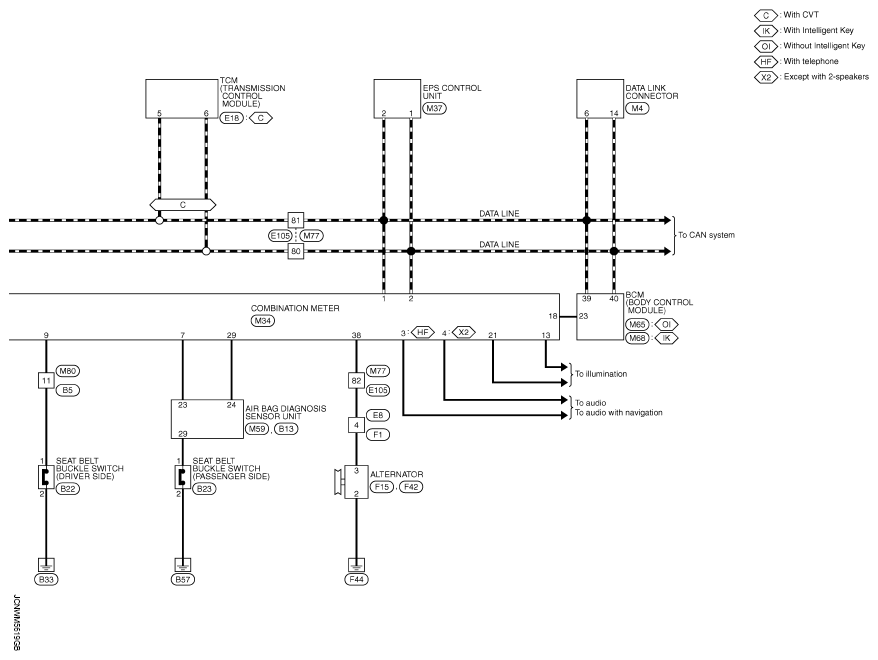

Fig 1: Meter Wiring Diagram (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

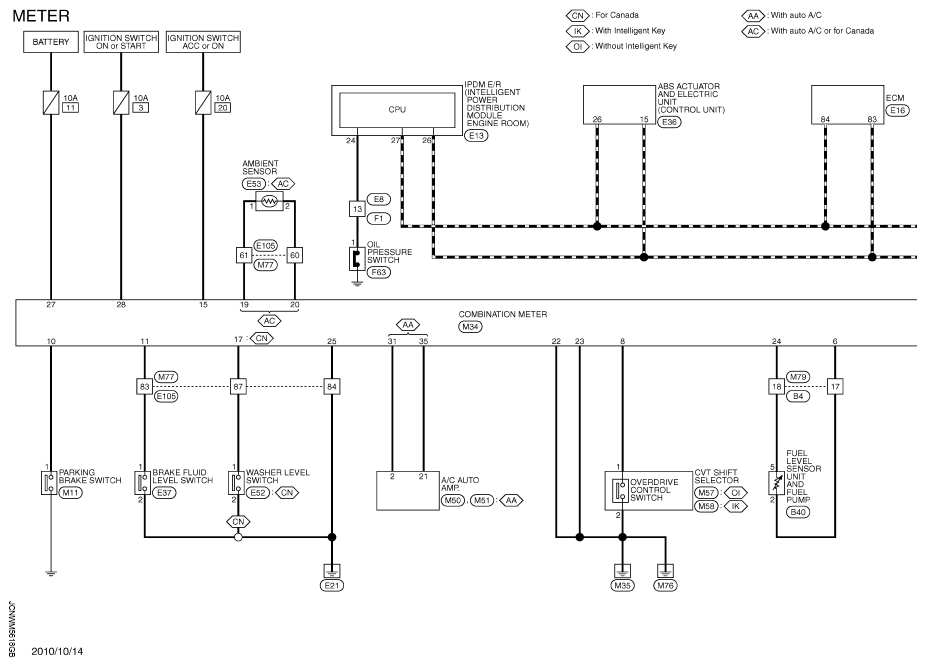

Fig 2: Meter Wiring Diagram (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
