Section 5 (Door & Lock (Coupe))
>>
Wiring Diagram
>>
Power Door Lock System
>>
Wiring Diagram - Coupe
Wiring Diagram - Coupe
WARNING:
This page is about a different variant/trim than selected.

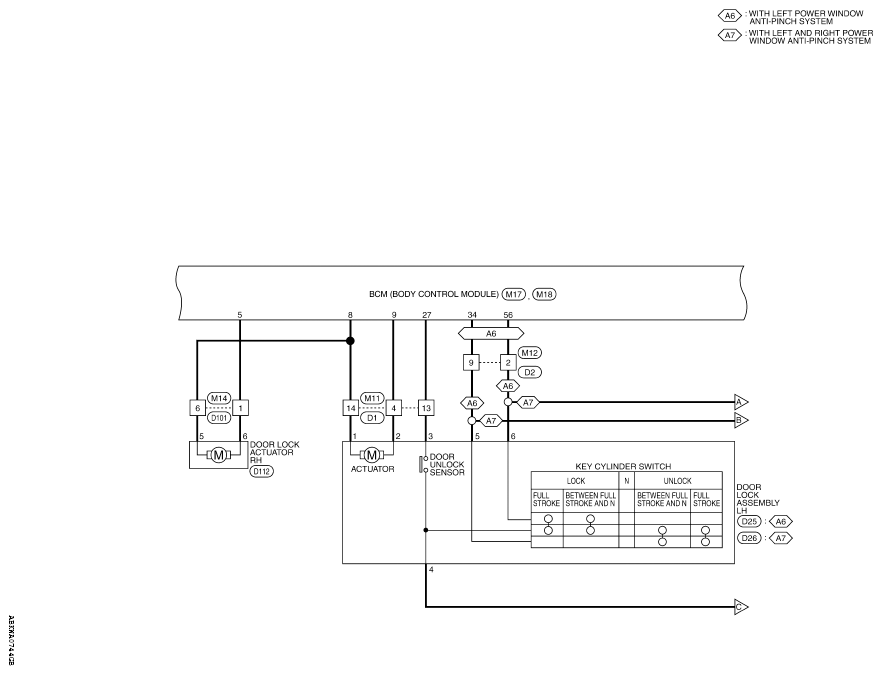

Fig 1: Power Door Lock System - Coupe - Wiring Diagram (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

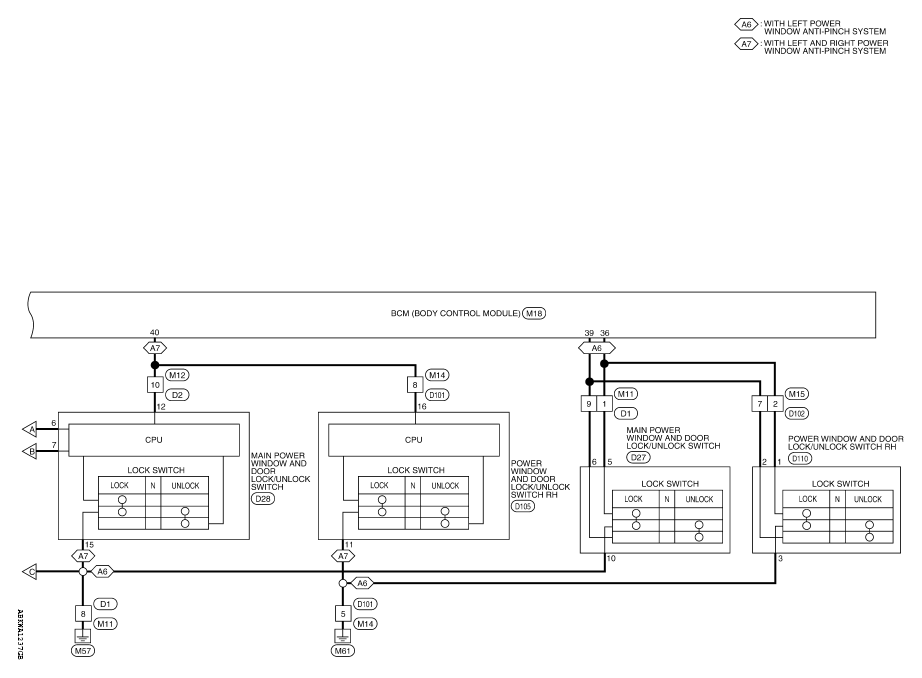

Fig 2: Power Door Lock System - Coupe - Wiring Diagram (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Power Door Lock System - Coupe - Wiring Diagram (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
