Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
Power Control System (IPDM E/R)
>>
Wiring Diagram
>>
IPDM E/R (Intelligent Power Distribution Module Engine Room)
>>
Wiring Diagram - Sedan
Wiring Diagram - Sedan

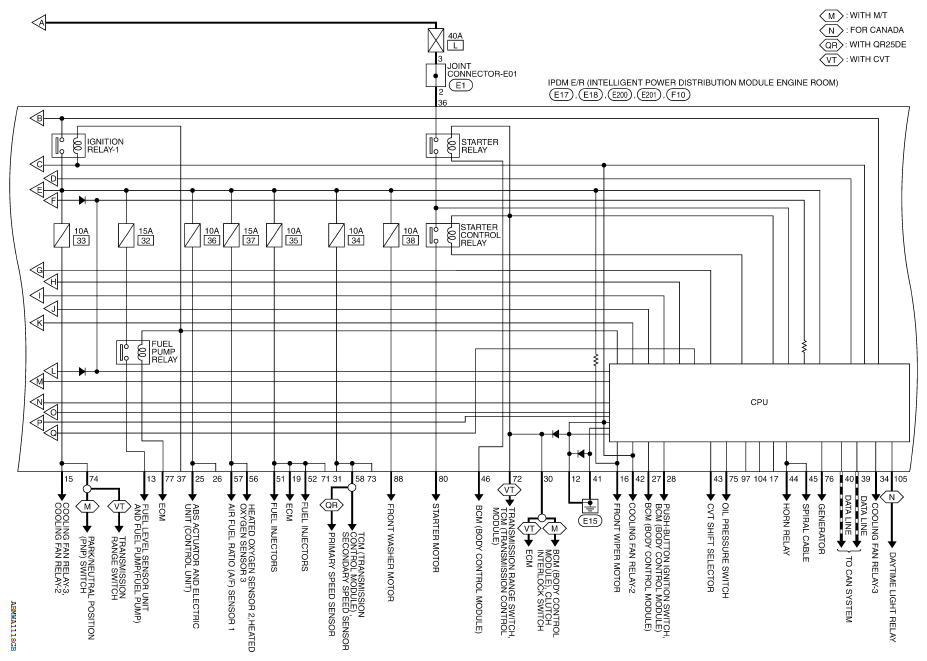

Fig 1: IPDM E/R (Sedan) - Wiring Diagram (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

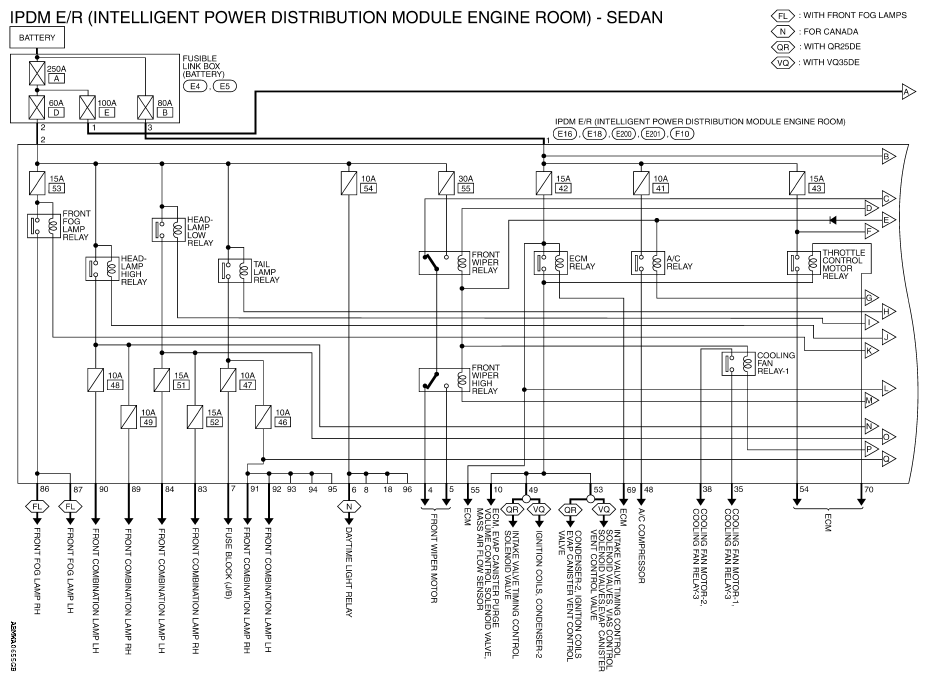

Fig 2: IPDM E/R (Sedan) - Wiring Diagram (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: IPDM E/R (Sedan) - Wiring Diagram (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
