Wiring Diagram - Sedan

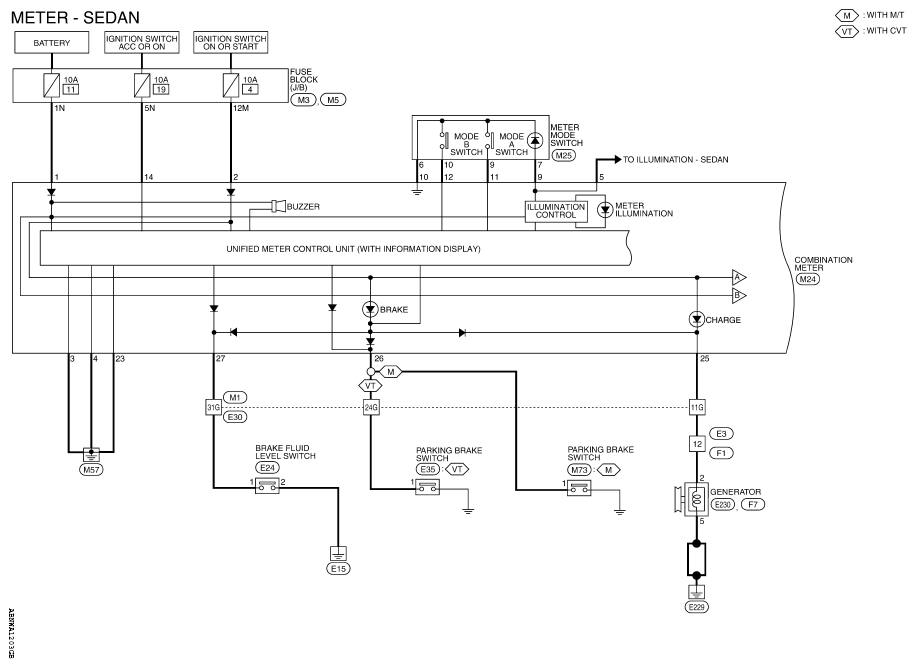

Fig 1: Meter - Wiring Diagram (Sedan) (1 Of 6)

G08116107

Courtesy of NISSAN NORTH AMERICA, INC.

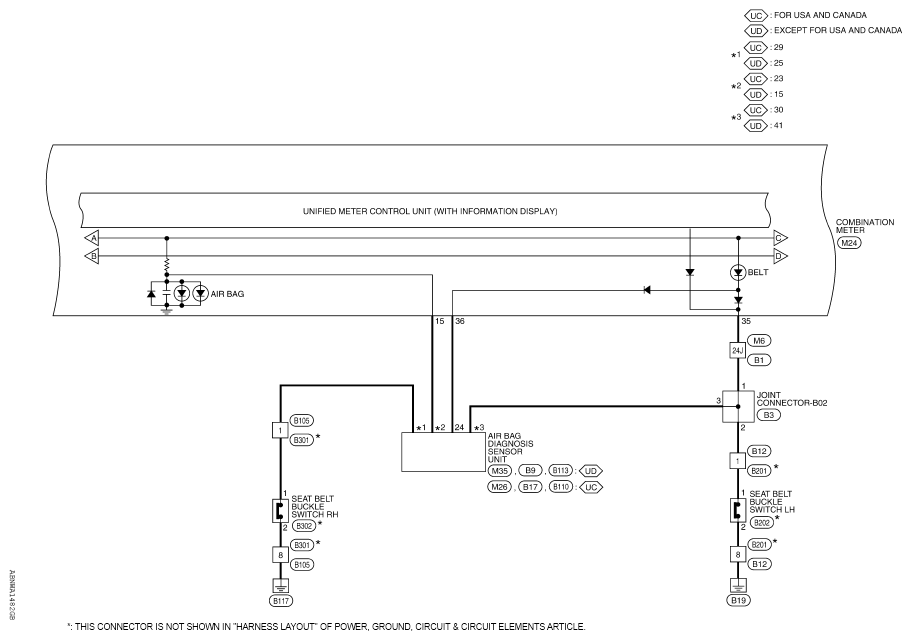

Fig 2: Meter - Wiring Diagram (Sedan) (2 Of 6)

G08442061

Courtesy of NISSAN NORTH AMERICA, INC.

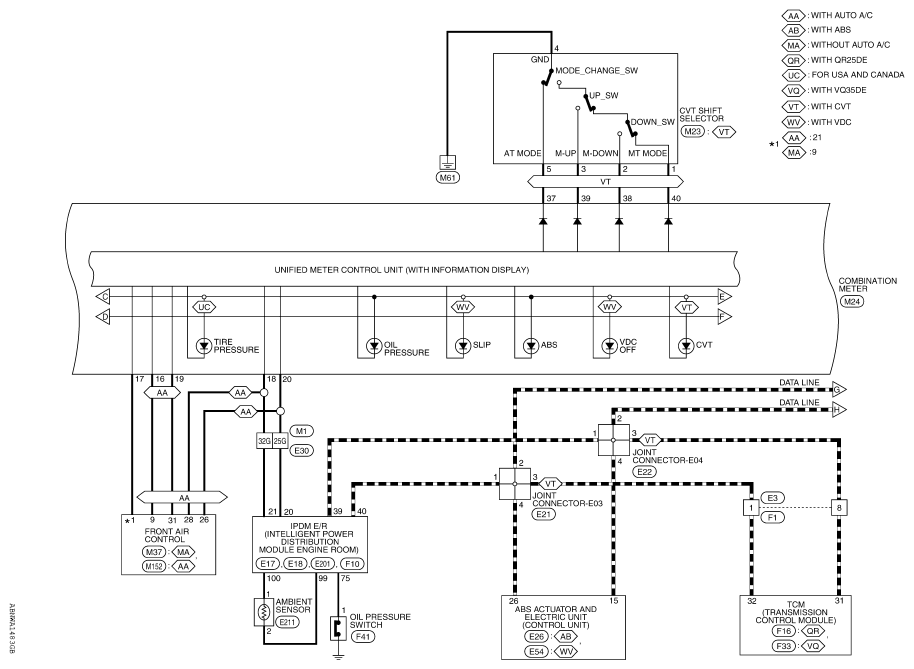

Fig 3: Meter - Wiring Diagram (Sedan) (3 Of 6)

G08442062

Courtesy of NISSAN NORTH AMERICA, INC.

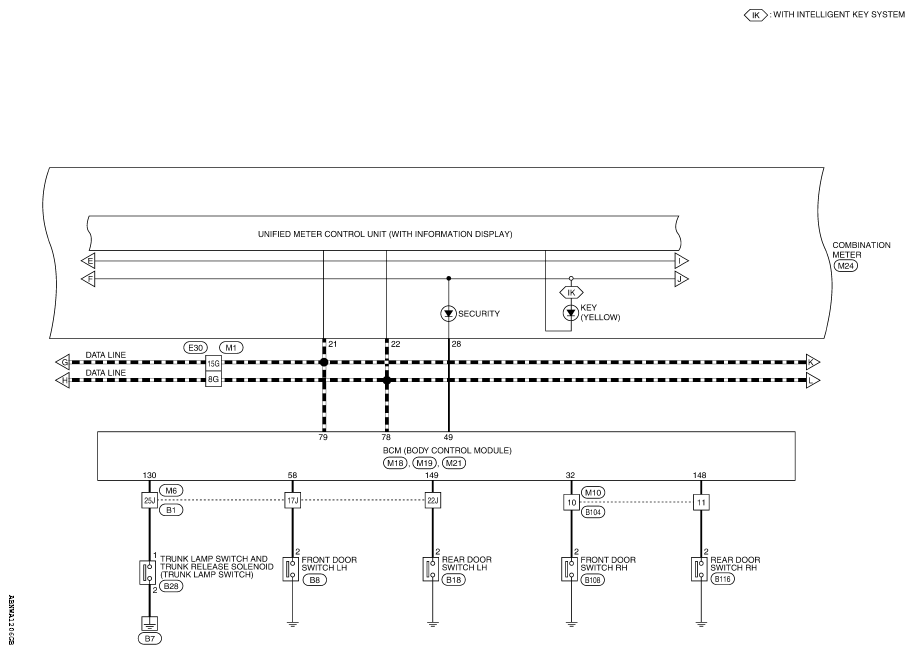

Fig 4: Meter - Wiring Diagram (Sedan) (4 Of 6)

G08116110

Courtesy of NISSAN NORTH AMERICA, INC.

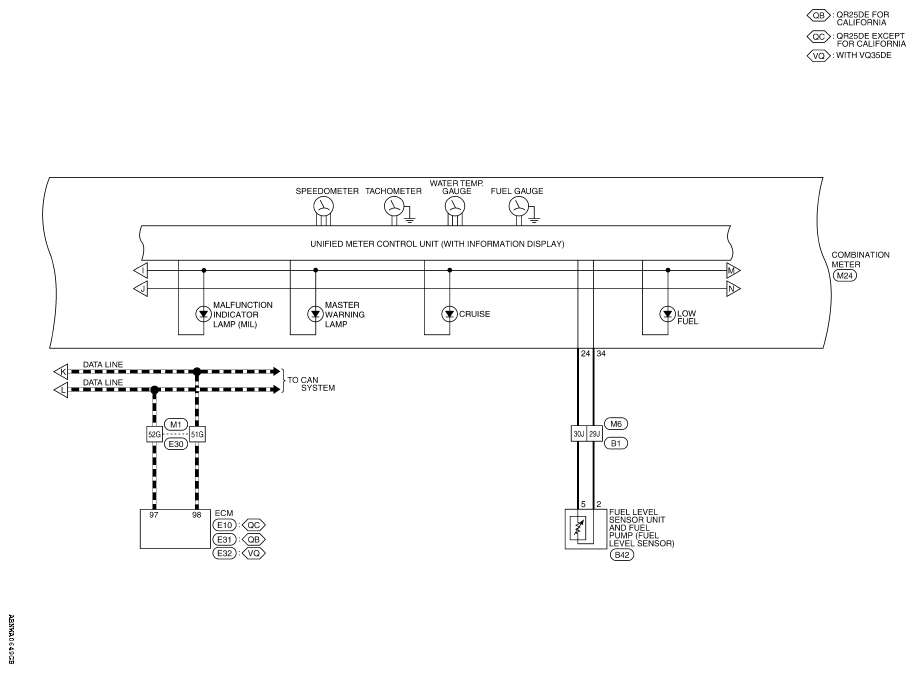

Fig 5: Meter - Wiring Diagram (Sedan) (5 Of 6)

G06561306

Courtesy of NISSAN NORTH AMERICA, INC.

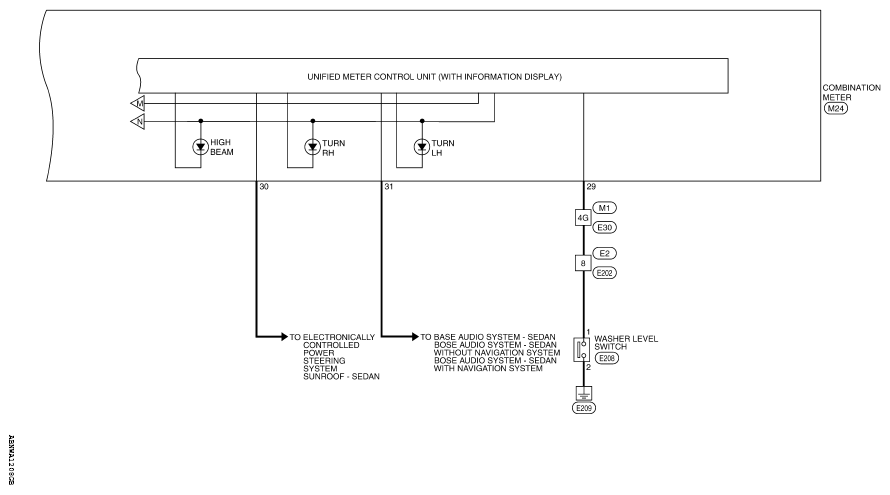

Fig 6: Meter - Wiring Diagram (Sedan) (6 Of 6)

G08116112

Courtesy of NISSAN NORTH AMERICA, INC.
