Wiring Diagram - Coupe

Fig 1: Meter - Wiring Diagram (Coupe) (1 Of 6)

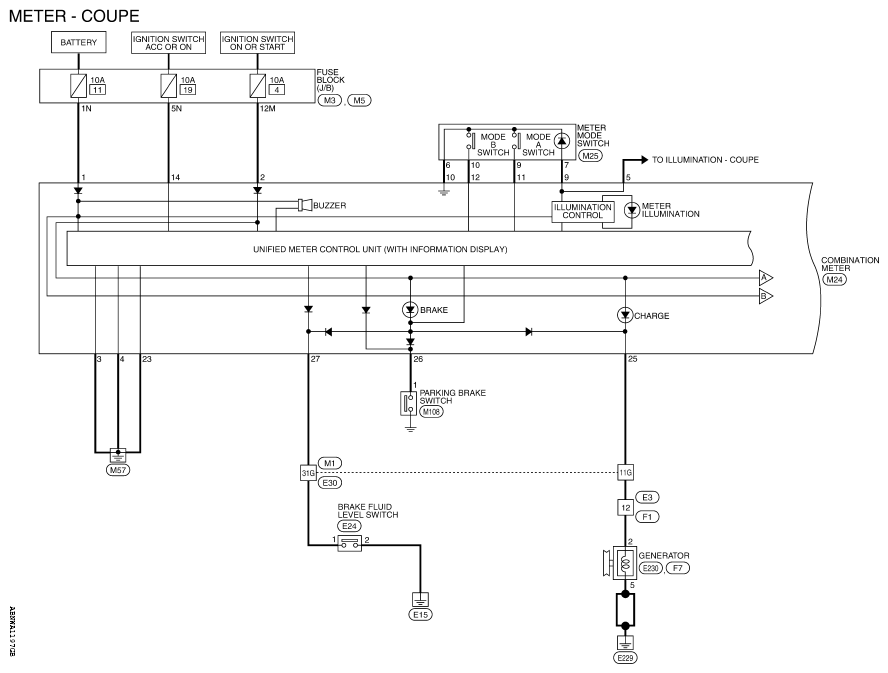

G08116089

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Meter - Wiring Diagram (Coupe) (2 Of 6)

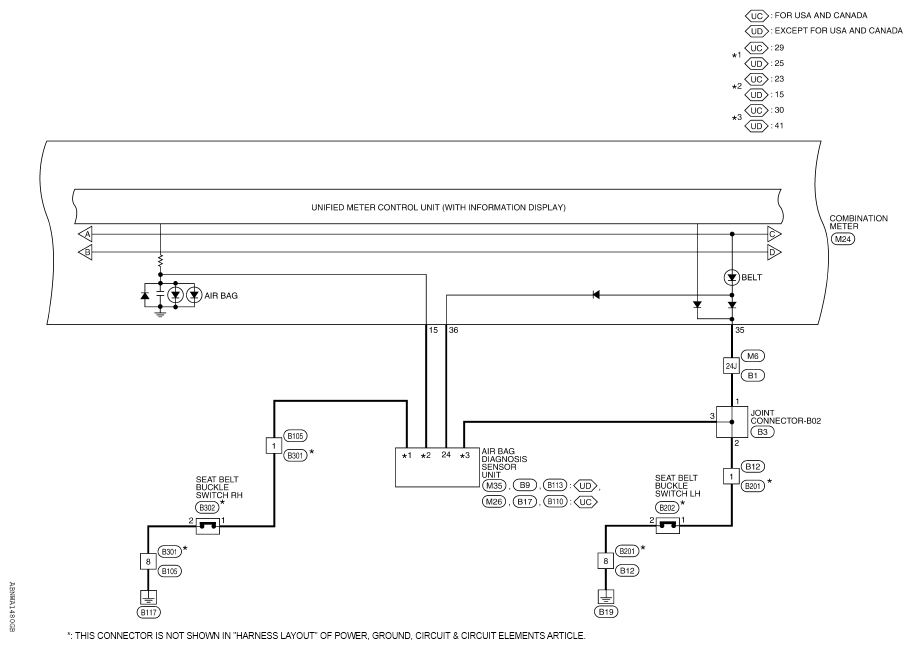

G08442043

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Meter - Wiring Diagram (Coupe) (3 Of 6)

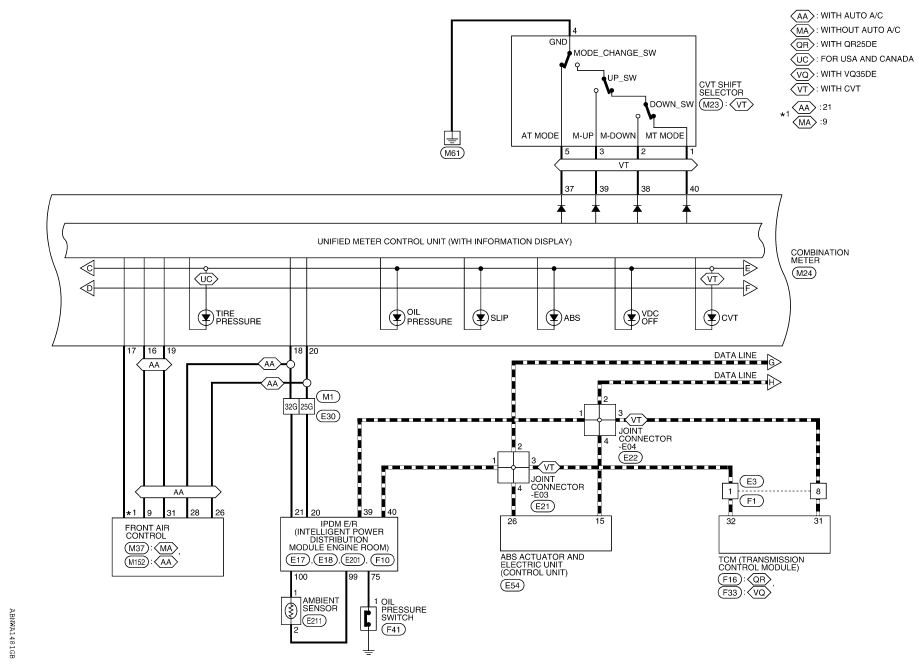

G08442044

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Meter - Wiring Diagram (Coupe) (4 Of 6)

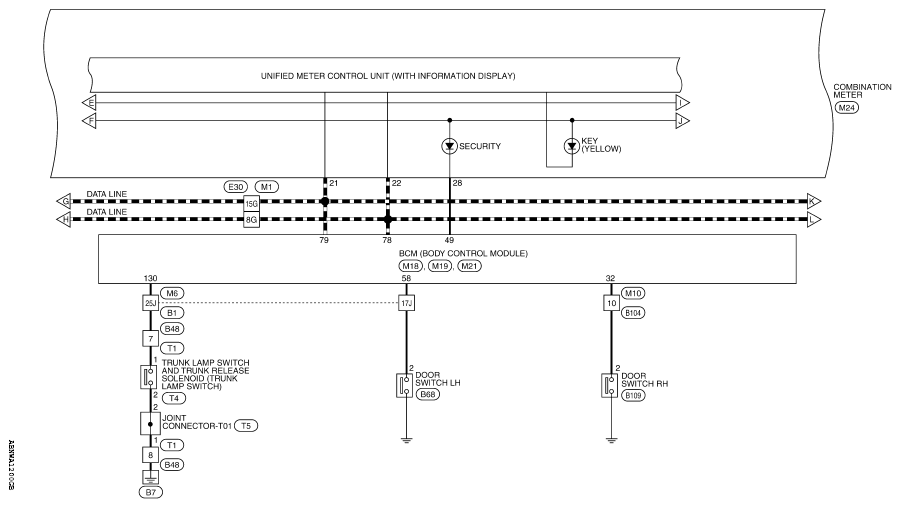

G08116092

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Meter - Wiring Diagram (Coupe) (5 Of 6)

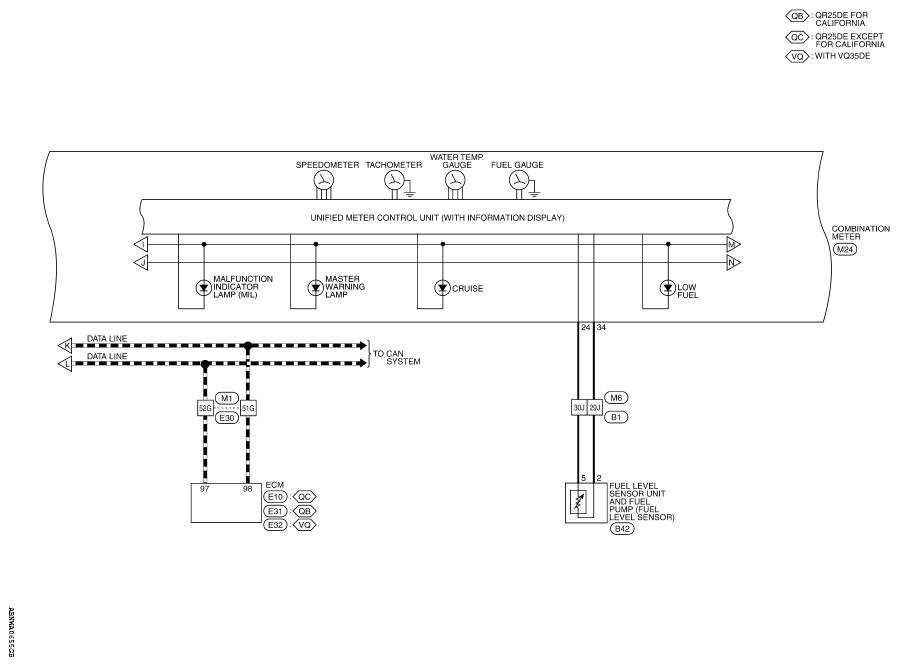

G06561288

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Meter - Wiring Diagram (Coupe) (6 Of 6)

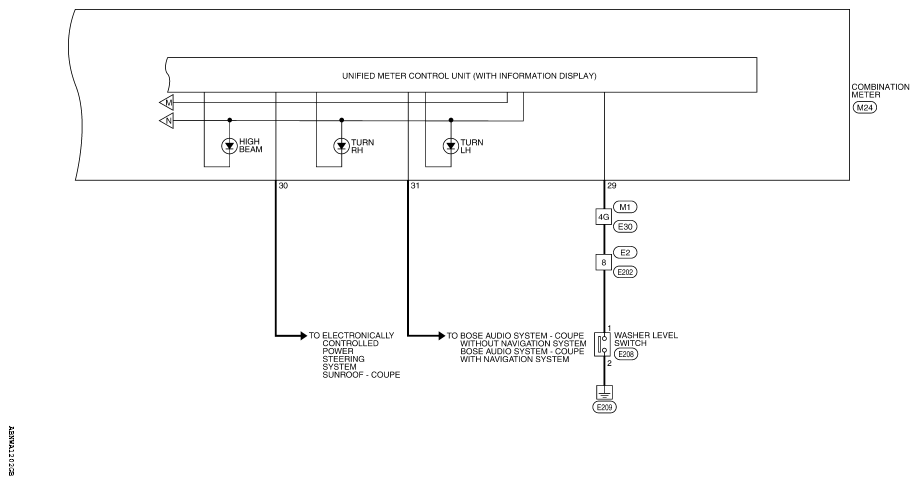

G08116094

Courtesy of NISSAN NORTH AMERICA, INC.
