Wiring Diagram - Sedan With Intelligent Key

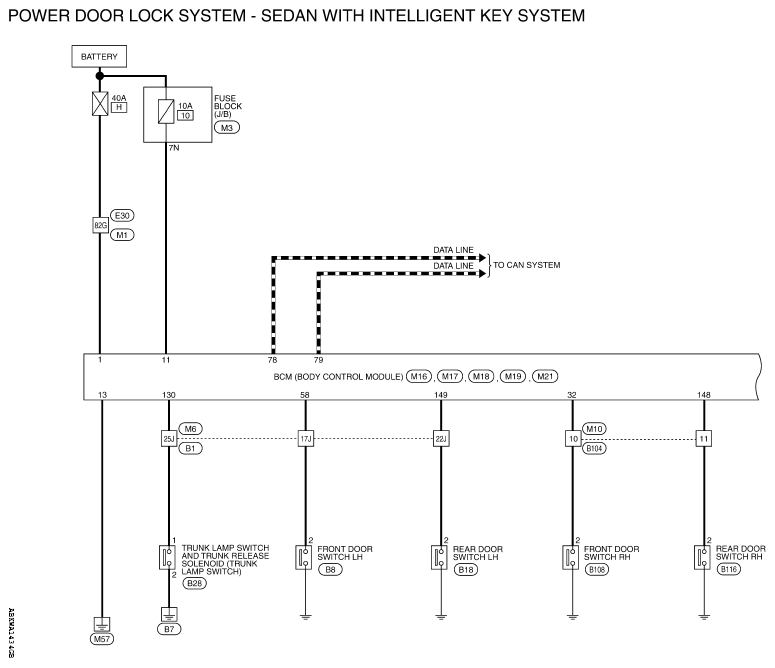

Fig 1: Power Door Lock System - Wiring Diagram (Sedan With Intelligent Key) (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

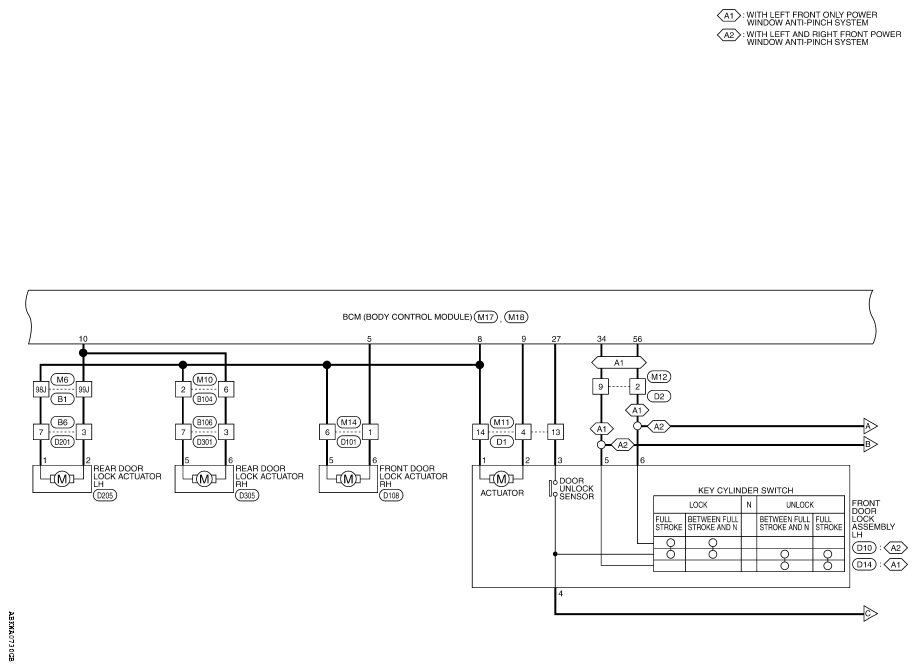

Fig 2: Power Door Lock System - Wiring Diagram (Sedan With Intelligent Key) (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

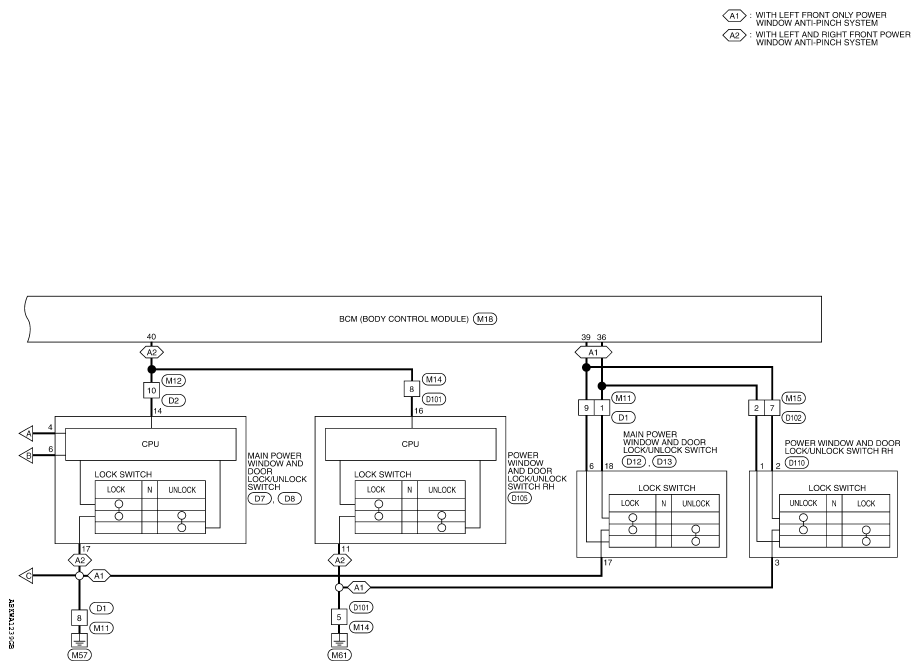

Fig 3: Power Door Lock System - Wiring Diagram (Sedan With Intelligent Key) (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
