Connector Terminal Identification - Sedan

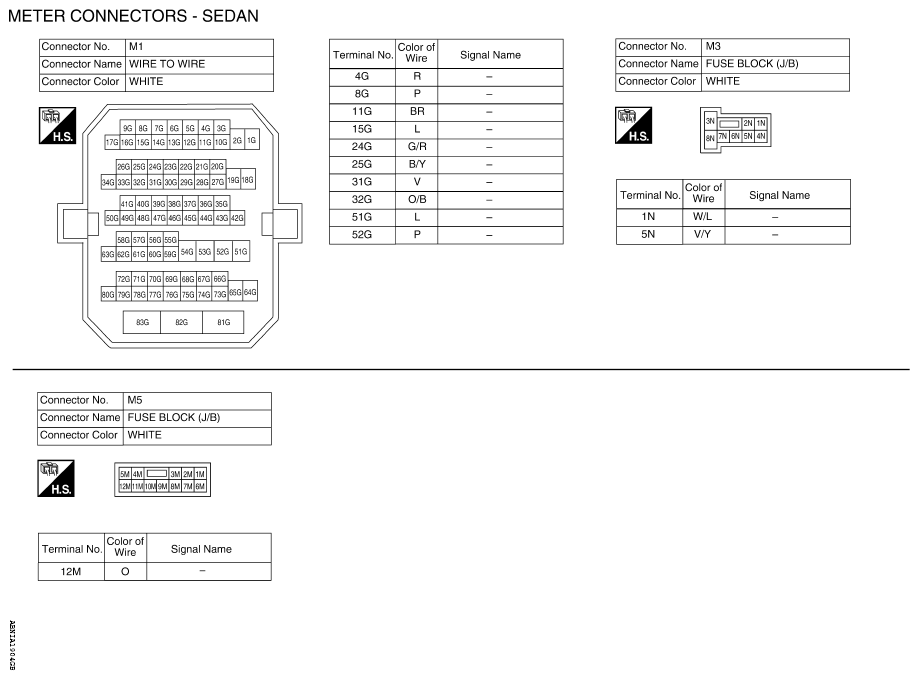

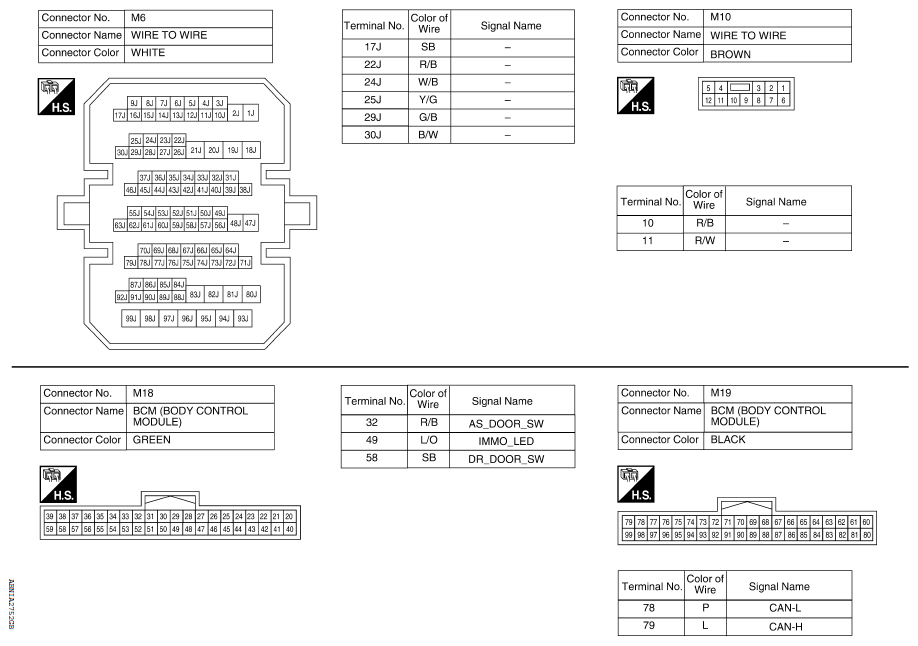

Fig 1: Identifying Meter Connectors - Sedan (1 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

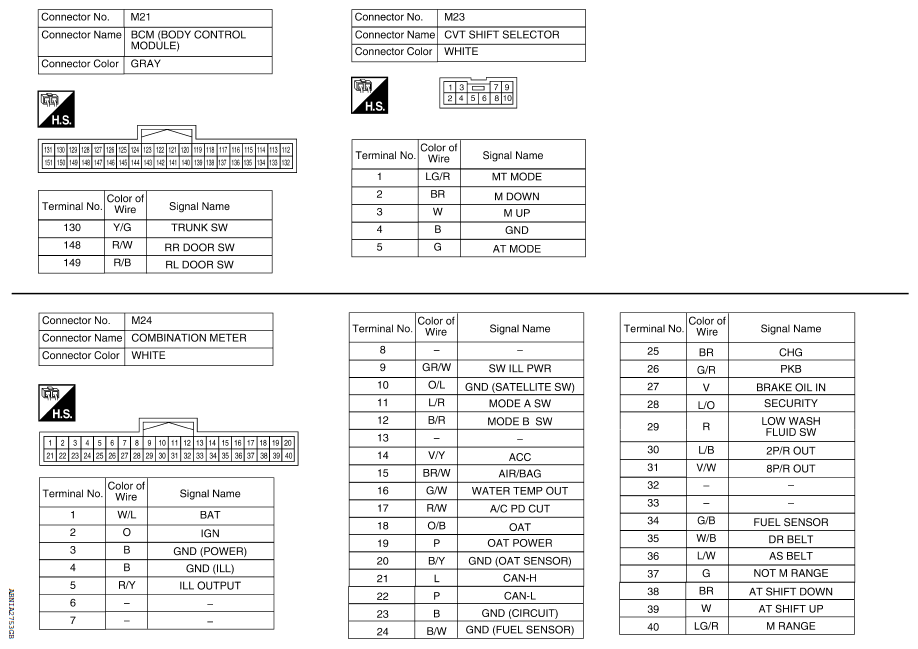

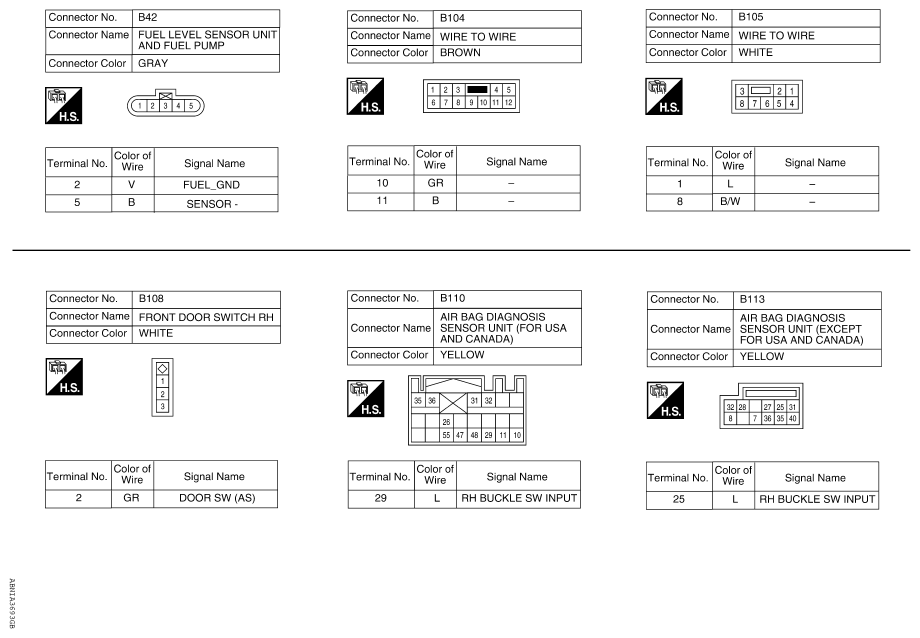

Fig 2: Identifying Meter Connectors - Sedan (2 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

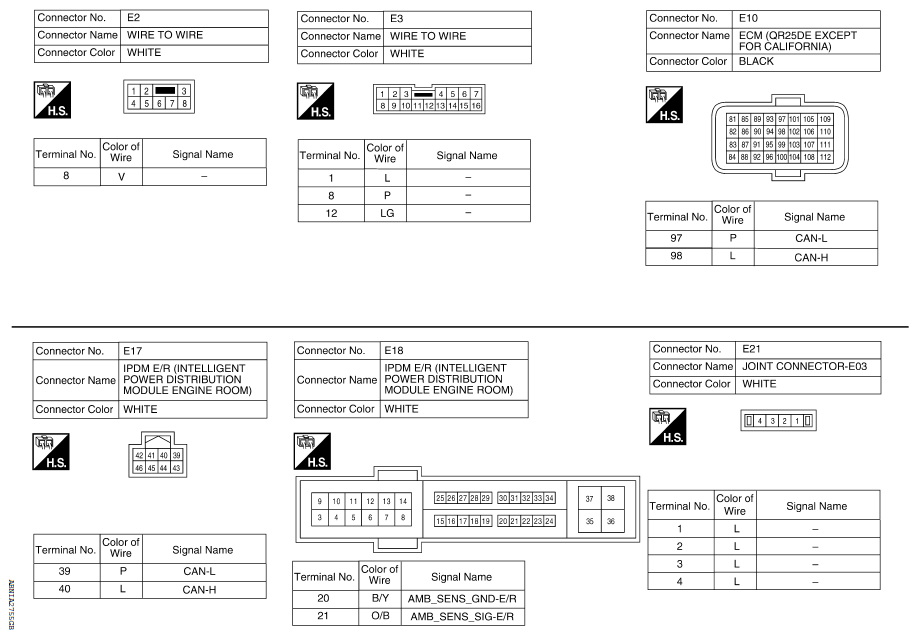

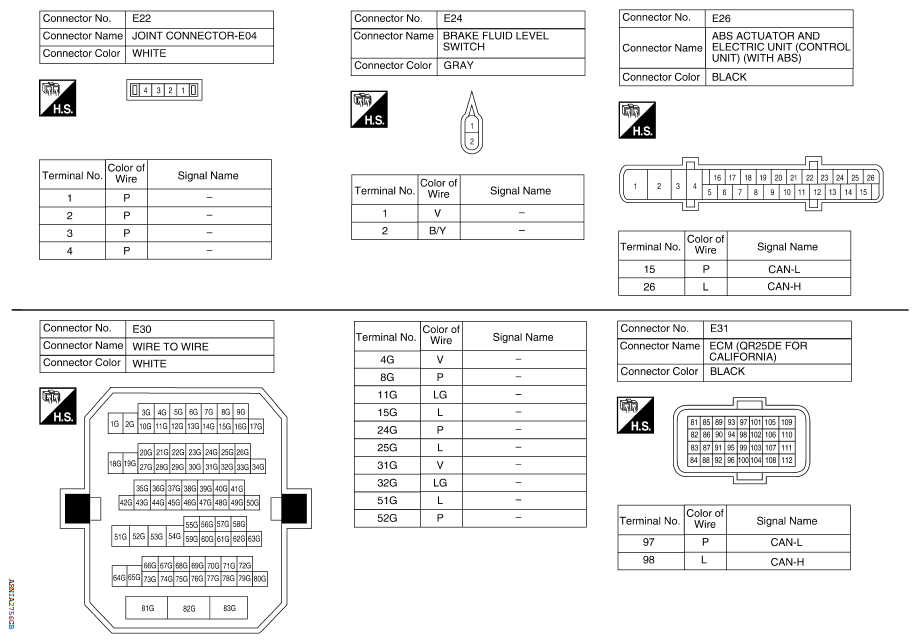

Fig 3: Identifying Meter Connectors - Sedan (3 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

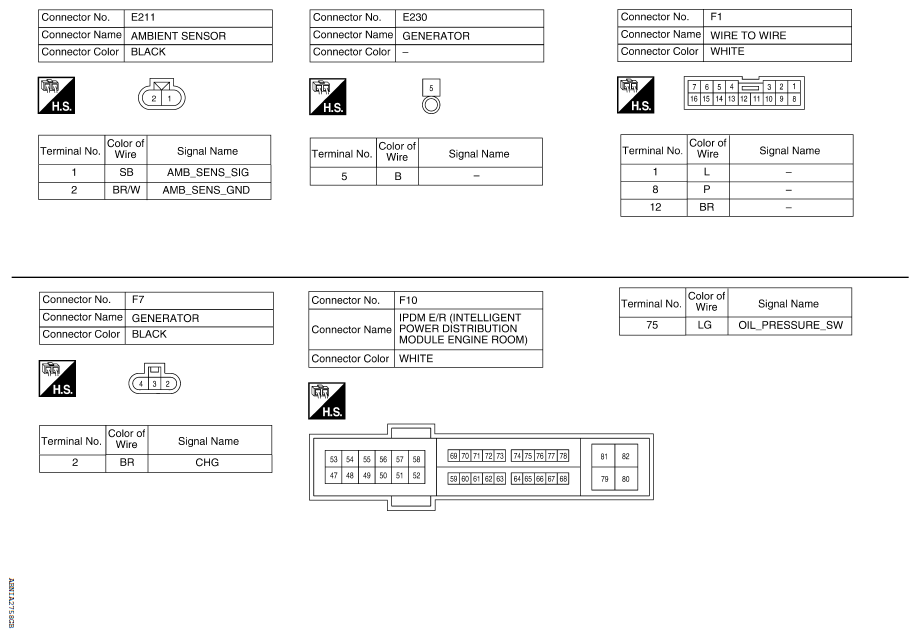

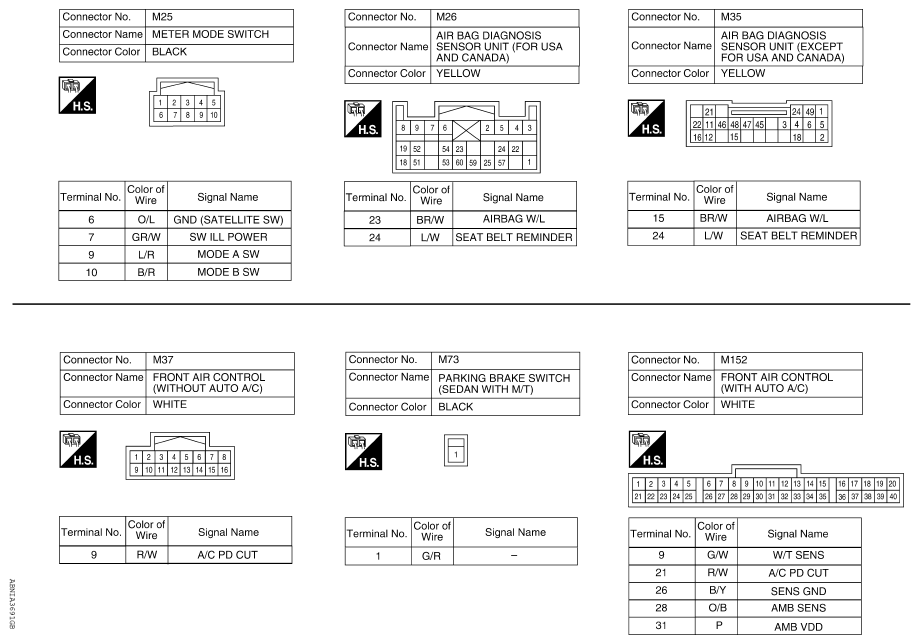

Fig 4: Identifying Meter Connectors - Sedan (4 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

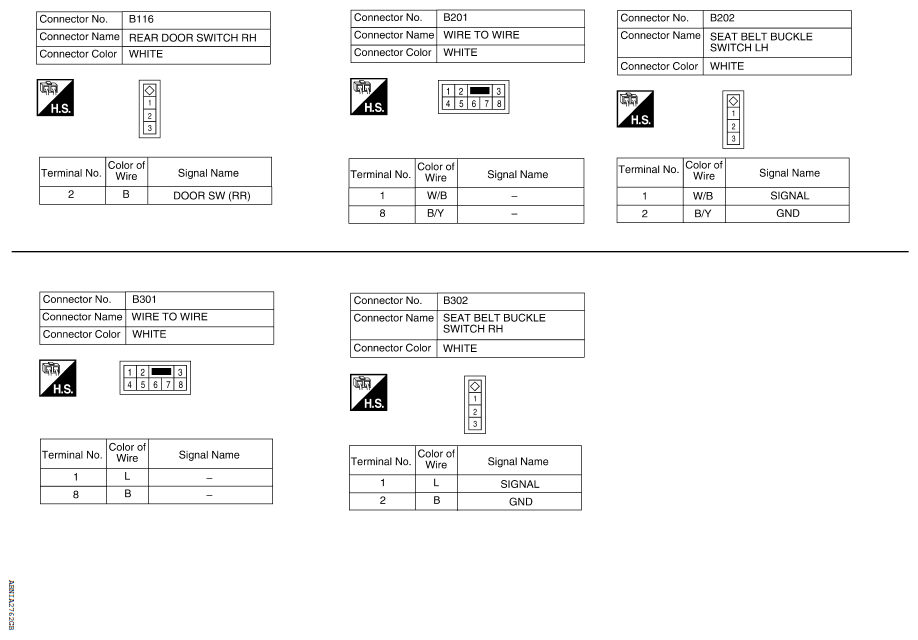

Fig 5: Identifying Meter Connectors - Sedan (5 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

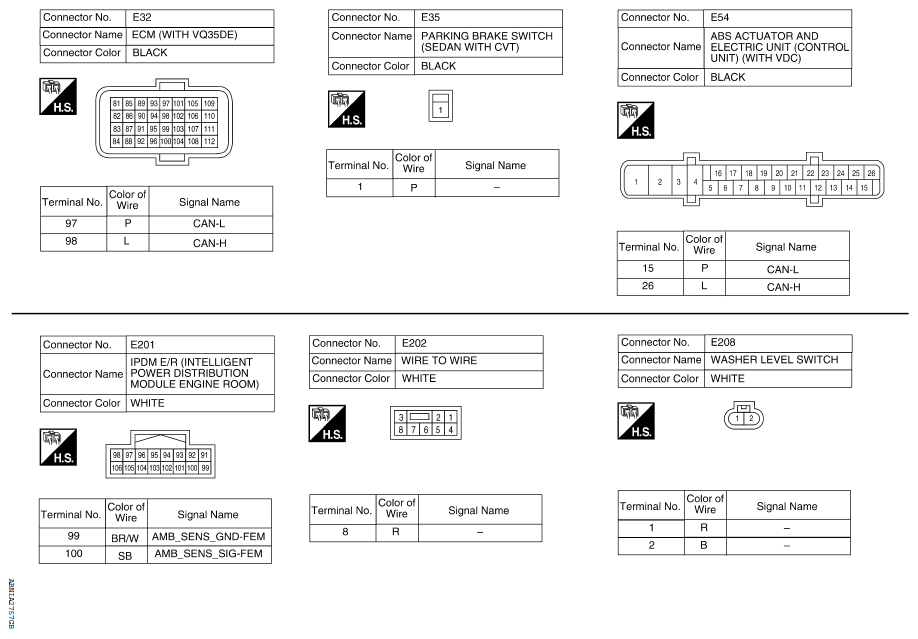

Fig 6: Identifying Meter Connectors - Sedan (6 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

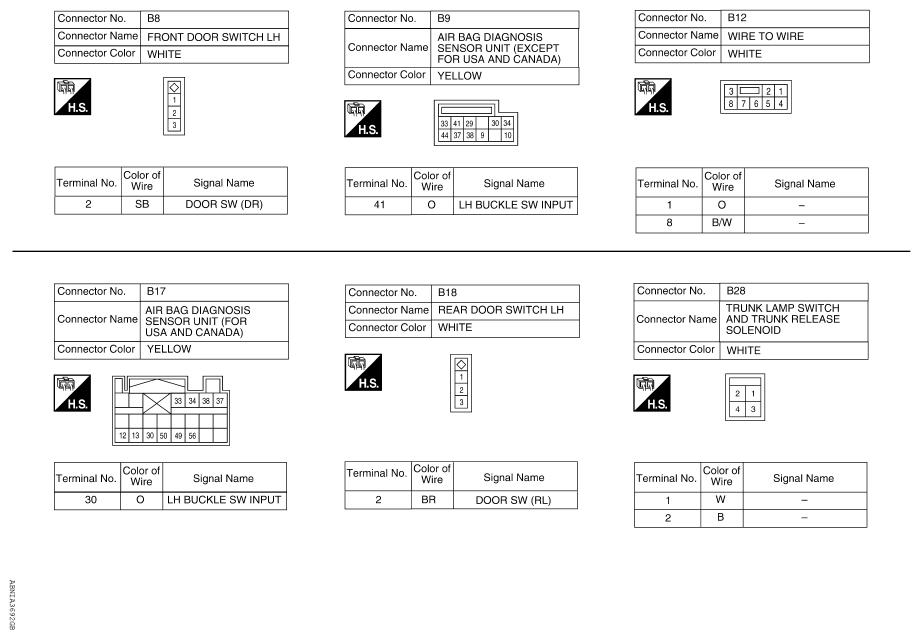

Fig 7: Identifying Meter Connectors - Sedan (7 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

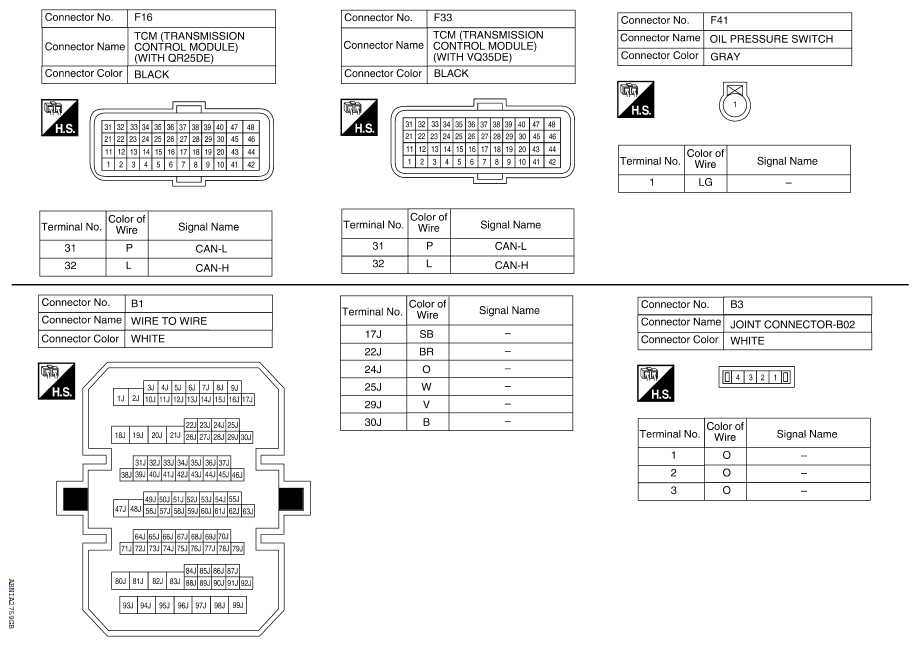

Fig 8: Identifying Meter Connectors - Sedan (8 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Meter Connectors - Sedan (9 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying Meter Connectors - Sedan (10 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Meter Connectors - Sedan (11 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Meter Connectors - Sedan (12 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.
