Connector Terminal Identification - Coupe

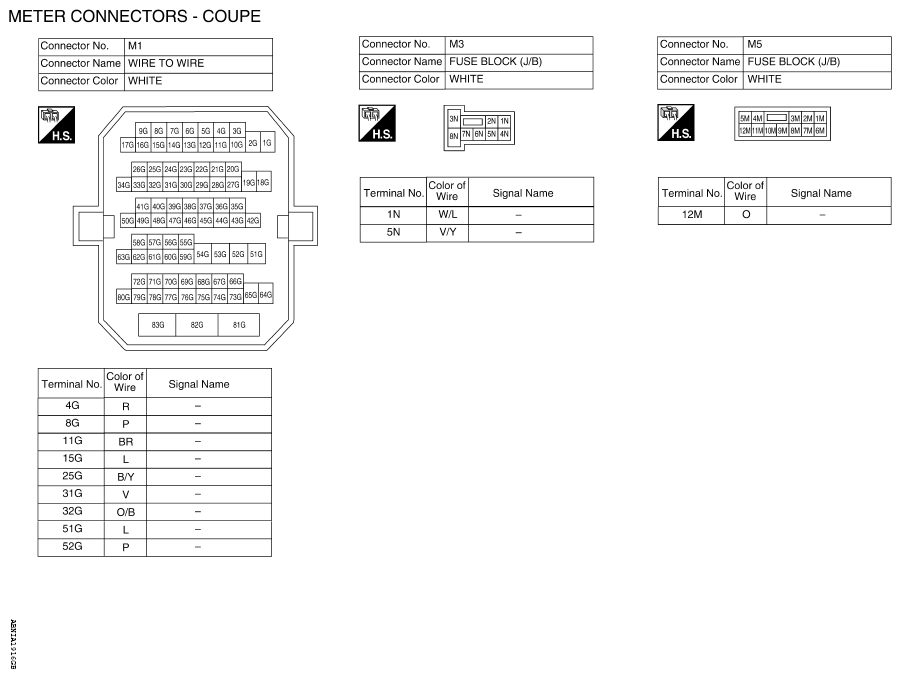

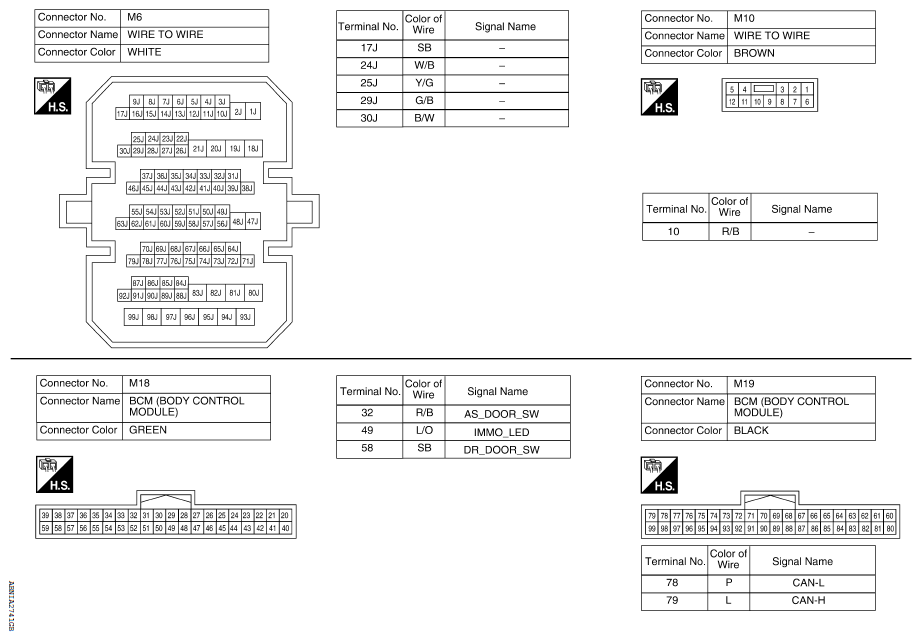

Fig 1: Identifying Meter Connectors - Coupe (1 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

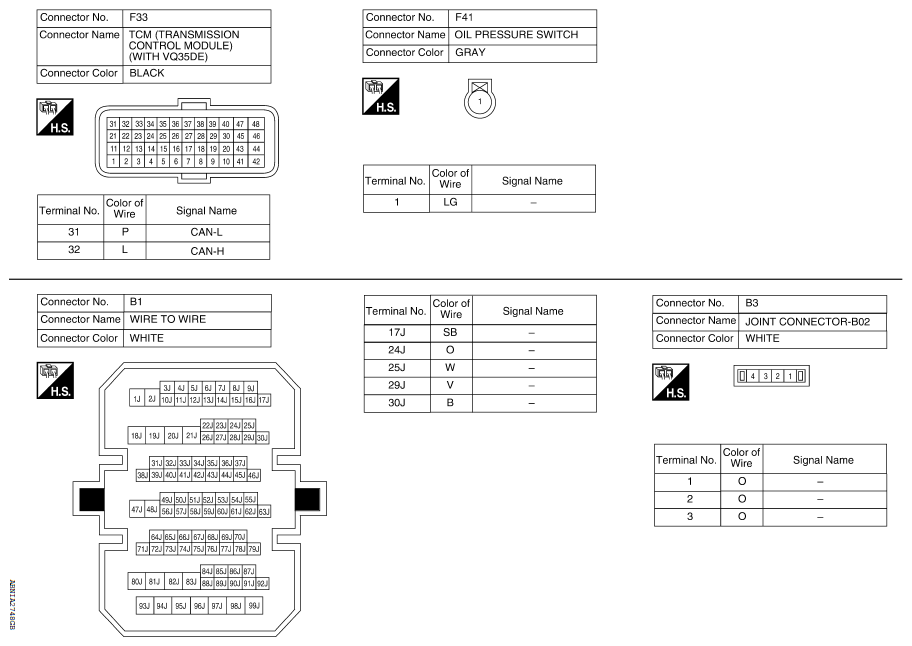

Fig 2: Identifying Meter Connectors - Coupe (2 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

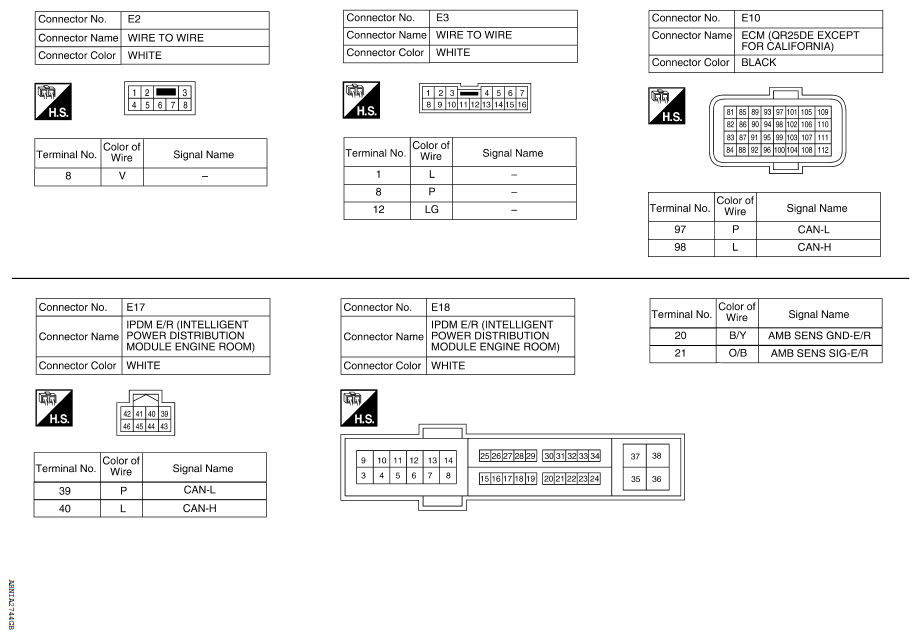

Fig 3: Identifying Meter Connectors - Coupe (3 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

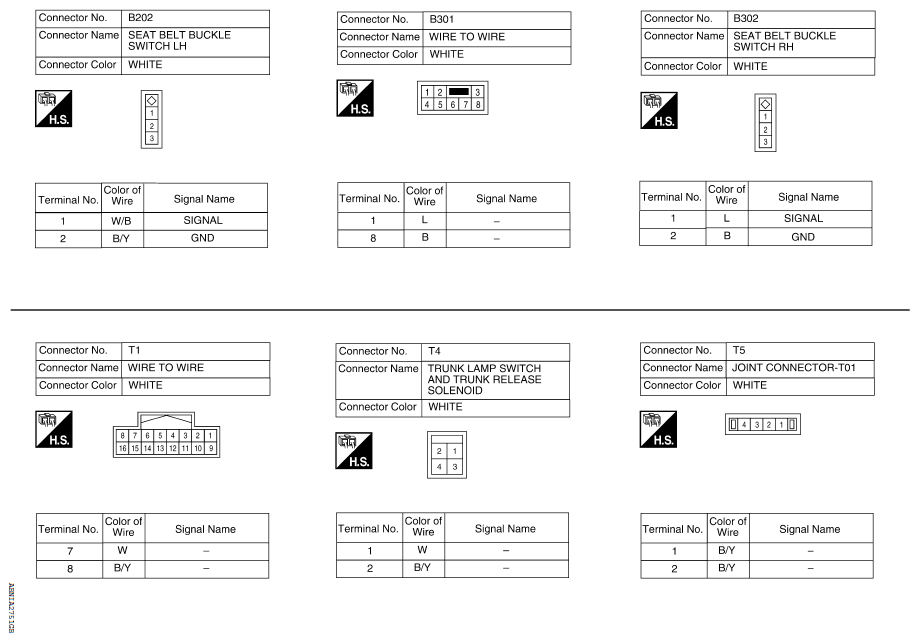

Fig 4: Identifying Meter Connectors - Coupe (4 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

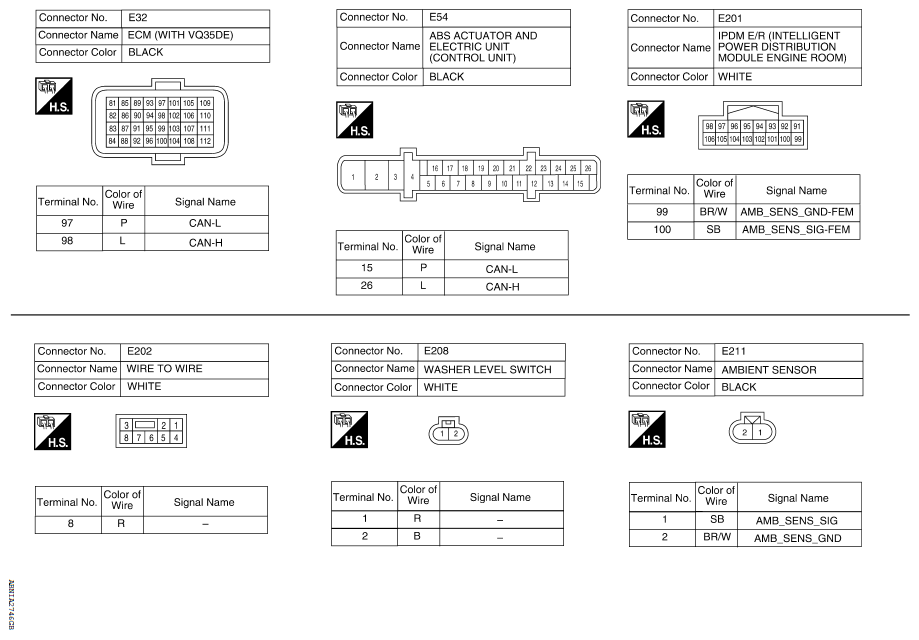

Fig 5: Identifying Meter Connectors - Coupe (5 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

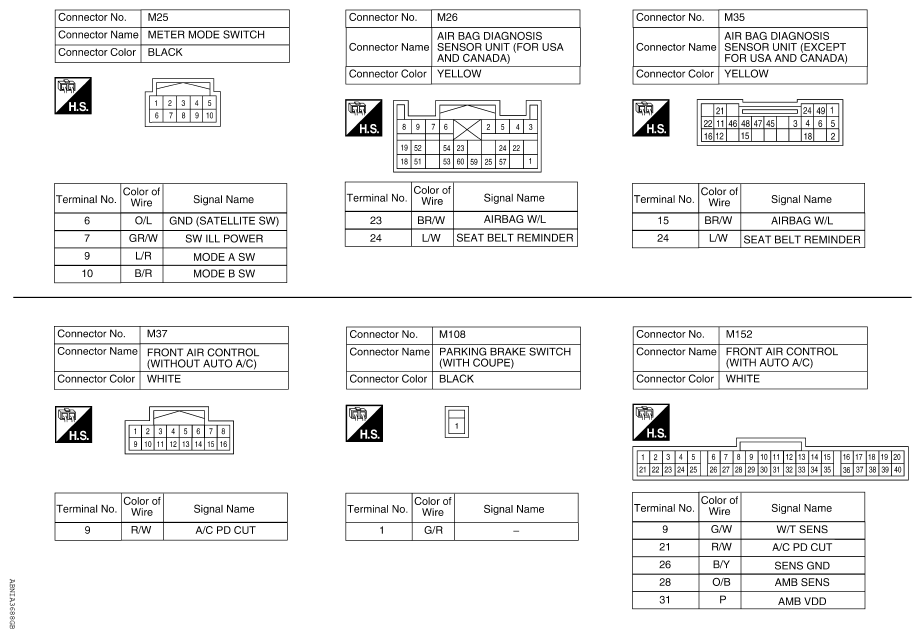

Fig 6: Identifying Meter Connectors - Coupe (6 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

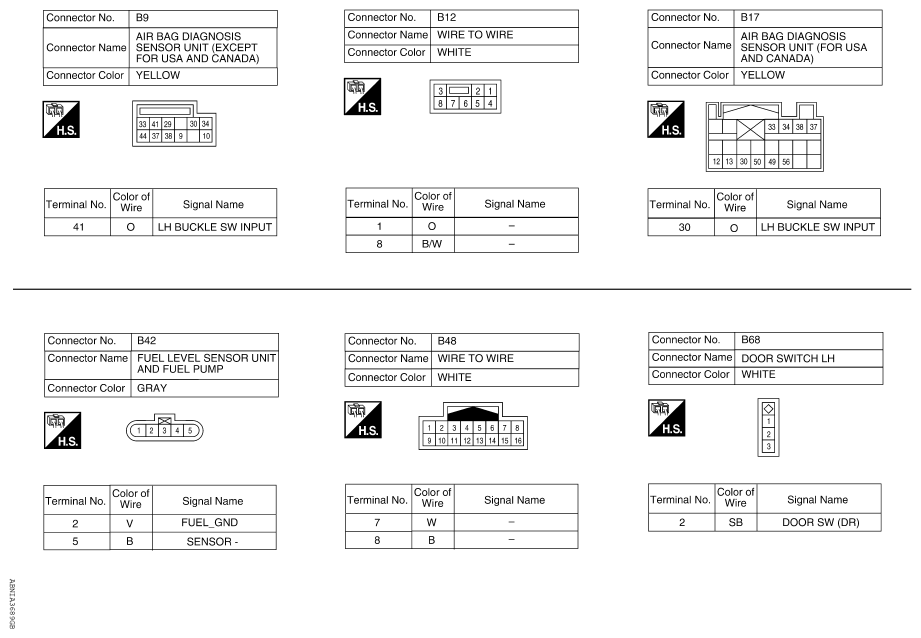

Fig 7: Identifying Meter Connectors - Coupe (7 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

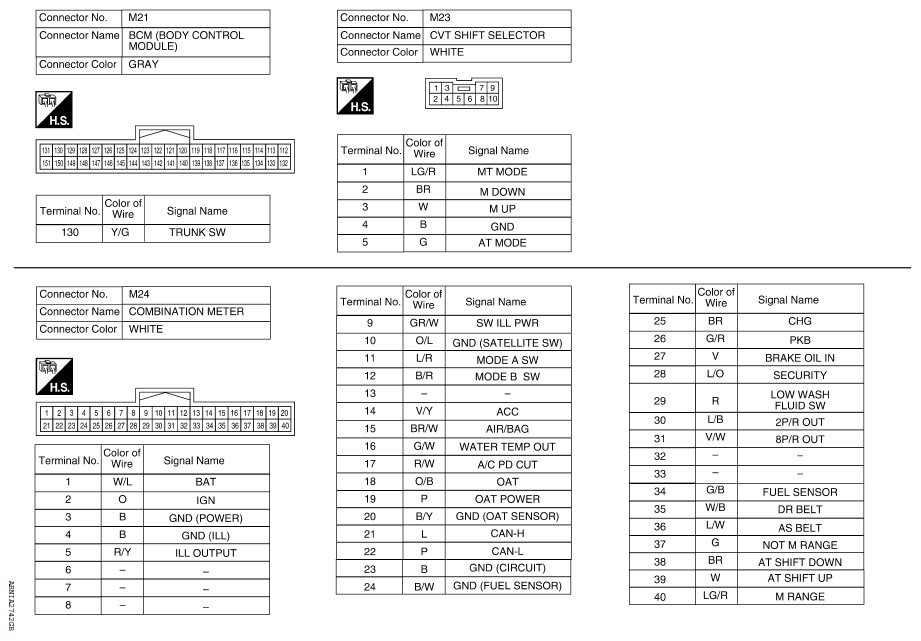

Fig 8: Identifying Meter Connectors - Coupe (8 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

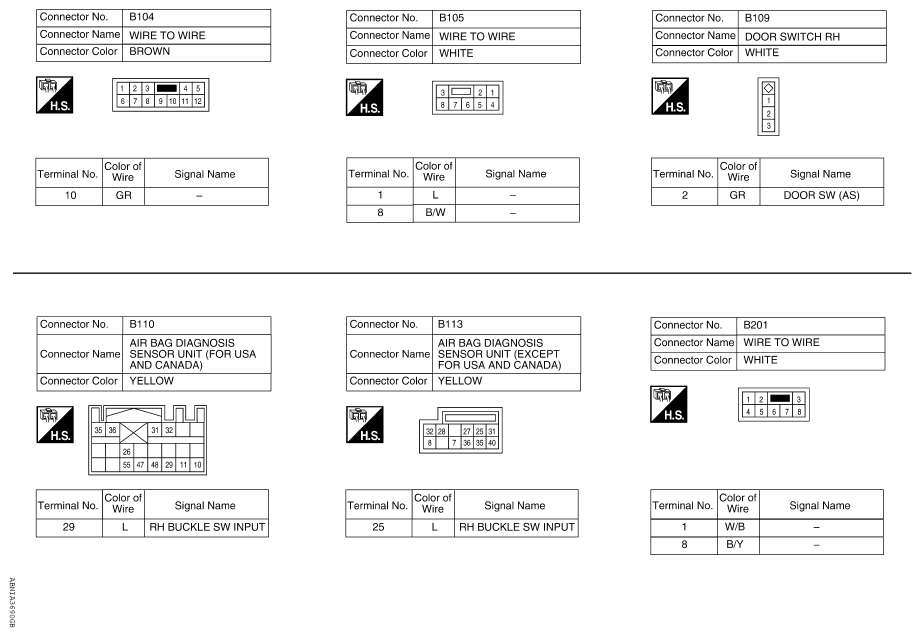

Fig 9: Identifying Meter Connectors - Coupe (9 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

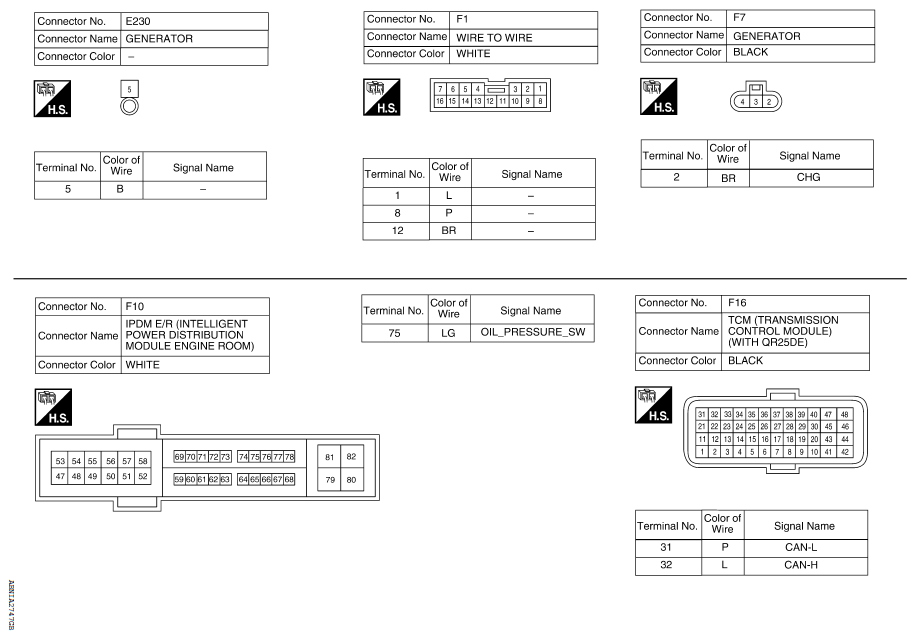

Fig 10: Identifying Meter Connectors - Coupe (10 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

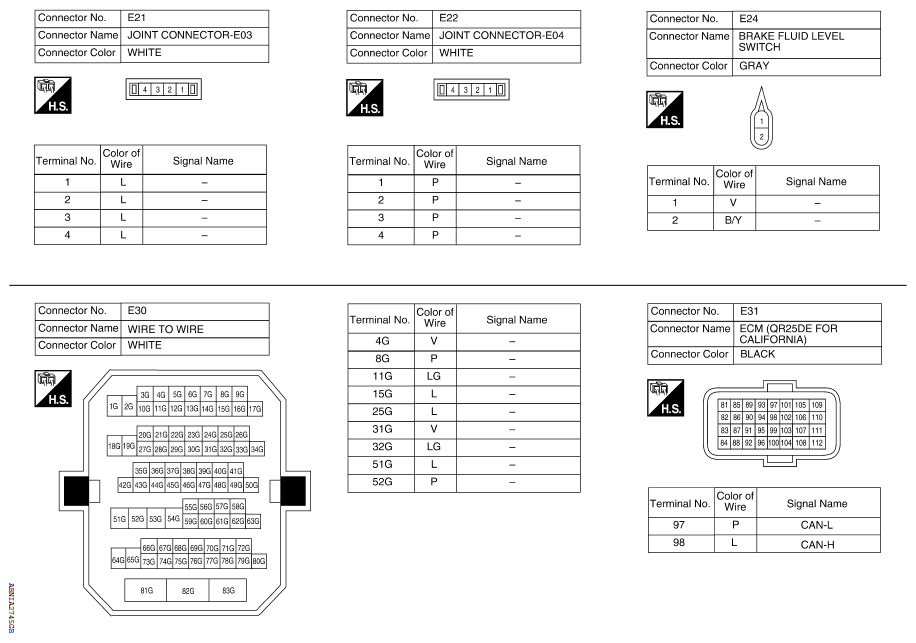

Fig 11: Identifying Meter Connectors - Coupe (11 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Meter Connectors - Coupe (12 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.
