Connector Terminal Identification - Sedan

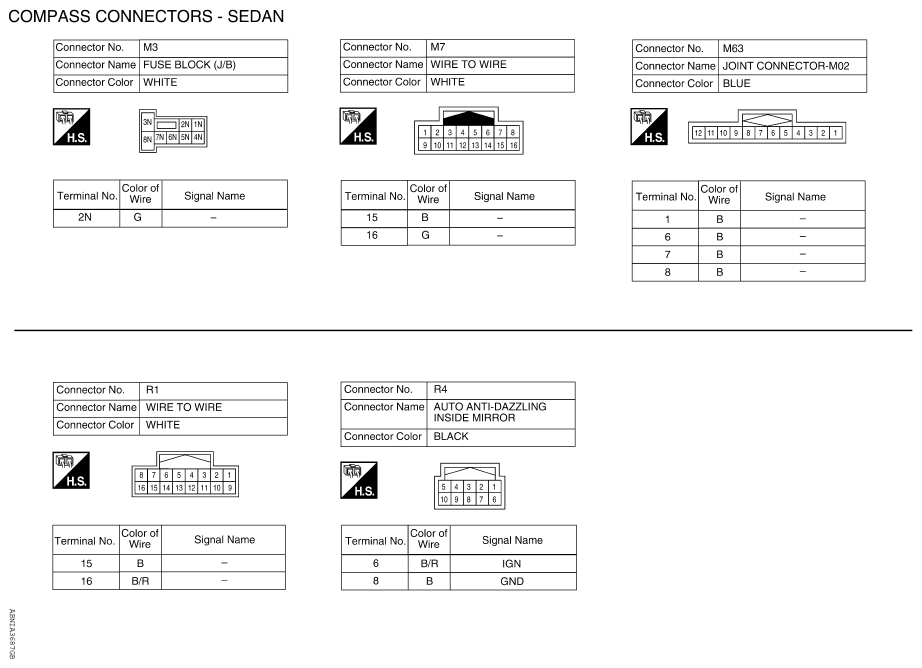

Fig 1: Identifying Compass Connectors (Sedan)

G08442041

Courtesy of NISSAN NORTH AMERICA, INC.
