Compass
>>
Connector Terminal Identification - Coupe
Connector Terminal Identification - Coupe

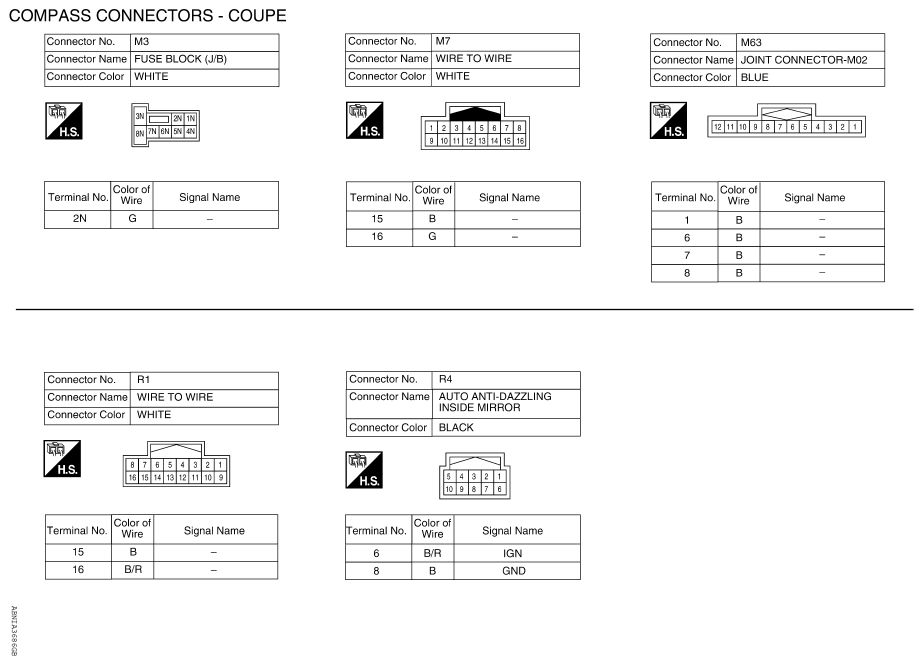

Fig 1: Identifying Compass Connectors (Coupe)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
