SPEEDOMETER: Component Parts Location
SPEEDOMETER: Component Parts Location

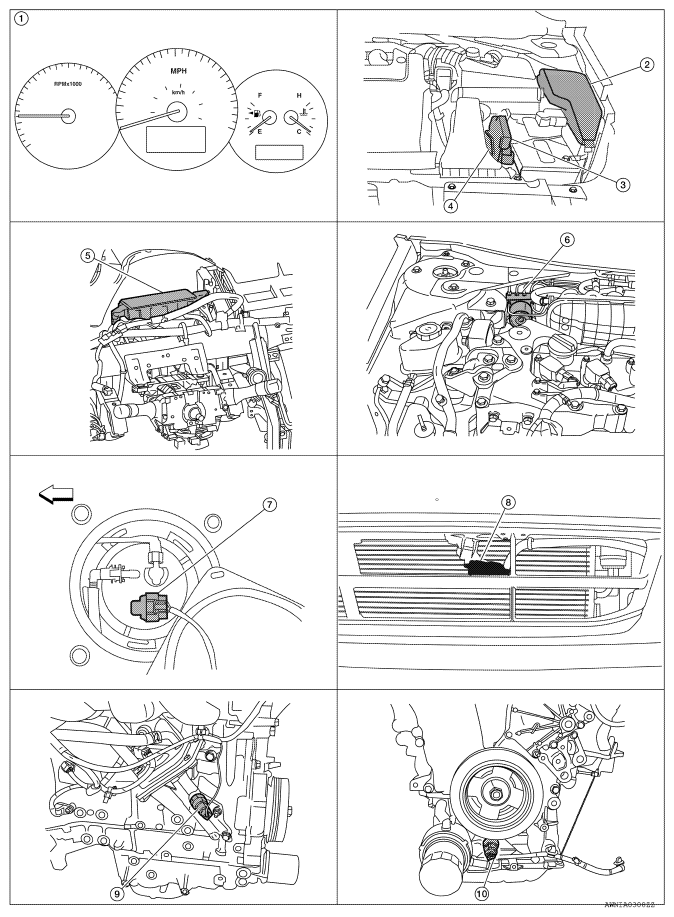

Fig 1: Identifying Speedometer Component Parts Location (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

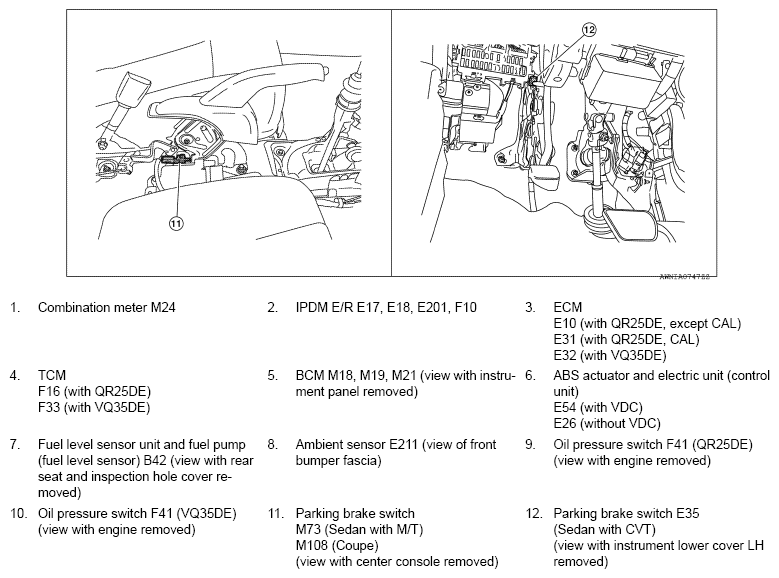

Fig 2: Identifying Speedometer Component Parts Location (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
