Operation Procedure

Turn the ignition switch OFF.
While pushing the odo/trip meter switch, turn the ignition switch ON again.
Push the odo/trip meter switch at least 3 times within 7 seconds after the ignition switch is turned ON.
The unified meter control unit is turned to self-diagnosis mode.
- All the segments on the odo/trip meter illuminate.

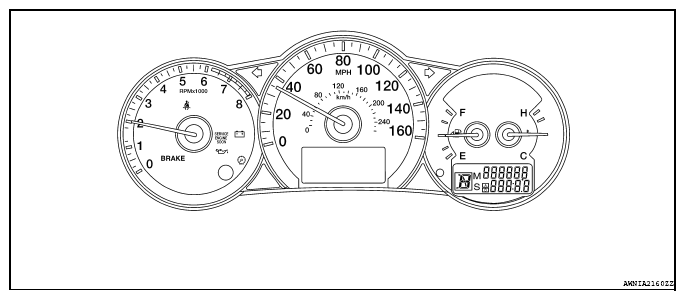

  Fig 1: Display - ODO/TRIP Meter Segments
  Courtesy of NISSAN NORTH AMERICA, INC.
- Dots in all segments of information display LCD (1) flash alternately.
NOTE: If any of the segments are not displayed, replace the combination meter. Refer to "REMOVAL AND INSTALLATION ".

Fig 2: Identifying Information Display LCD Segments
Courtesy of NISSAN NORTH AMERICA, INC.
Push the odo/trip meter switch. Each meter/gauge should indicate as shown in the figure.

Fig 3: Identifying Meter/Gauge Indications
Courtesy of NISSAN NORTH AMERICA, INC.
