IPDM E/R (Intelligent Power Distribution Module Engine Room)
>>
Reference Value
>>
Terminal Layout
Terminal Layout

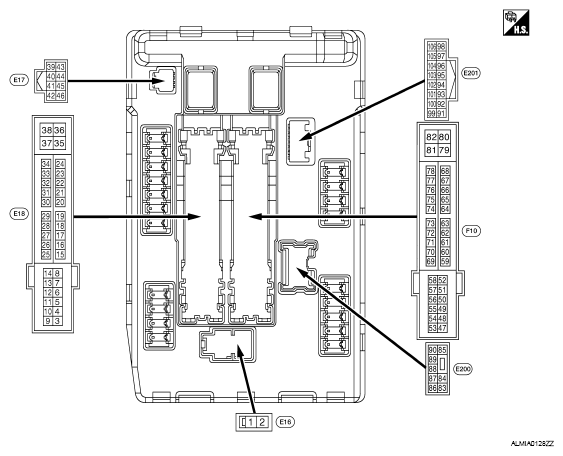

Fig 1: Intelligent Power Distribution Module Engine Room Connector Terminal Layout
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
