Removal and Installation: Removal

  1. Remove the instrument lower panel LH. Refer to REMOVAL AND INSTALLATION .
  2. Remove the steering column cover screws (A), then remove the steering column upper (1) and lower (2) covers.
NOTE: Shown with steering wheel removed for clarity. If necessary, rotate steering wheel to access steering column cover screws (A).

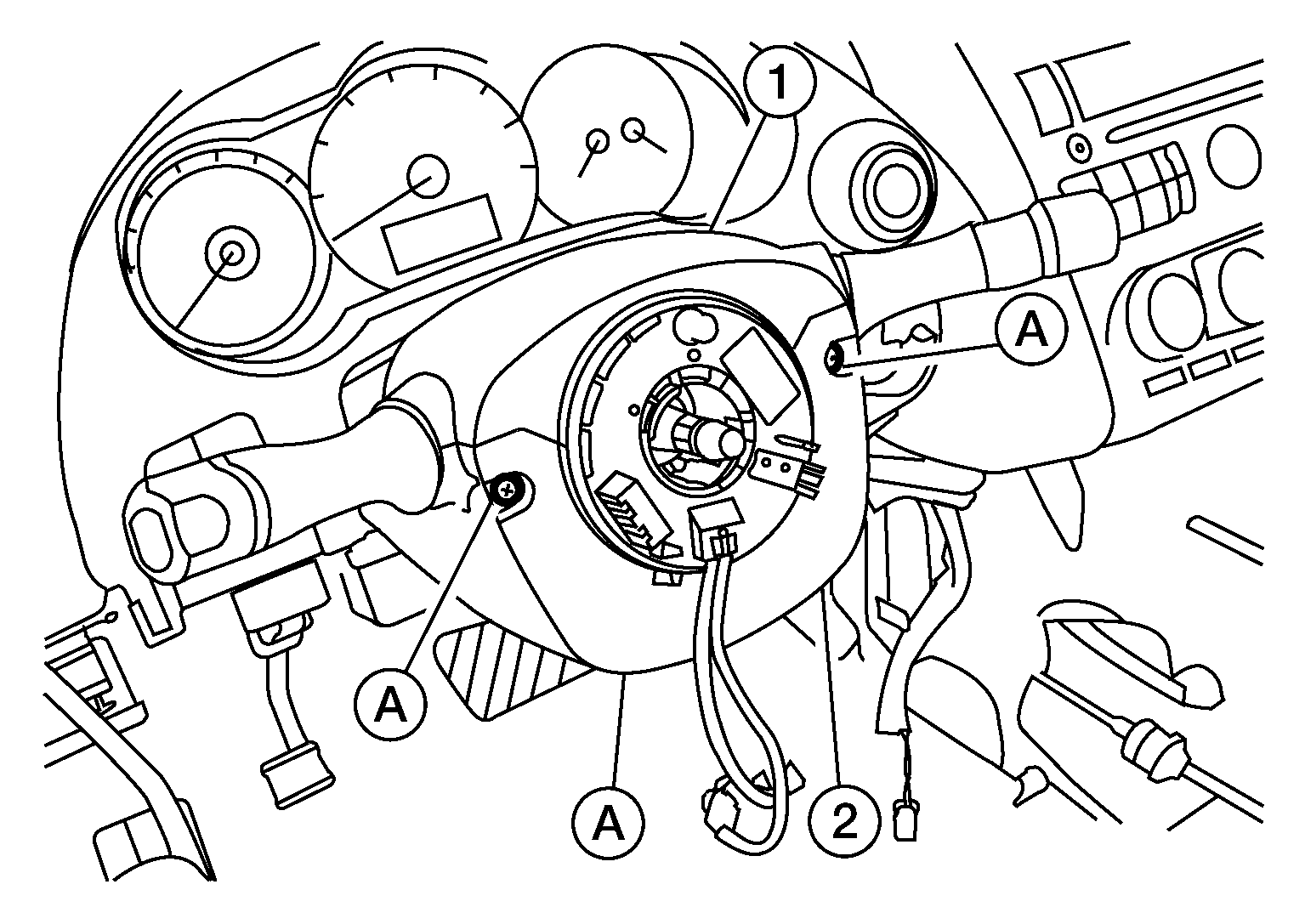

Fig 1: Identifying Steering Column Upper And Lower Covers, Mounting Screws
G04887718Courtesy of NISSAN NORTH AMERICA, INC.
