Removal and Installation: Removal

  1. Remove the instrument side finisher LH (1) using a suitable tool.
    Fig 1: Identifying Instrument Side Finisher LH
    G04887711Courtesy of NISSAN NORTH AMERICA, INC.
  2. Open the fuse block cover and remove the instrument lower panel LH screw (A).
  3. Release instrument lower panel LH clips and pawls, then pull instrument lower panel LH (1) downward.
  4. Disconnect the aspirator hose and harness connectors, then remove the instrument lower panel LH (1).

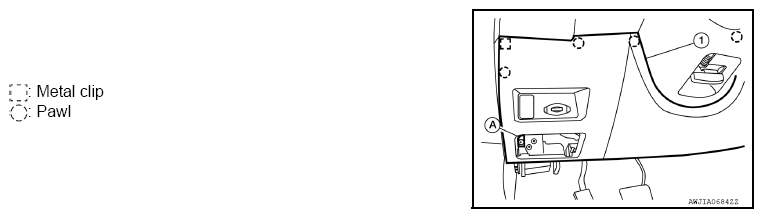

Fig 2: Identifying Instrument Lower Panel LH And Mounting Screws
G08438160Courtesy of NISSAN NORTH AMERICA, INC.
