Removal and Installation: Removal

  1. Remove the steering column covers. Refer to REMOVAL AND INSTALLATION .
  2. Release cluster lid A clips and pawls, then pull cluster lid A rearward.
    NOTE: Shown with steering wheel removed for clarity.
  3. Disconnect the push button ignition switch and function select switch connectors, then remove cluster lid A (1).

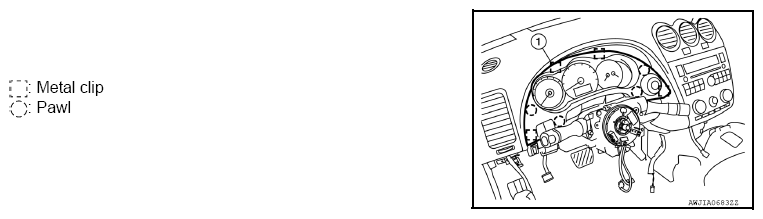

Fig 1: Identifying Cluster Lid A
G08438155Courtesy of NISSAN NORTH AMERICA, INC.
