Removal and Installation: Removal

CAUTION: Whenever a suitable tool is used, always wrap a cloth around the end of the tool to protect components from damage.
  1. Remove the CVT or MT finisher. Refer to REMOVAL AND INSTALLATION  (CVT) or EXPLODED VIEW  (MT).
  2. Release the pawls using a suitable tool and then remove cluster lid D (1).
    Fig 1: Identifying Cluster Lid D Fixing Pawls
    G08438156Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release the clips using a suitable tool, then remove the finisher/storage bin.
  4. Remove the instrument lower panel LH. Refer to REMOVAL AND INSTALLATION .
  5. Remove the console side finishers (RH/LH).

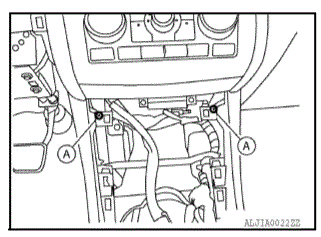

  6. Remove the console upper screws (A).
    Fig 2: Identifying Console Upper Screws
    G04887713Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove the console side screws (A).
    Fig 3: Identifying Console Side Screws
    G04887714Courtesy of NISSAN NORTH AMERICA, INC.
  8. Position the front seats (RH/LH) forward.
  9. Remove the console rear screw covers (RH/LH).
  10. Remove the console rear screw (A) from each side (RH/LH).
  11. Disconnect necessary harness connectors, then remove the console assembly.
Fig 4: Identifying Console Rear Screw
G04887715Courtesy of NISSAN NORTH AMERICA, INC.
