Removal and Installation: Removal

CAUTION: Whenever a suitable tool is used, always wrap a cloth around the end of the tool to protect components from damage.
  1. Place the shift selector (5) into the drive (D) position.
  2. Remove the shift selector handle (1).
    1. Release the shift selector handle cover (3) using a suitable tool from the base of the shift selector handle (1).
    2. Remove the shift selector handle clip (2).
    3. Pull upward and remove the shift selector handle (1).
  3. Release the clips using a suitable tool, then lift the CVT finisher (4) upward.
  4. Remove the CVT finisher illumination bulb from the CVT finisher and remove the CVT finisher (4).

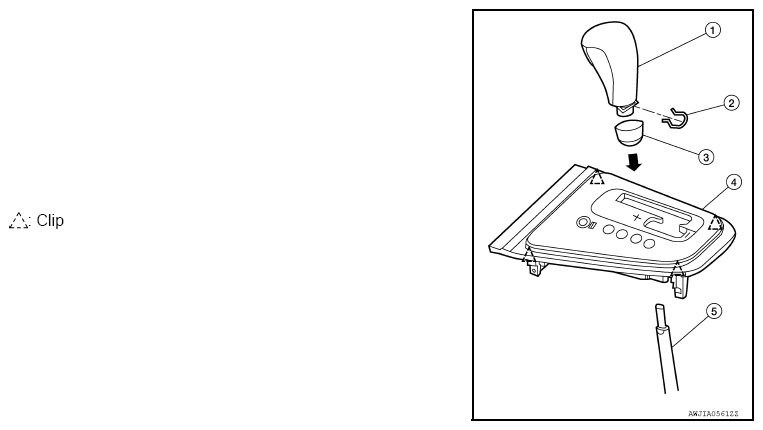

    Fig 1: Identifying CVT Finisher Components
    G08438167Courtesy of NISSAN NORTH AMERICA, INC.
