Wiring Diagram - Sedan

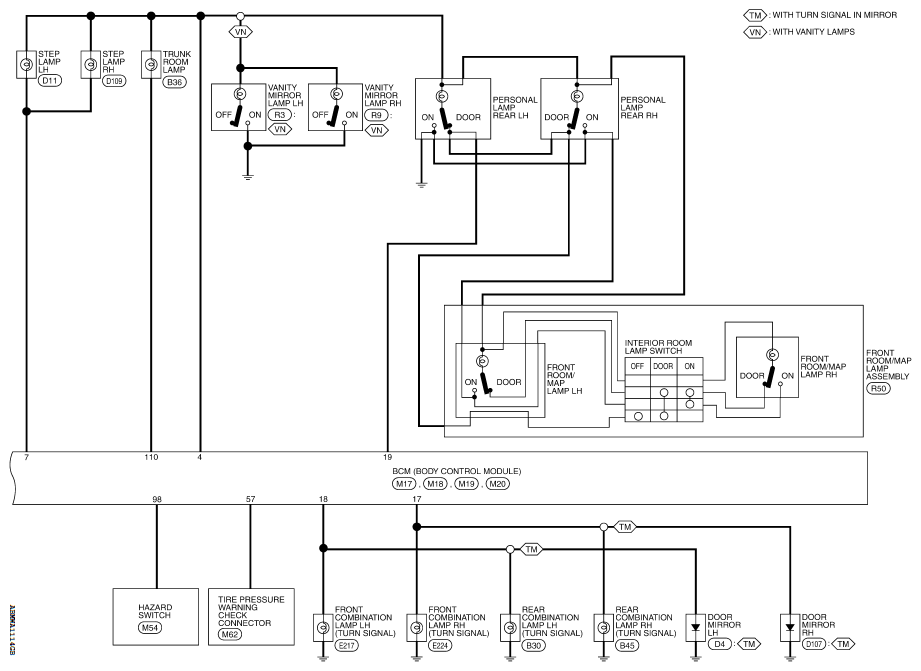

Fig 1: Body Control Module - Sedan - Wiring Diagram (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

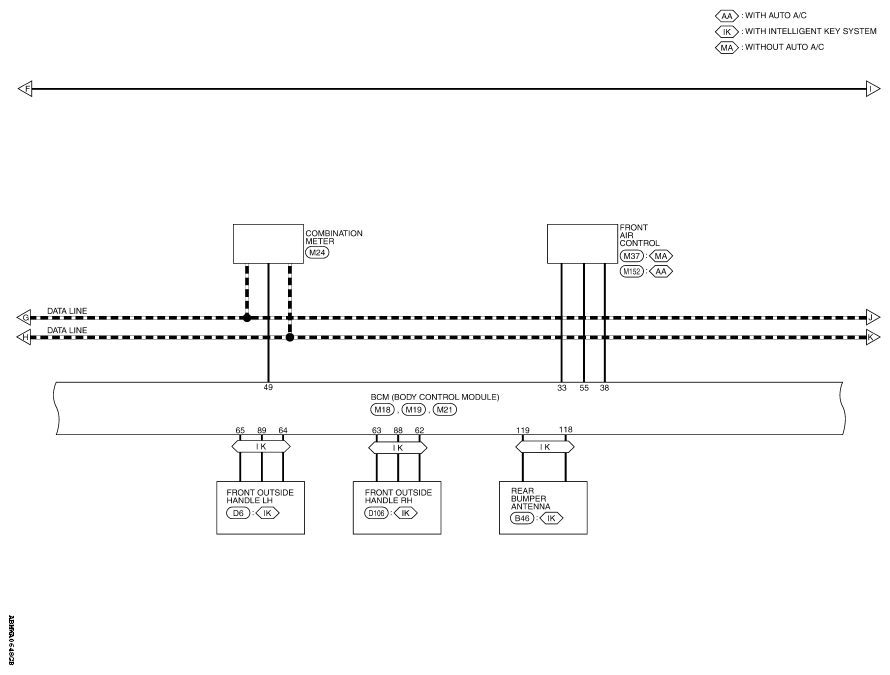

Fig 2: Body Control Module - Sedan - Wiring Diagram (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

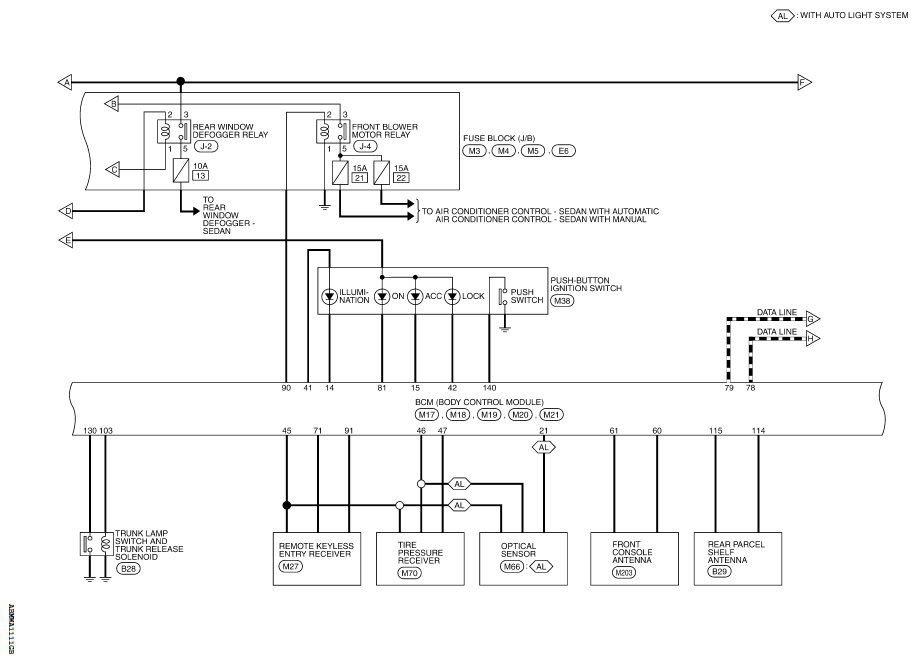

Fig 3: Body Control Module - Sedan - Wiring Diagram (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

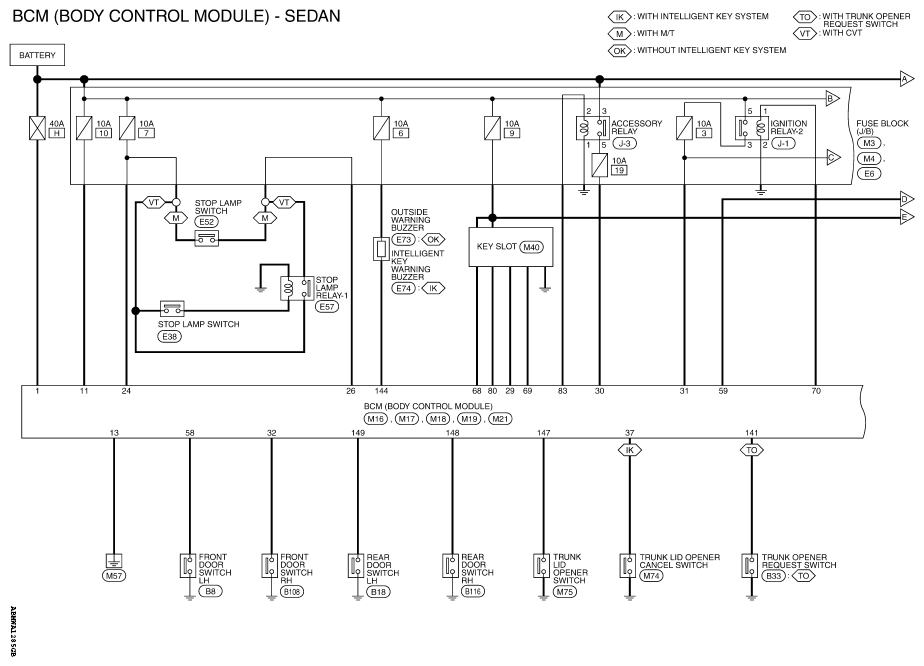

Fig 4: Body Control Module - Sedan - Wiring Diagram (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

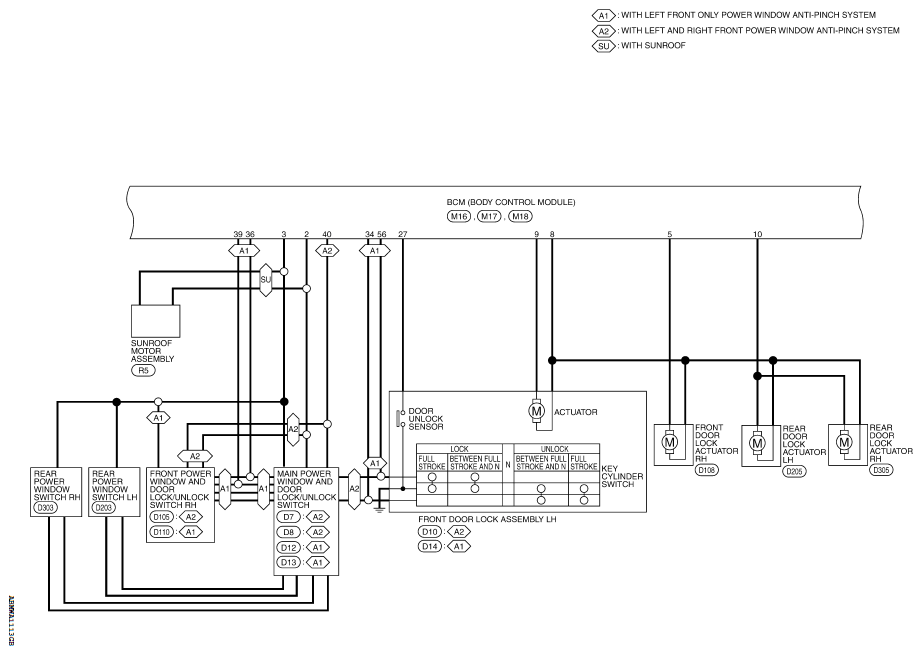

Fig 5: Body Control Module - Sedan - Wiring Diagram (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

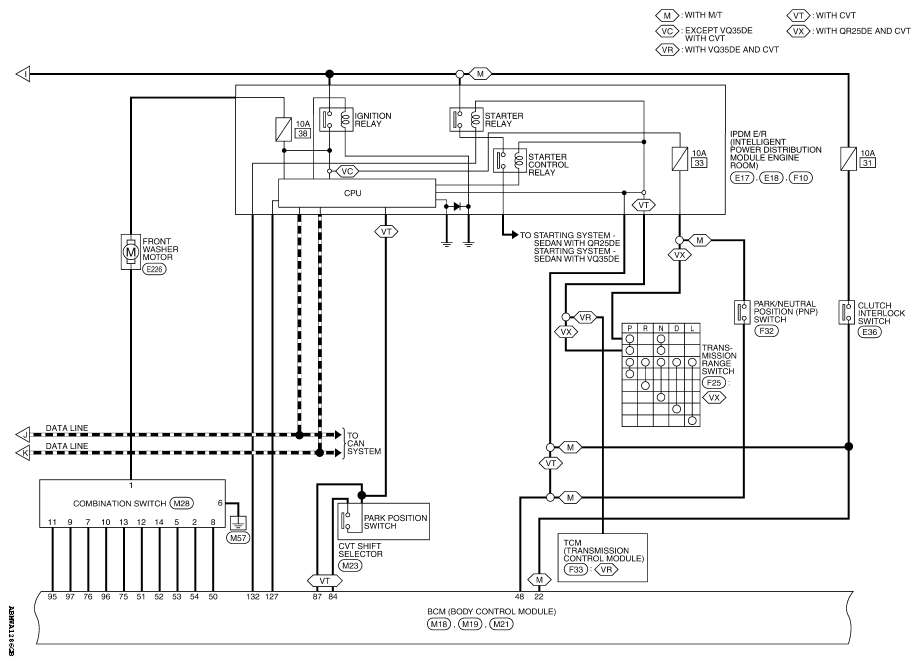

Fig 6: Body Control Module - Sedan - Wiring Diagram (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
