Automatic Transmission - CVT : Re0F10A
>>
Service Information
>>
Trouble Diagnosis
>>
Circuit Diagram
Circuit Diagram

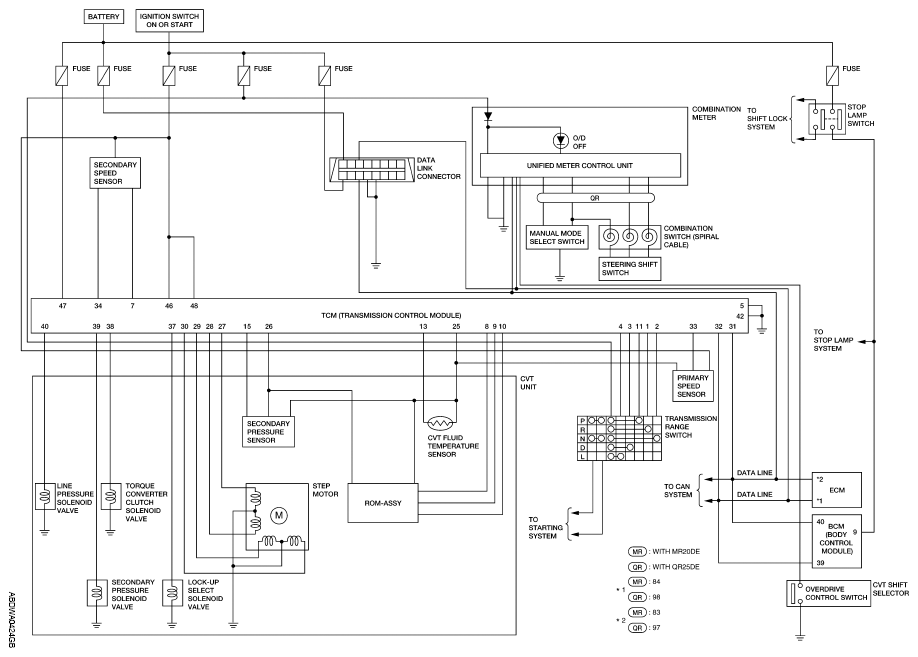

Fig 1: CVT Electrical System Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
