Timing Chain: Component

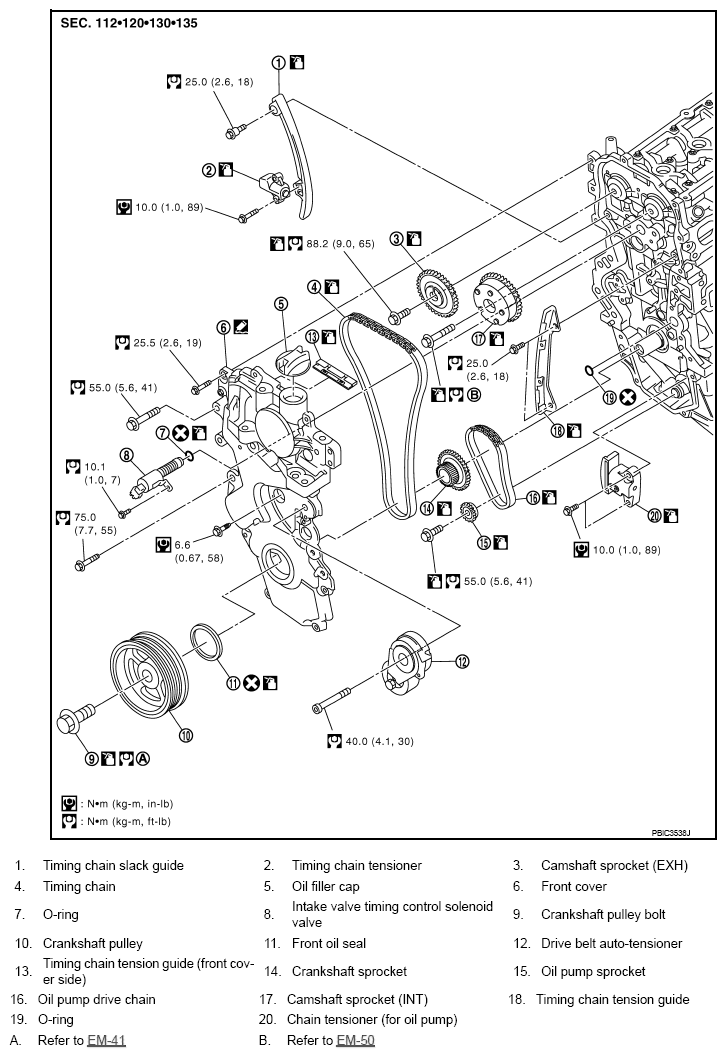

Fig 1: Exploded View Of Timing Chain Components With Torque Specifications

G07137209

Courtesy of NISSAN MOTOR CO., U.S.A.
