Drive Belts: Component

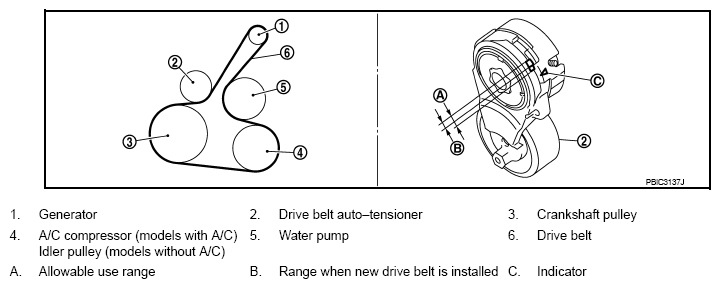

Fig 1: Drive Belt Routing Diagram
G07137159Courtesy of NISSAN MOTOR CO., U.S.A.

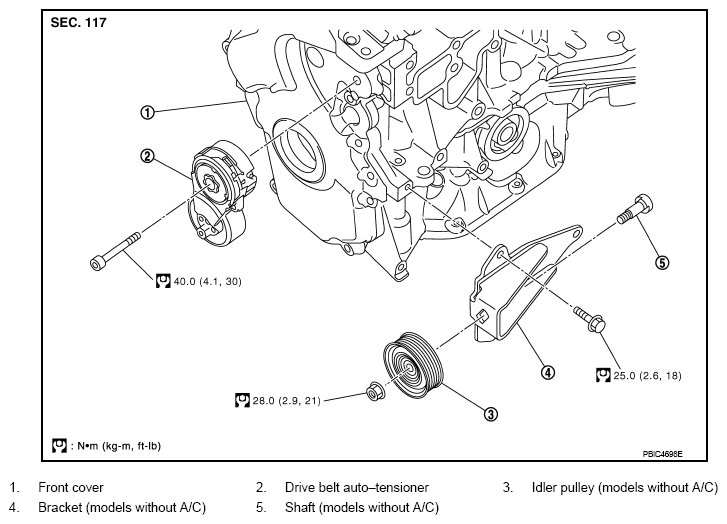

Fig 1: Exploded View Of Drive Belts Components With Torque Specifications
G07137161Courtesy of NISSAN MOTOR CO., U.S.A.
