Cylinder Block: Component

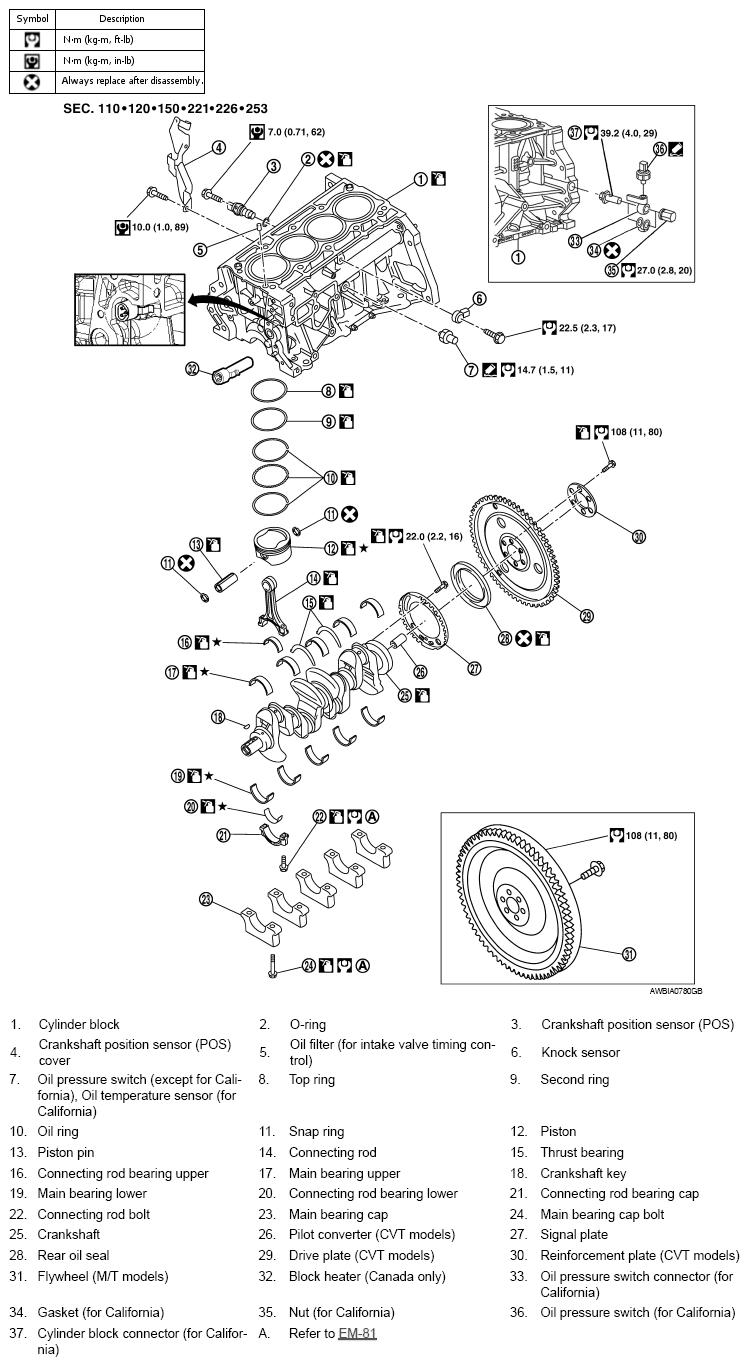

Fig 1: Exploded View Of Cylinder Block Components With Torque Specifications

G07137304

Courtesy of NISSAN MOTOR CO., U.S.A.
