Home >> Nissan-Datsun >> 2011 >> Sentra SE-R >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Mechanical (MR20DE) >> Service Information >> Camshaft >> Component

Service Information: Camshaft: Component

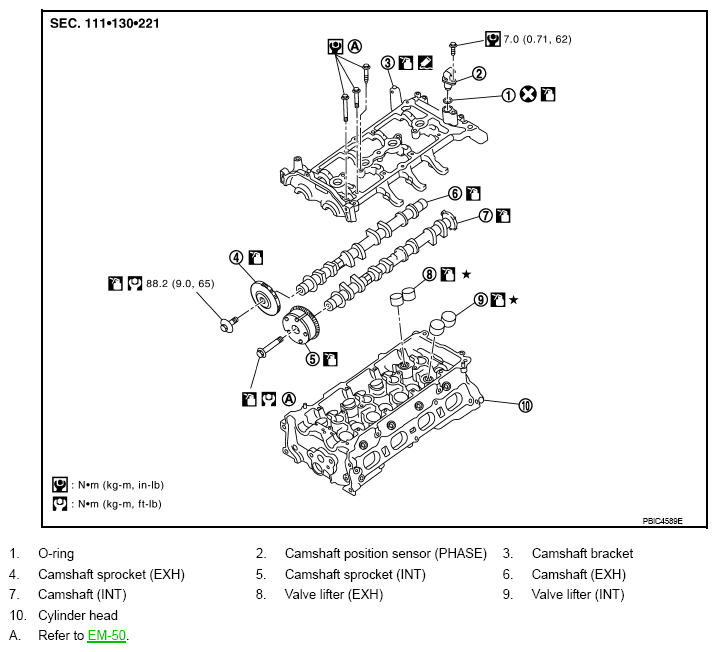

Fig 1: Exploded View Of Camshaft Components With Torque Specifications

G07137231

Courtesy of NISSAN MOTOR CO., U.S.A.
