Air Cleaner And Air Duct: Component

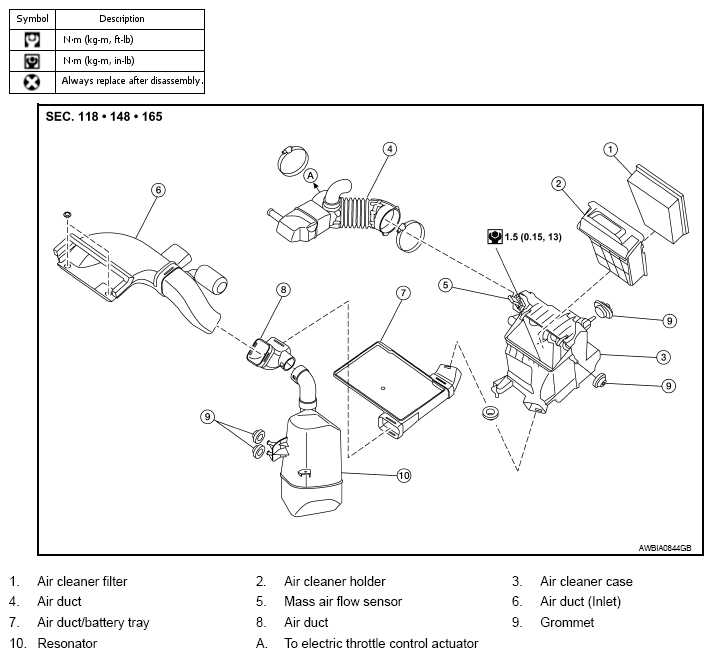

Fig 1: Exploded View Of Air Cleaner And Air Duct Components With Torque Specifications
G07137162Courtesy of NISSAN MOTOR CO., U.S.A.
