Water Control Valve: Component

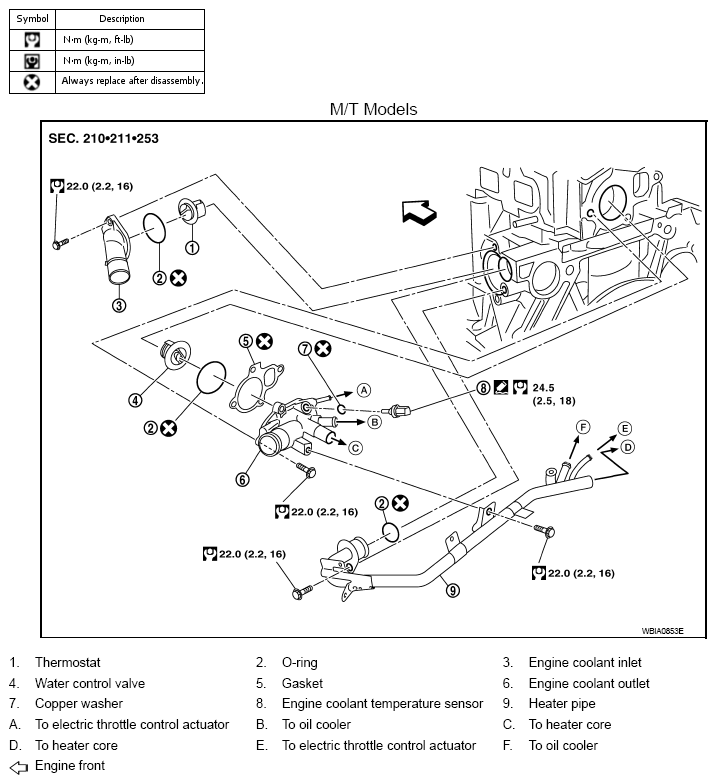

Fig 1: Exploded View Of Water Control Valve Components With Torque Specifications - M/T Models
G07137750Courtesy of NISSAN MOTOR CO., U.S.A.

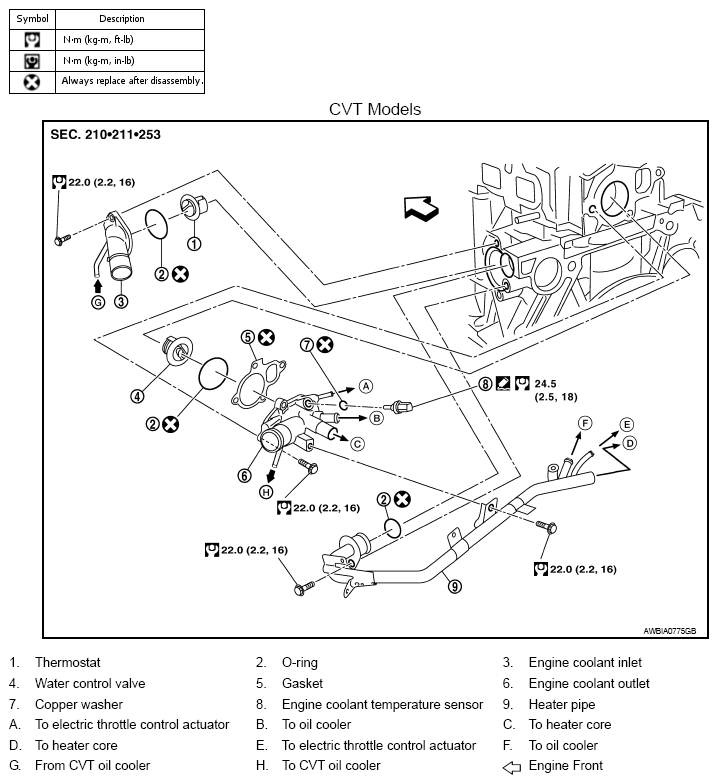

Fig 2: Exploded View Of Water Control Valve Components With Torque Specifications - CVT Models
G07137751Courtesy of NISSAN MOTOR CO., U.S.A.
