Rear Disc Brake: Component

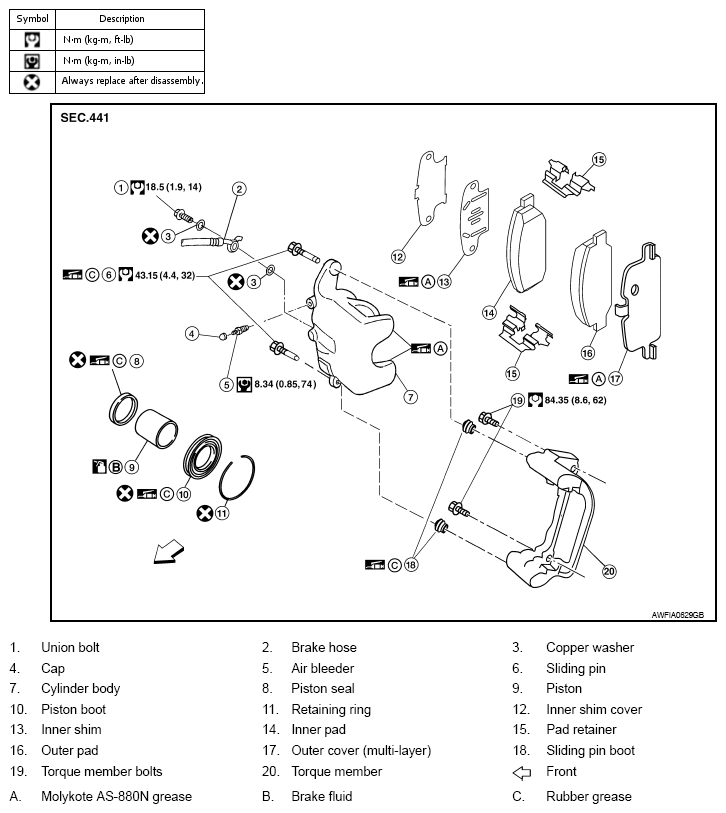

Fig 1: Exploded View Of Rear Disc Brake Components With Torque Specifications
G07139482Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Clean dust with a vacuum dust collector. Do not blow with compressed air.
  • Make sure parking brake lever is released completely.
