Ignition Power Supply - Ignition Switch In On And/Or Start

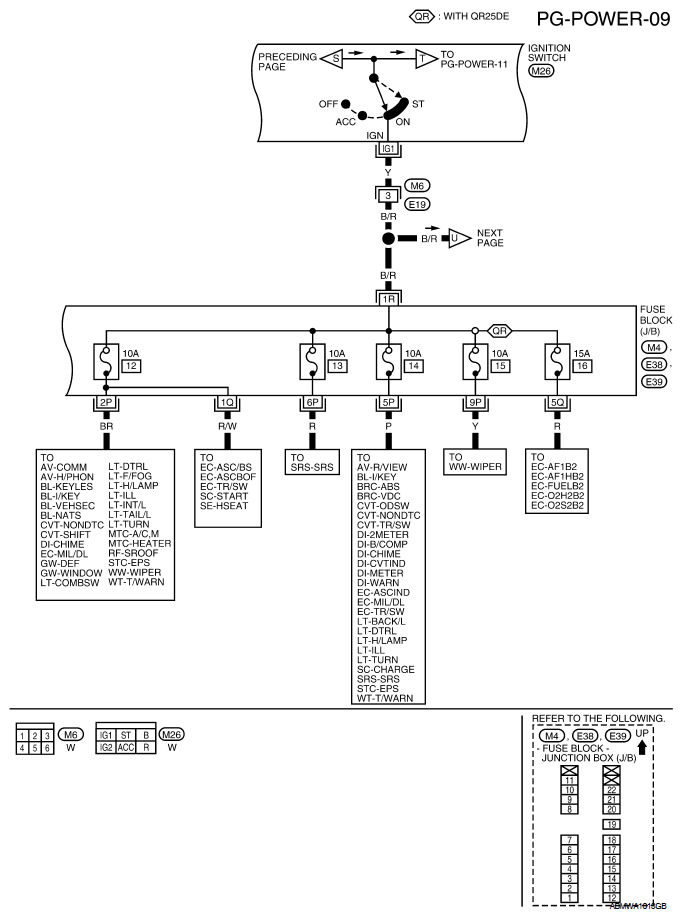

Fig 1: Wiring Diagram - PG-POWER-09
G07143471Courtesy of NISSAN MOTOR CO., U.S.A.

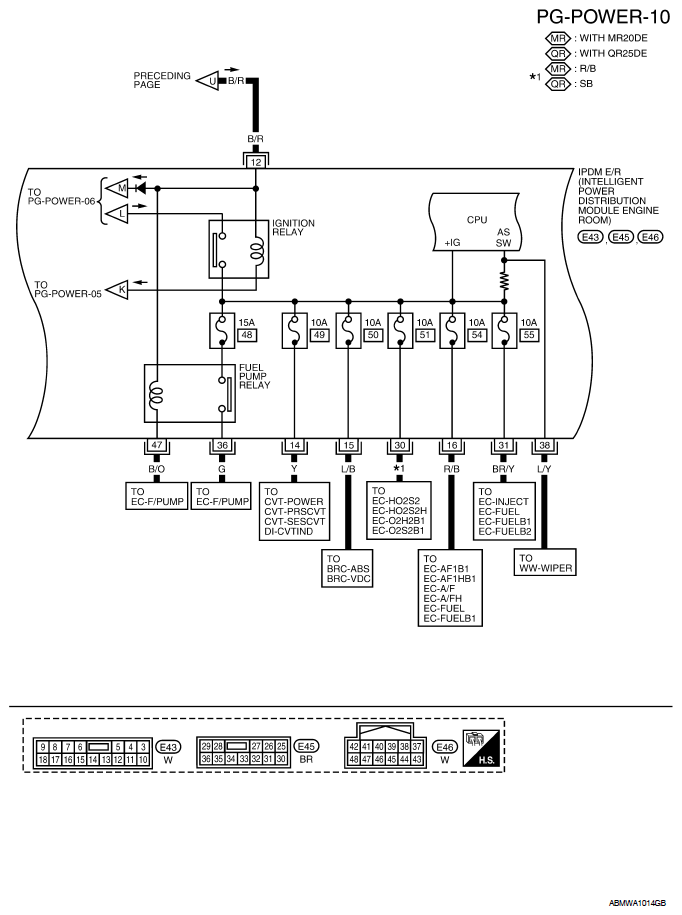

Fig 2: Wiring Diagram - PG-POWER-10
G07143472Courtesy of NISSAN MOTOR CO., U.S.A.
