Battery Power Supply - Ignition Switch In Any Position

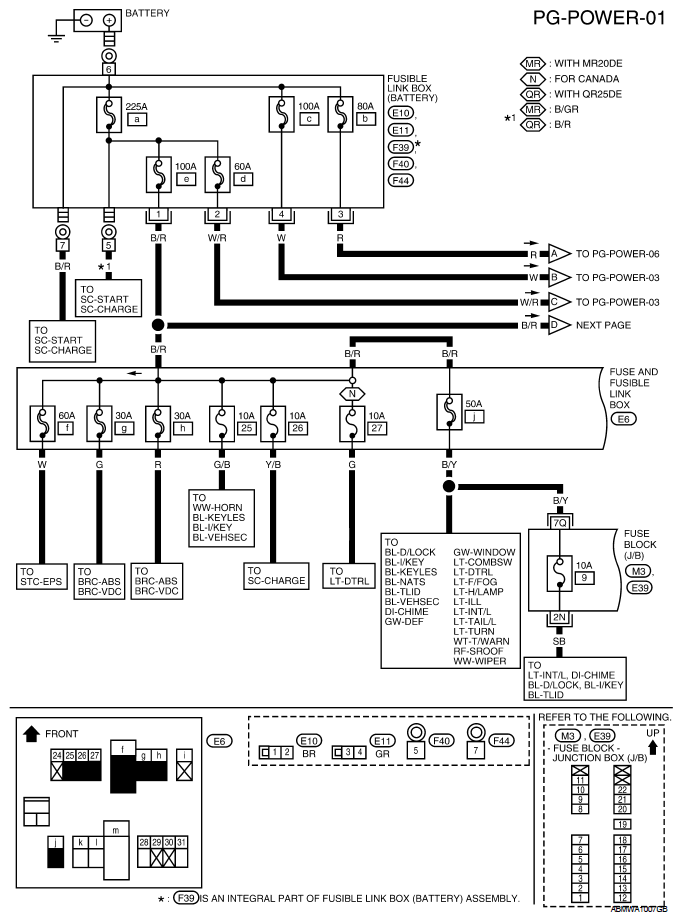

Fig 1: Wiring Diagram - PG-POWER-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Wiring Diagram - PG-POWER-02

Courtesy of NISSAN MOTOR CO., U.S.A.

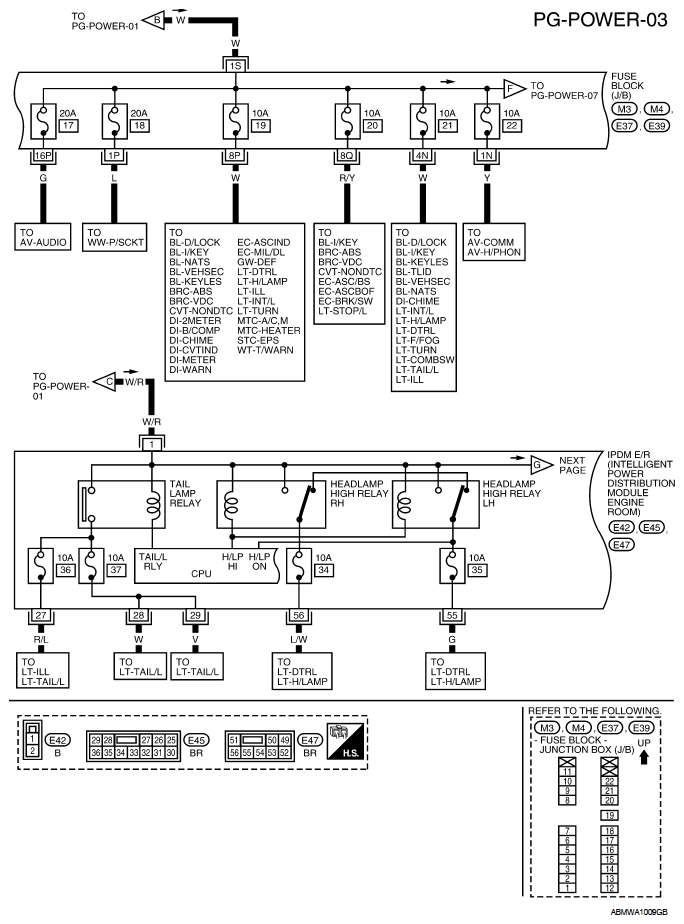

Fig 3: Wiring Diagram - PG-POWER-03

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Wiring Diagram - PG-POWER-04

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Wiring Diagram - PG-POWER-05

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Wiring Diagram - PG-POWER-06

Courtesy of NISSAN MOTOR CO., U.S.A.
