Room Lamp Harness

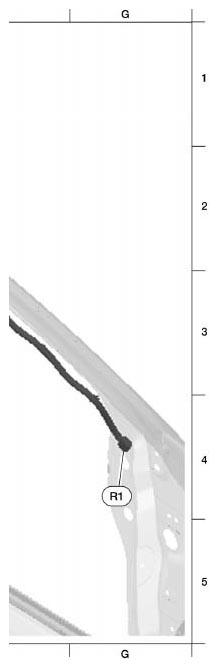

Fig 1: Location Of Room Lamp Harness

G07143499

Courtesy of NISSAN MOTOR CO., U.S.A.

ROOM LAMP HARNESS DESCRIPTION

G4	R1	W/12	: To M41	E3	R8	W/2	: Vanity mirror lamp RH
D3	R3	W/2	: Map lamp	Sunroof sub-harness
D3	R4	W/4	: Microphone	D3	R25	BR/4	: To R6
B1	R5	W/2	: Interior room lamp	C3	R26	GR/10	: Sunroof motor assembly
C3	R6	BR/4	: To R25	D3	R27	W/3	: Sunroof switch
C4	R7	W/2	: Vanity mirror lamp LH
