60:40 Split Fold Down Seat Cushion

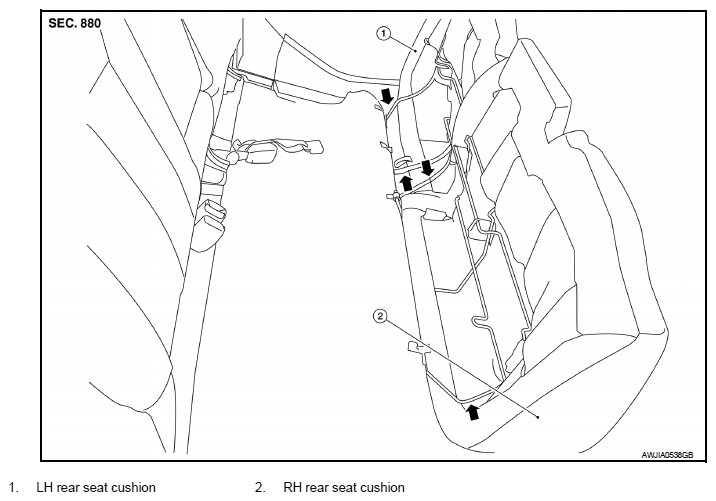

Fig 1: View Of LH & RH Rear Seat Cushion
G07142983Courtesy of NISSAN MOTOR CO., U.S.A.

Removal

  1. Lift up on the front of the LH and RH seat cushions and fold forward toward the front of the vehicle.
  2. Push the cushion wires inward to disengage from the hinge brackets and remove the seat cushion.

Installation

Installation is in the reverse order of removal.
