Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Interior/Illumination Lights
>>
Lighting System
>>
Service Information
>>
Turn Signal And Hazard Warning Lamps
>>
Wiring Diagram - TURN -
Wiring Diagram - TURN -

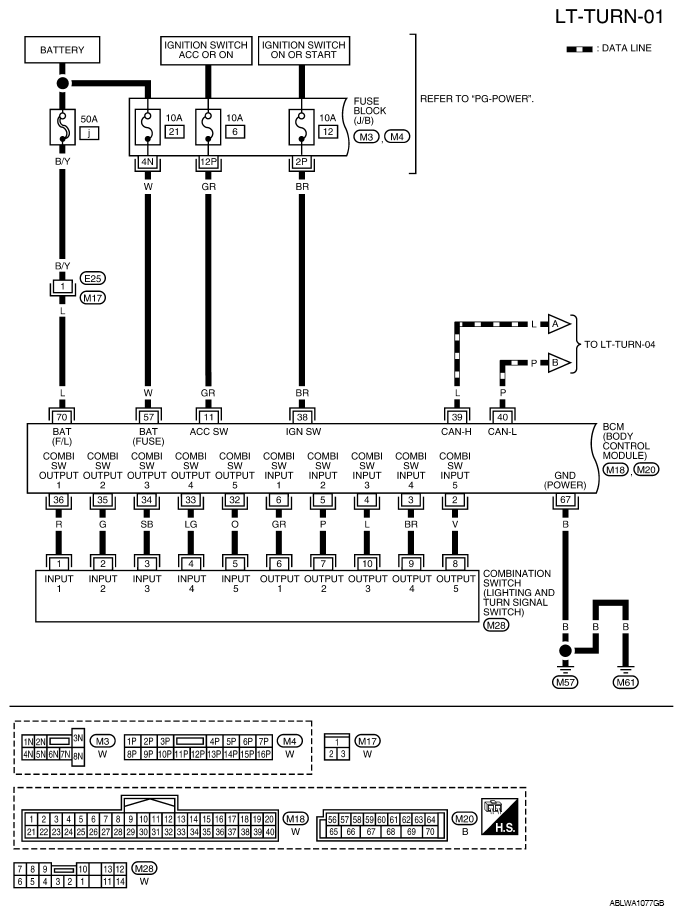

Fig 1: LT-TURN-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

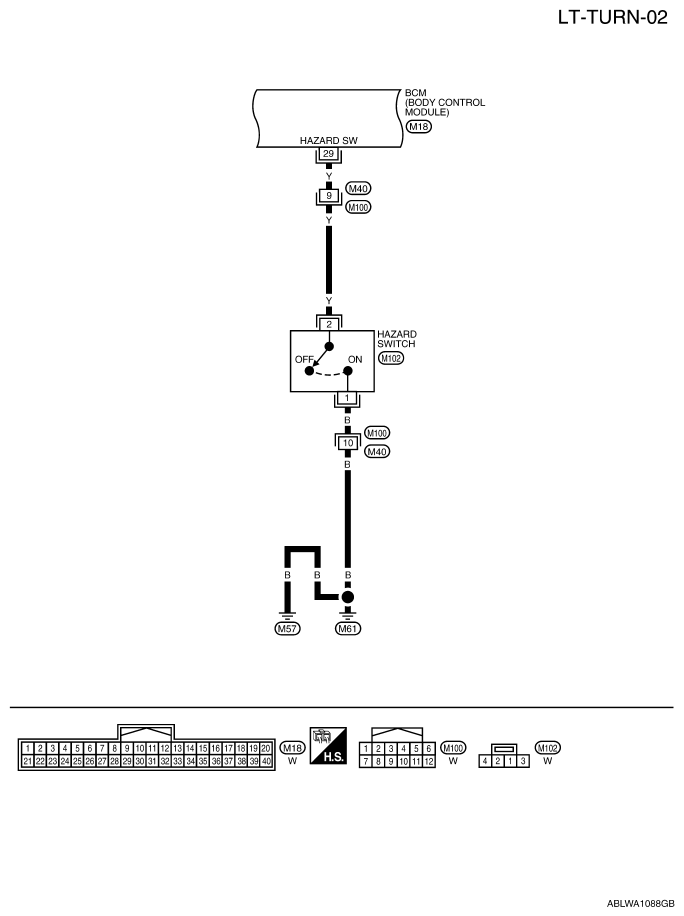

Fig 2: LT-TURN-02 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

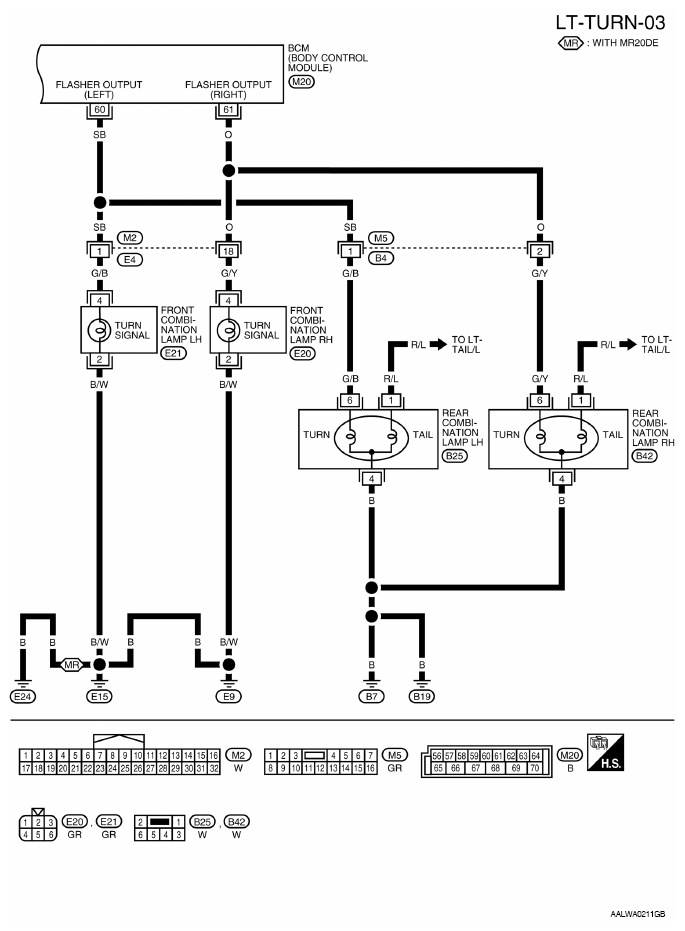

Fig 3: LT-TURN-03 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

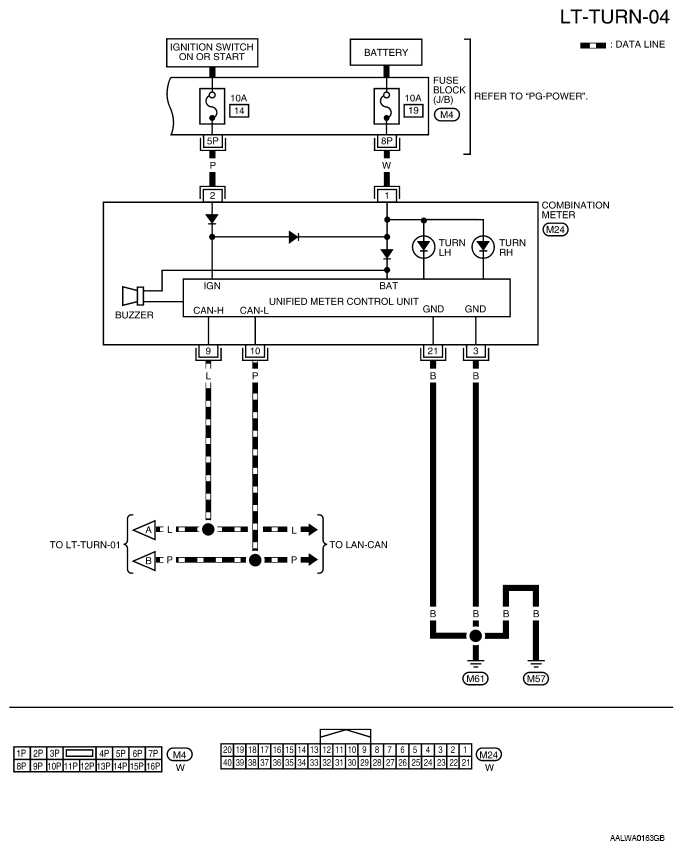

Fig 4: LT-TURN-04 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
