Wiring Diagram - TAIL/L -

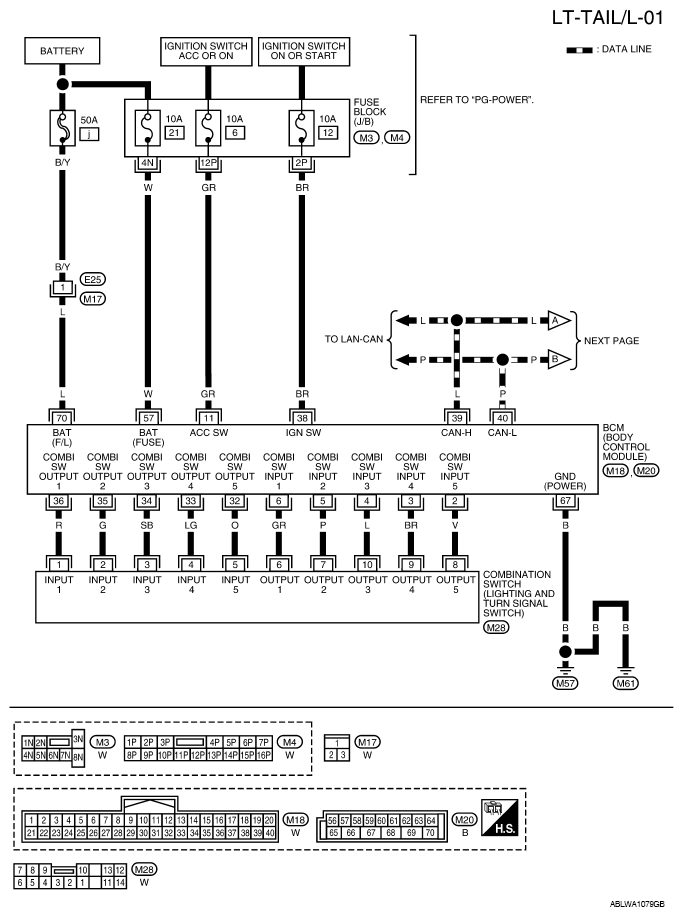

Fig 1: LT-TAIL/L-01 - Wiring Diagram
G07143236Courtesy of NISSAN MOTOR CO., U.S.A.

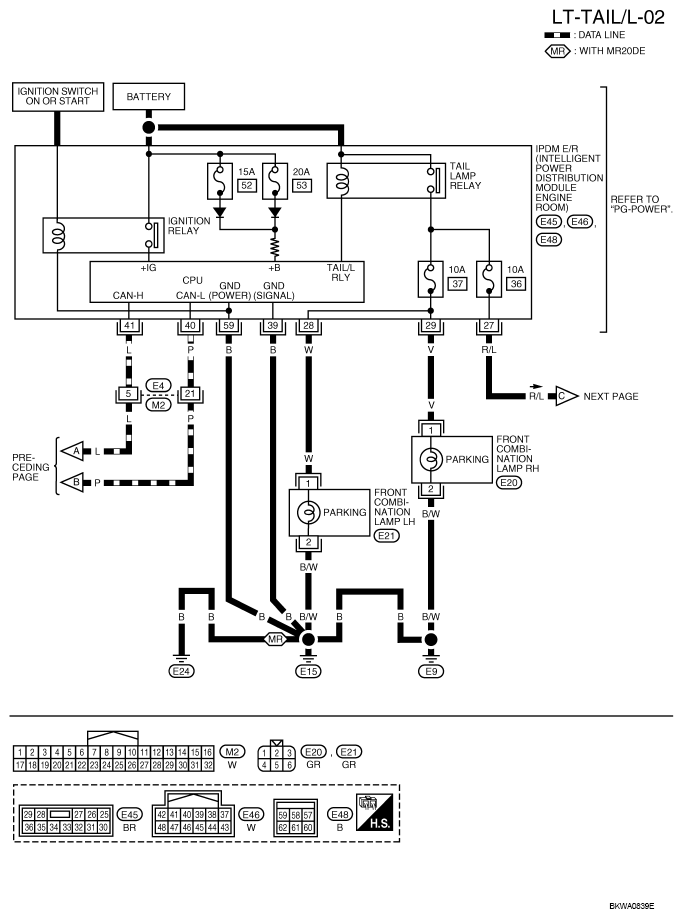

Fig 2: LT-TAIL/L-02 - Wiring Diagram
G07143237Courtesy of NISSAN MOTOR CO., U.S.A.

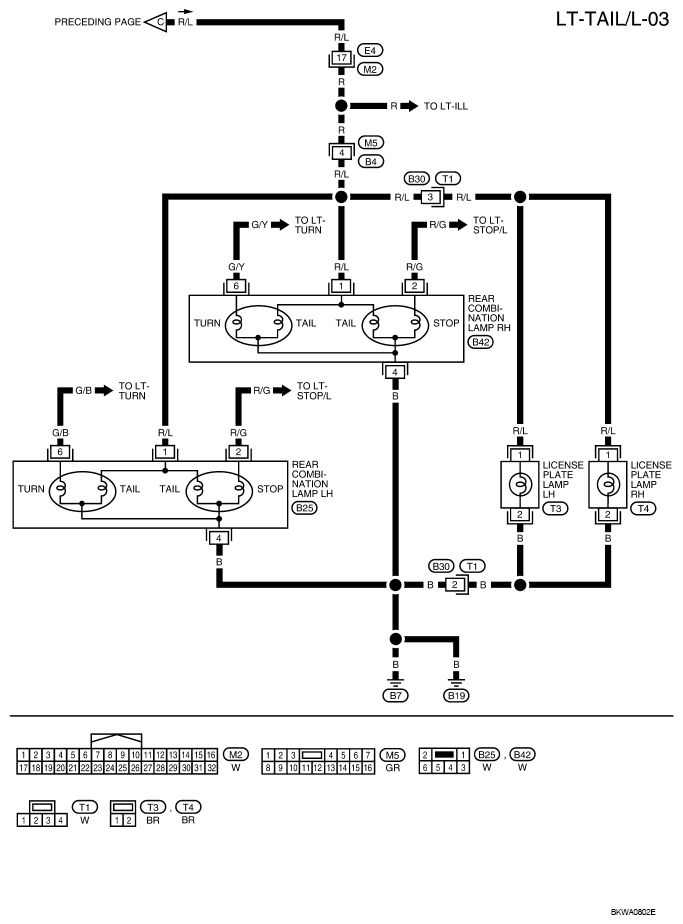

Fig 3: LT-TAIL/L-03 - Wiring Diagram
G07143238Courtesy of NISSAN MOTOR CO., U.S.A.
