Disassembly and Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Before disassembling, measure end play for 3rd, 4th, 5th, and 6th input gears.
End play standard value : Refer to "GEAR END PLAY ".

Fig 1: Checking End Play Of 3rd, 4th, 5th And 6th Input Gears
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil channel.
Tool number : ST33052000 (-)

Fig 2: Pressing Out Input Shaft Rear Bearing Using Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Press out input shaft rear bearing using Tool and a puller.
Tool number A: ST33052000 (-)

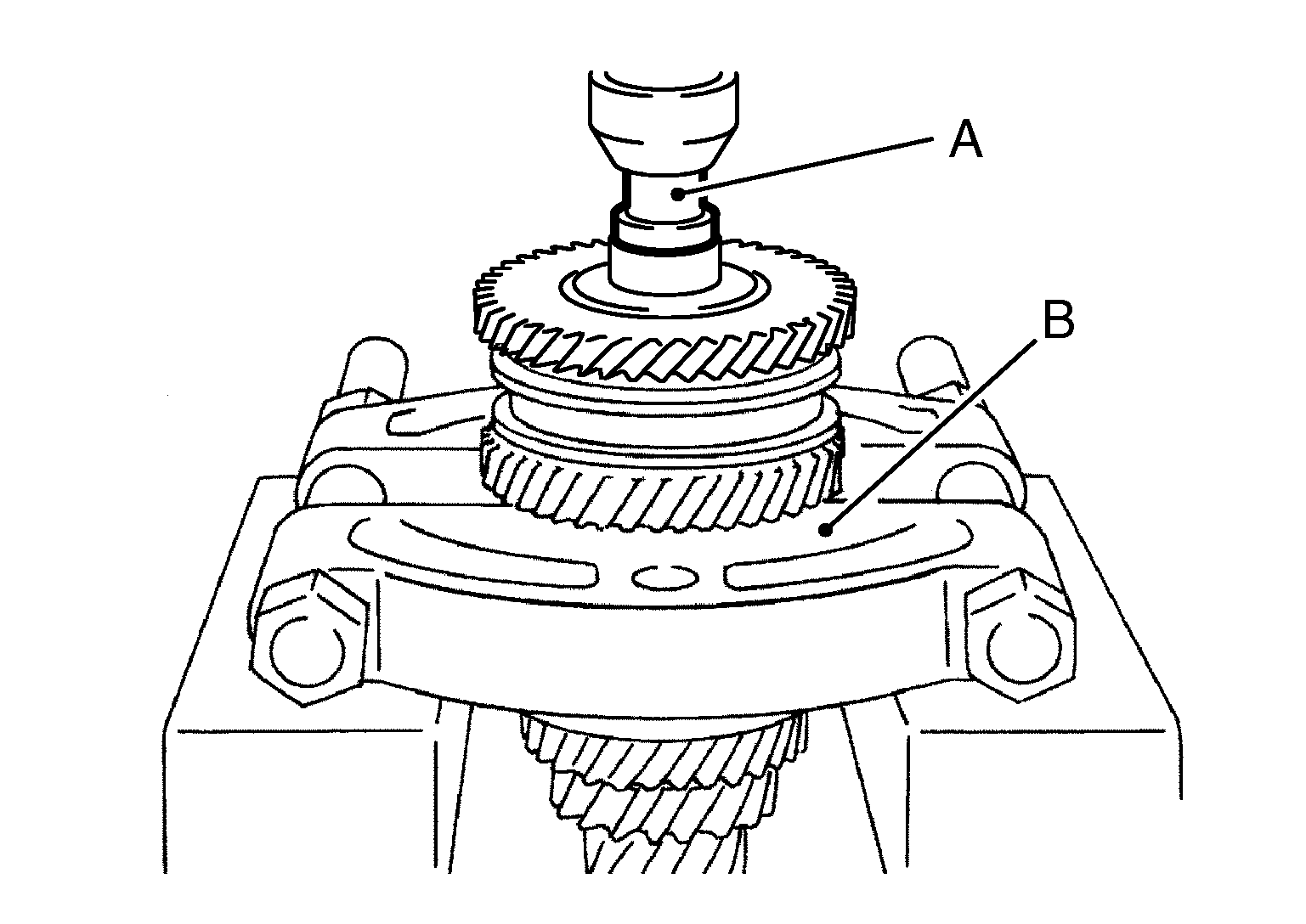

Fig 3: Pressing Out 6th Input Gear Using Tool And Puller
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring.
Press out 6th input gear, 6th needle bearing, 6th input gear bushing, 5th-6th synchronizer hub assembly, and 5th input gear using Tool (A) and a puller (B).
Tool number : ST33052000 (-)
Remove 5th needle bearing.
Press out 5th input gear bushing, thrust washer, 4th input gear, 4th needle bearing, 4th input gear bushing, 3rd-4th synchronizer hub assembly, and 3rd input gear using Tool and a puller.
Tool number : ST33052000 (-)

Fig 4: Pressing Out 5Th Input Gear Bushing, Thrust Washer, 4th input Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove 3rd needle bearing.
Press out input shaft front bearing using a puller.

Fig 5: Pressing Out Input Shaft Front Bearing Using Puller
