Disassembly and Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove final gear bolts and then separate the final gear from differential case.
Remove differential side bearing (clutch housing side) using Tool and pullers (B).
Tool number A: ST33061000 (J-8107-2)

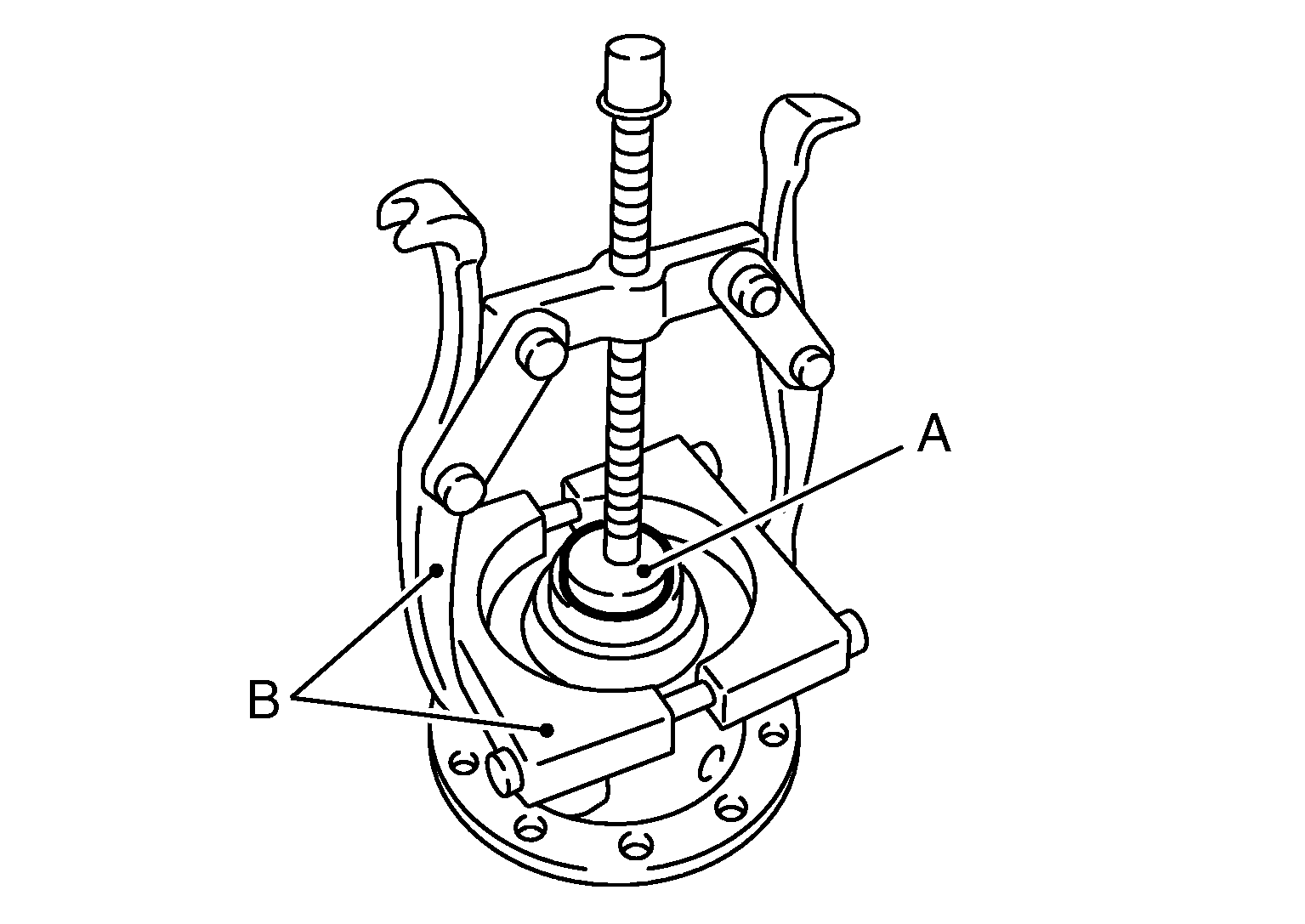

Fig 1: Removing Differential Side Bearing (Clutch Housing Side) Using Tool And Pullers
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Hook a puller on the cage of differential side bearing.
Remove speedometer drive gear.
Remove differential side bearing (transaxle case side) using Tool and puller.
Tool number A: ST33061000 (J-8107-2)

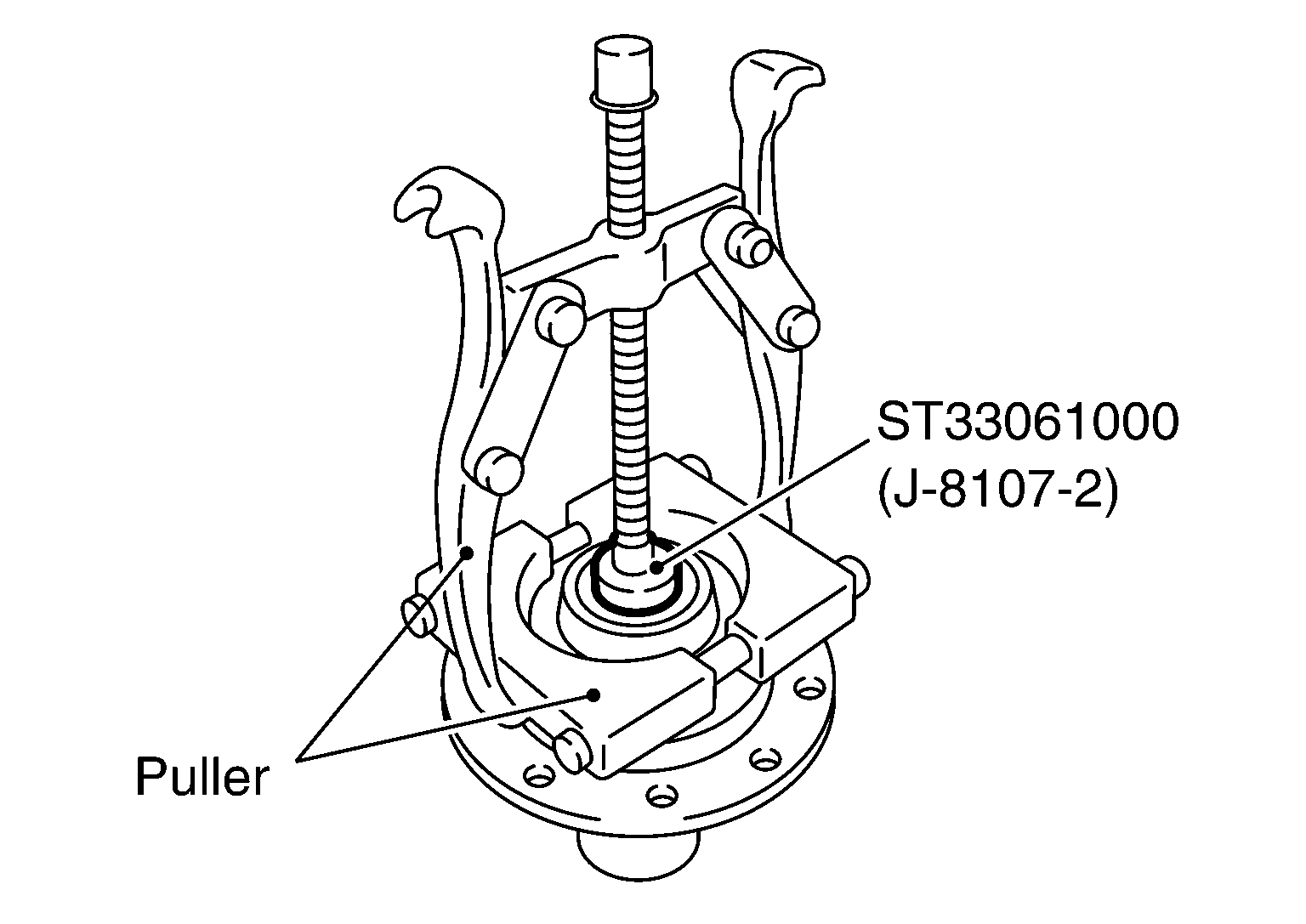

Fig 2: Removing Differential Side Bearing (Transaxle Case Side) Using Tool And Puller
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Hook a puller on the inner race of differential side bearing.

Fig 3: Identifying Inner Race Of Differential Side Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
