Transaxle Assembly: Component

WARNING: This page is about a different variant/trim than selected.

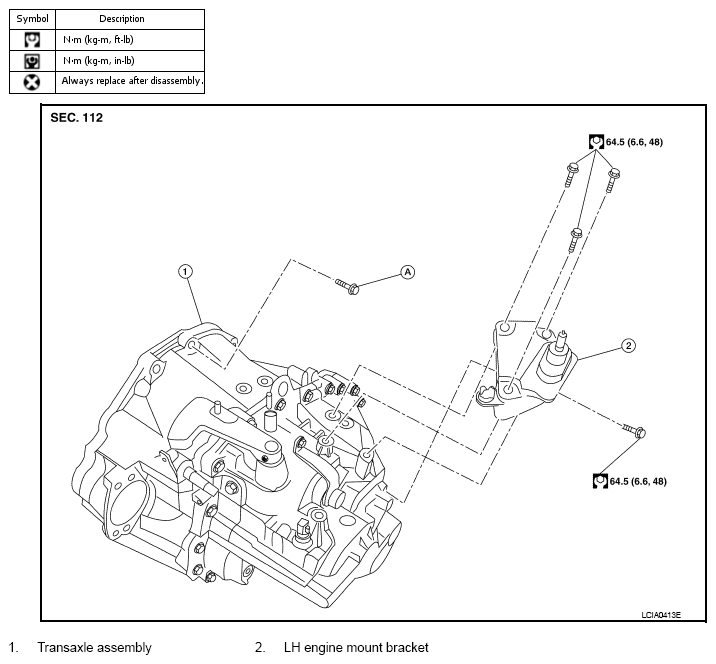

Fig 1: Exploded View Of Transaxle Assembly Components With Torque Specifications
G07138637Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Refer to "REMOVAL AND INSTALLATION ".
