Disassembly and Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install 3rd needle bearing to input shaft.
  2. Install 3rd input gear, 3rd inner baulk ring, 3rd synchronizer cone, and 3rd outer baulk ring to input shaft.
    CAUTION: Replace 3rd inner baulk ring, 3rd synchronizer cone, and 3rd outer baulk ring as a set.
  3. Install 3rd-4th spread springs, 3rd-4th shifting inserts, and 3rd-4th synchronizer hub onto 3rd-4th coupling sleeve.
    CAUTION:
    • Be careful with orientation of 3rd-4th synchronizer hub.
    • Never reuse 3rd-4th synchronizer hub and 3rd-4th coupling sleeve.
    • Replace 3rd-4th synchronizer hub and 3rd-4th coupling sleeve as a set.
      Fig 1: View Of 3rd-4th Synchronizer Hub And 3rd-4th Coupling Sleeve
      G07138753Courtesy of NISSAN MOTOR CO., U.S.A.
    • Be careful with orientation of 3rd-4th coupling sleeve.
      Fig 2: View Of 3rd-4th Coupling Sleeve
      G07138754Courtesy of NISSAN MOTOR CO., U.S.A.
    • Be sure not to hook center projection of 2 spread springs on same shifting insert.
      Fig 3: Location Of Hook Center Projection Of Two Spread Springs
      G07138755Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Press in 3rd-4th synchronizer hub assembly using Tool

    Tool number : KV40105710 (-)

    CAUTION: Align grooves of 3rd-4th shifting insert and 3rd outer baulk ring.
    Fig 4: Aligning Grooves Of 3rd-4th Shifting Insert And 3rd Outer Baulk Ring
    G07138756Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Press in 4th input gear bushing using Tool.

    Tool number : KV40105710 (-)

  6. Install 4th baulk ring.
  7. Install 4th needle bearing and 4th input gear to input shaft.
    Fig 5: Installing 4th Needle Bearing And 4th Input Gear To Input Shaft
    G07138757Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Select thrust washer so that dimension "C2" satisfies the standard value below. Then install thrust washer onto input shaft. Refer to "AVAILABLE THRUST WASHER ".

    Standard value for dimension "C2" :  Refer to "AVAILABLE THRUST WASHER ".

    CAUTION: Only one thrust washer can be selected.

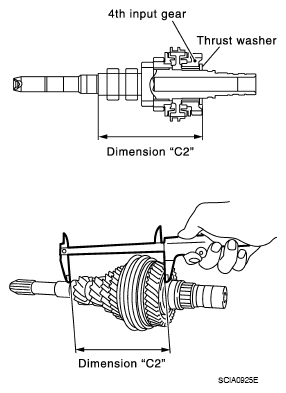

    Fig 6: Location Of Thrust Washer
    G07138758Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Press in 5th input gear bushing using Tool.

    Tool number : KV40105710 (-)

    CAUTION: Never reuse 5th input gear bushing.
  10. Install 5th needle bearing and 5th input gear to input shaft.
  11. Install 5th baulk ring.
    Fig 7: Installing 5th Baulk Ring
    G07138759Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Install 5th-6th synchronizer hub, 5th-6th spread springs, and 5th-6th shifting inserts onto 5th-6th coupling sleeve.
    CAUTION:
    • Be careful with orientation of 5th-6th synchronizer hub.
      Fig 8: Installing 5th-6th Synchronizer Hub, 5th-6th Spread Springs, And 5th-6th Shifting Inserts Onto 5th-6th Coupling Sleeve
      G07138760Courtesy of NISSAN MOTOR CO., U.S.A.
    • Never reuse 5th-6th synchronizer hub and 5th-6th coupling sleeve.
    • Replace 5th-6th synchronizer hub and 5th-6th coupling sleeve as a set.
    • Be careful with orientation of 5th-6th coupling sleeve.
      Fig 9: View Of 5th-6th Synchronizer Hub And 5th-6th Coupling Sleeve
      G07138761Courtesy of NISSAN MOTOR CO., U.S.A.
    • Be sure not to hook center projection of 2 spread springs on same shifting insert.
      Fig 10: Location Of Hook Center Projection Of Two Spread Springs
      G07138762Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Press in 5th-6th synchronizer hub assembly using Tool.

    Tool number : KV40105710 (-)

    CAUTION: Align grooves of 5th-6th shifting insert and 5th baulk ring.
    Fig 11: Aligning Grooves Of 5th-6th Shifting Insert And 5th Baulk Ring
    G07138763Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Install 6th needle bearing, 6th input gear, 6th baulk ring onto 6th input gear bushing and then press in 6th input gear bushing onto input shaft using Tool.

    Tool number : ST33200000 (J-26082)

    Fig 12: Installing 6th Needle Bearing, 6th Input Gear, 6th Baulk Ring Onto 6th Input Gear Bushing
    G07138764Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Install snap ring onto input shaft and make sure that end play (gap between snap ring and groove) of 6th input gear bushing satisfies the standard value.

    End play standard value :Refer to  "AVAILABLE SNAP RINGS ".

    Fig 13: Installing Snap Ring Onto Input Shaft
    G07138765Courtesy of NISSAN MOTOR CO., U.S.A.
    • If measurement is outside the standard range, select snap ring. Refer to "AVAILABLE SNAP RINGS ".
      CAUTION: Never reuse snap ring.
  16. Press in input shaft rear bearing using Tool.

    Tool number : ST30901000 (J-26010-01)

    CAUTION: Install input shaft rear bearing with its brown surface facing the 6th input gear side.
    Fig 14: Installing Input Shaft Rear Bearing
    G07138766Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Press in input shaft front bearing Tools (A), (B).

    Tool number A: ST33052000 (-)

    B: ST30032000 (J-26010-01)

  18. Install oil channel onto input shaft.
    Fig 15: Installing Oil Channel Onto Input Shaft
    G07138767Courtesy of NISSAN MOTOR CO., U.S.A.
  19. Check end play of 3rd, 4th, 5th, and 6th input gears.

    End play standard value :  Refer to "GEAR END PLAY ".

    Fig 16: Checking End Play Of 3rd, 4th, 5th, And 6th Input Gears
    G07138768Courtesy of NISSAN MOTOR CO., U.S.A.
