Triple-Cone Synchronizer

WARNING: This page is about a different variant/trim than selected.

Triple-cone synchronizer are adopted for 1st and 2nd gears to reduce operating force of the control lever.

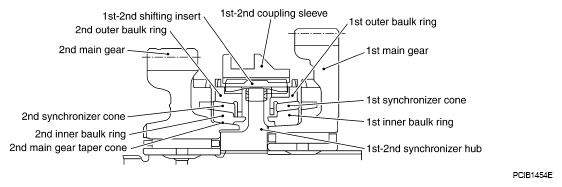

Fig 1: Triple-Cone Synchronizer Operation
G07138624Courtesy of NISSAN MOTOR CO., U.S.A.
