Removal and Installation: Notes

WARNING: This page is about a different variant/trim than selected.

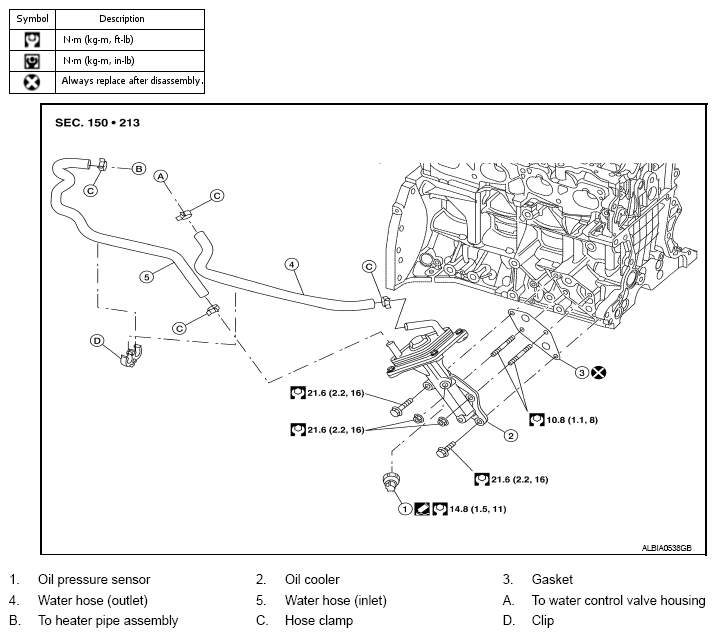

Fig 1: Exploded View Of Oil Cooler Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

WARNING: Be careful not to get burned, engine coolant and engine oil may be hot.

CAUTION:

When removing oil cooler, prepare a shop cloth to absorb any engine oil leakage or spillage.
Completely wipe off any engine oil that adheres to the engine and the vehicle.
