Section 5 (Engine Lubrication System (Qr25DE))
>>
Service Information
>>
Lubrication System
>>
Schematic
Lubrication System: Schematic
WARNING:
This page is about a different variant/trim than selected.

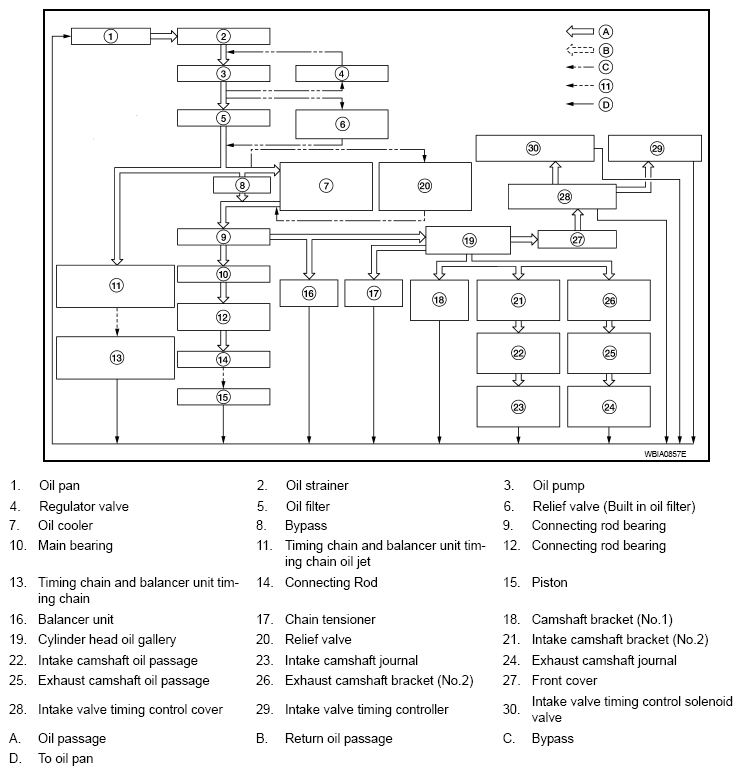

Fig 1: Lubrication System Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
