Water Pump: Component

WARNING: This page is about a different variant/trim than selected.

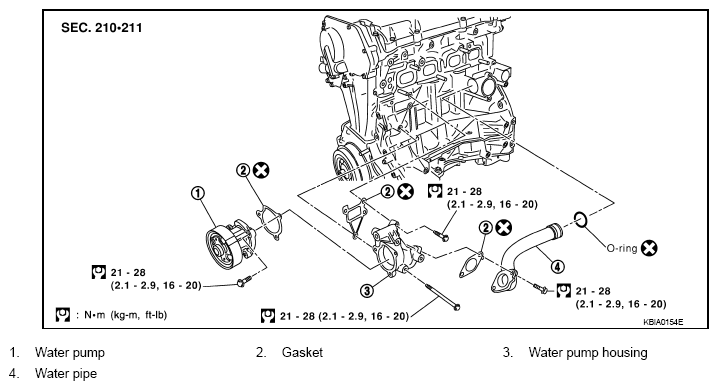

Fig 1: Exploded View Of Water Pump Components With Torque Specifications
G07137744Courtesy of NISSAN MOTOR CO., U.S.A.
