Cooling System: Schematic

WARNING: This page is about a different variant/trim than selected.

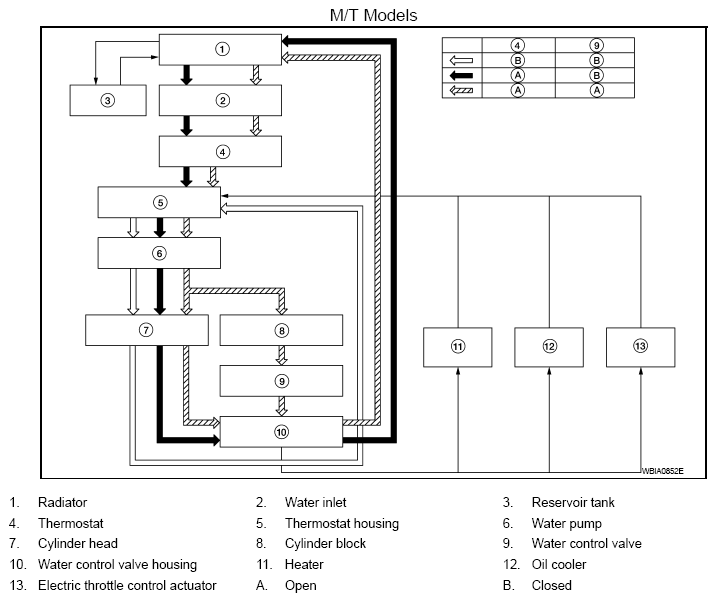

Fig 1: Cooling System Schematic Diagram - M/T Models
G07137729Courtesy of NISSAN MOTOR CO., U.S.A.

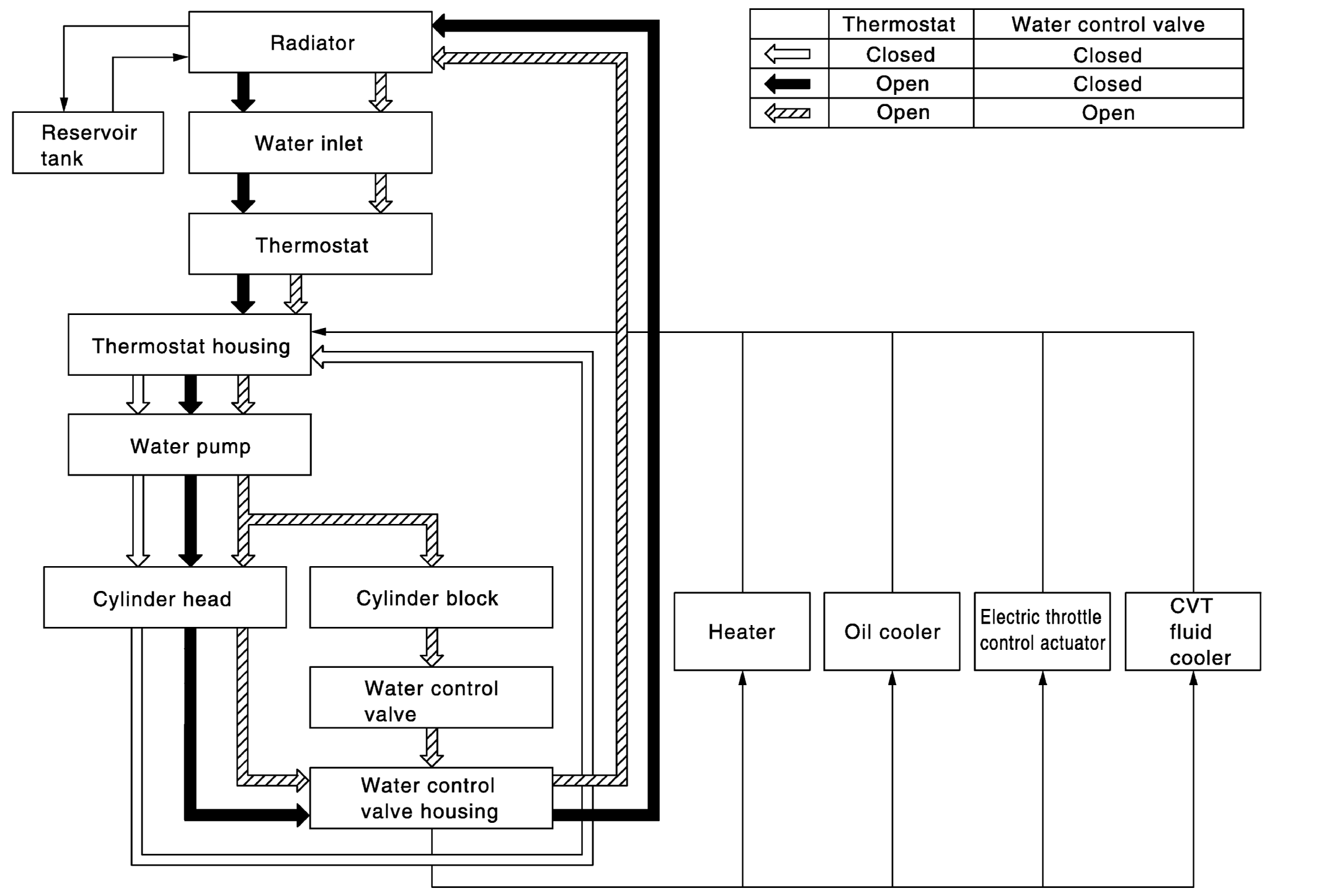

Fig 2: Cooling System Schematic Diagram - CVT Models
G05368853Courtesy of NISSAN MOTOR CO., U.S.A.
