Cooling Circuit

WARNING: This page is about a different variant/trim than selected.

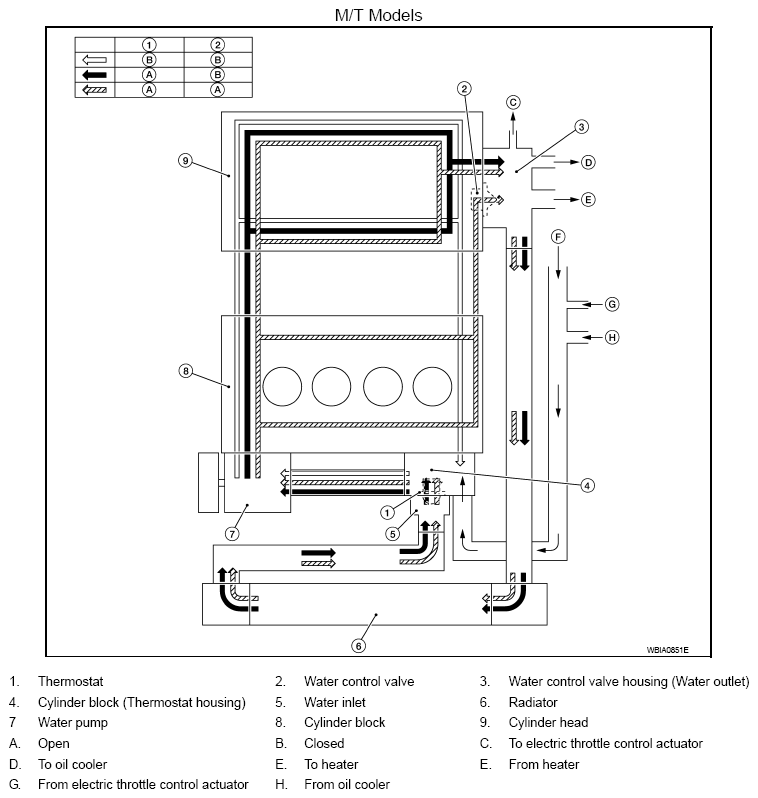

Fig 1: Cooling Circuit - M/T Models
G07137727Courtesy of NISSAN MOTOR CO., U.S.A.

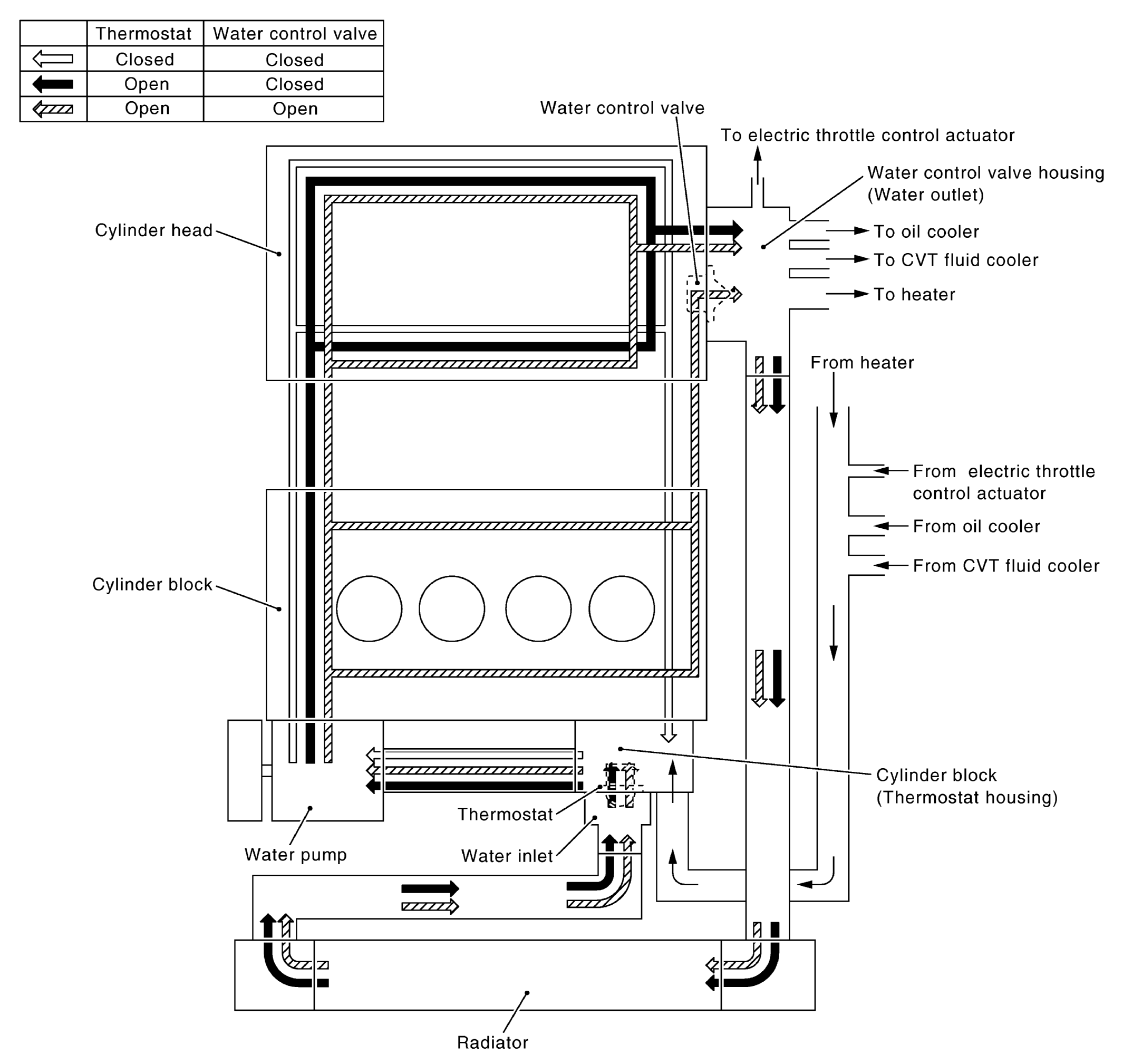

Fig 2: Cooling Circuit - CVT Models
G05368852Courtesy of NISSAN MOTOR CO., U.S.A.
