Removal and Installation: Notes

WARNING: This page is about a different variant/trim than selected.

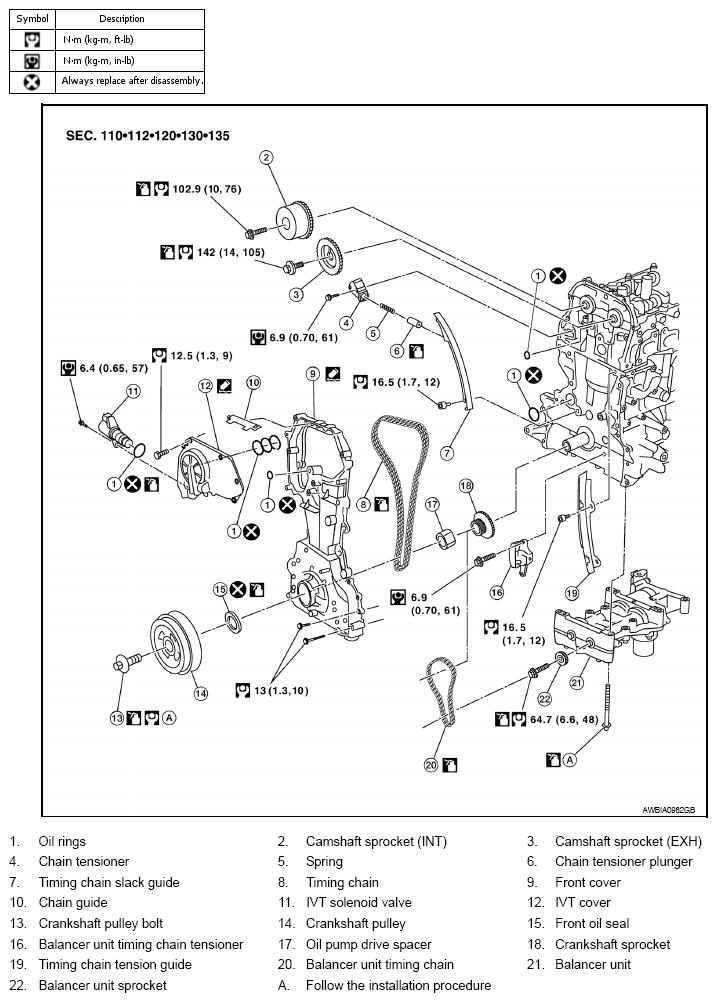

Fig 1: Exploded View Of Timing Chain With Torque Specifications
G07137494Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Apply new engine oil to parts marked in illustration before installation.
