Removal and Installation: Notes

WARNING: This page is about a different variant/trim than selected.

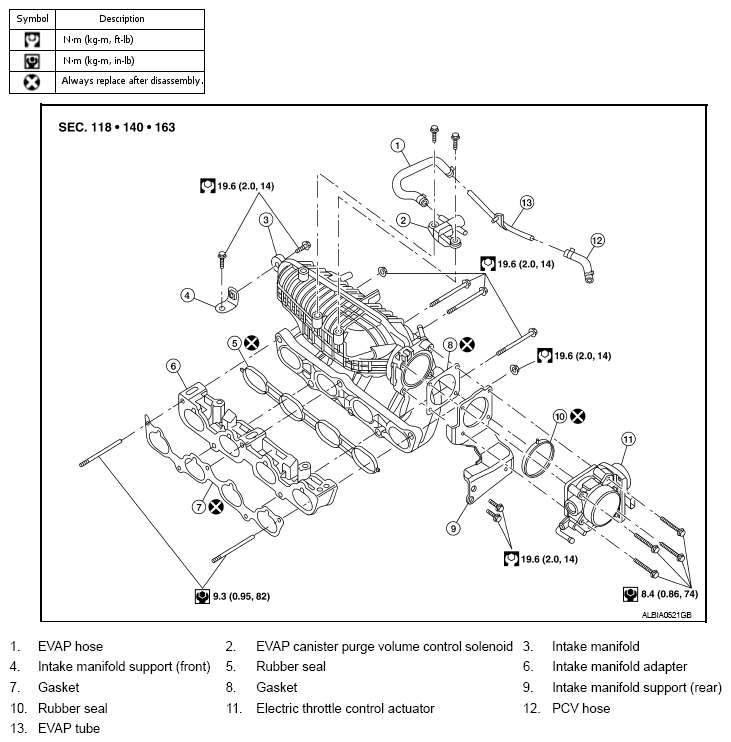

Fig 1: Exploded View Of Intake Manifold With Torque Specifications
G07137421Courtesy of NISSAN MOTOR CO., U.S.A.
