Removal and Installation: Notes

WARNING: This page is about a different variant/trim than selected.

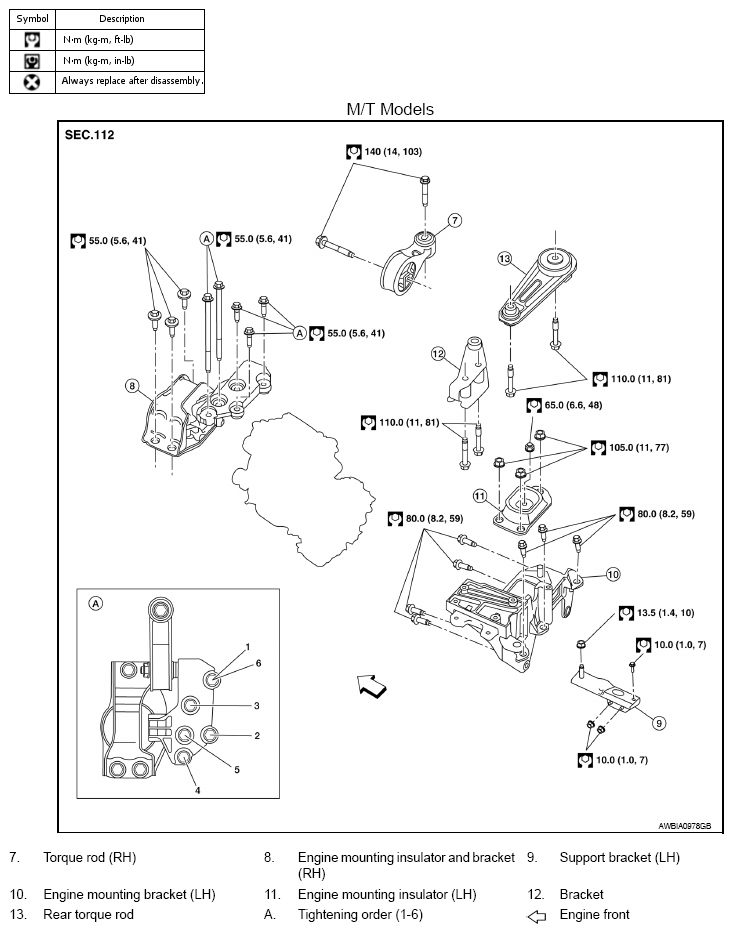

Fig 1: Exploded View Of Engine Mounts & Transmission Mounts With Torque Specifications (M/T)

Courtesy of NISSAN MOTOR CO., U.S.A.

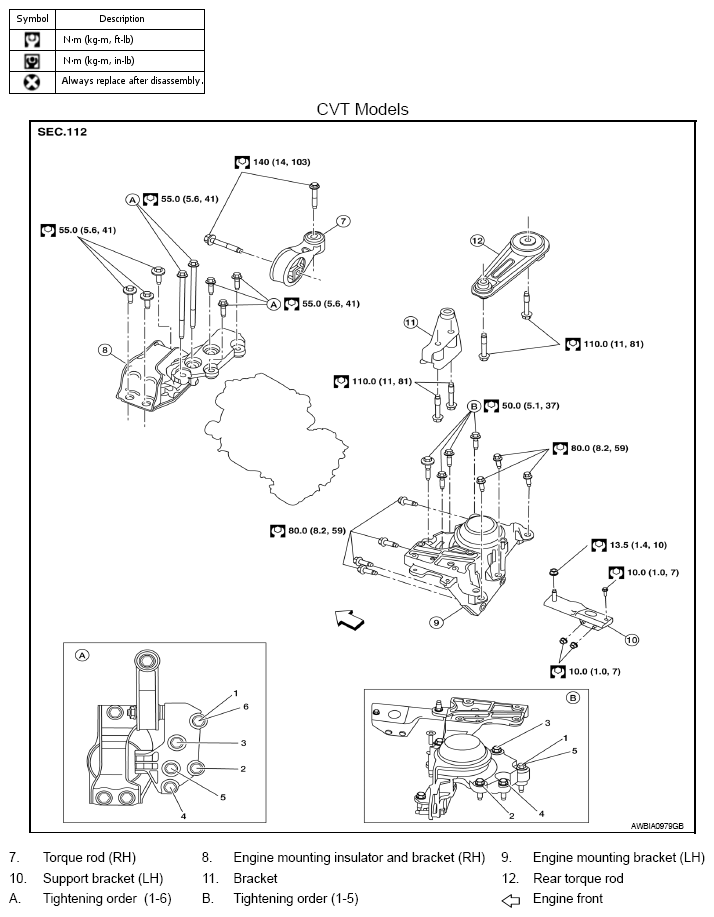

Fig 2: Exploded View Of Engine Assembly With Torque Specifications - CVT Models

Courtesy of NISSAN MOTOR CO., U.S.A.

WARNING:

Place chocks at the front and back of the rear wheels.
For engines not equipped with slingers, attach proper slingers and bolts as described in the parts catalog.

CAUTION:

Do not start working until the exhaust system and coolant are cool.
If items or work required are not covered by the engine main body information, follow the applicable procedures.
Use the correct supporting points for lifting and jacking. Refer to LIFTING POINT .
In removing the drive shaft, be careful not to damage the grease seals on the transaxle.
Before separating the engine and transaxle, remove the crankshaft position sensor (POS) from the assembly.
Be sure not to damage the edge of the crankshaft position sensor (POS) or the ring gear teeth.
